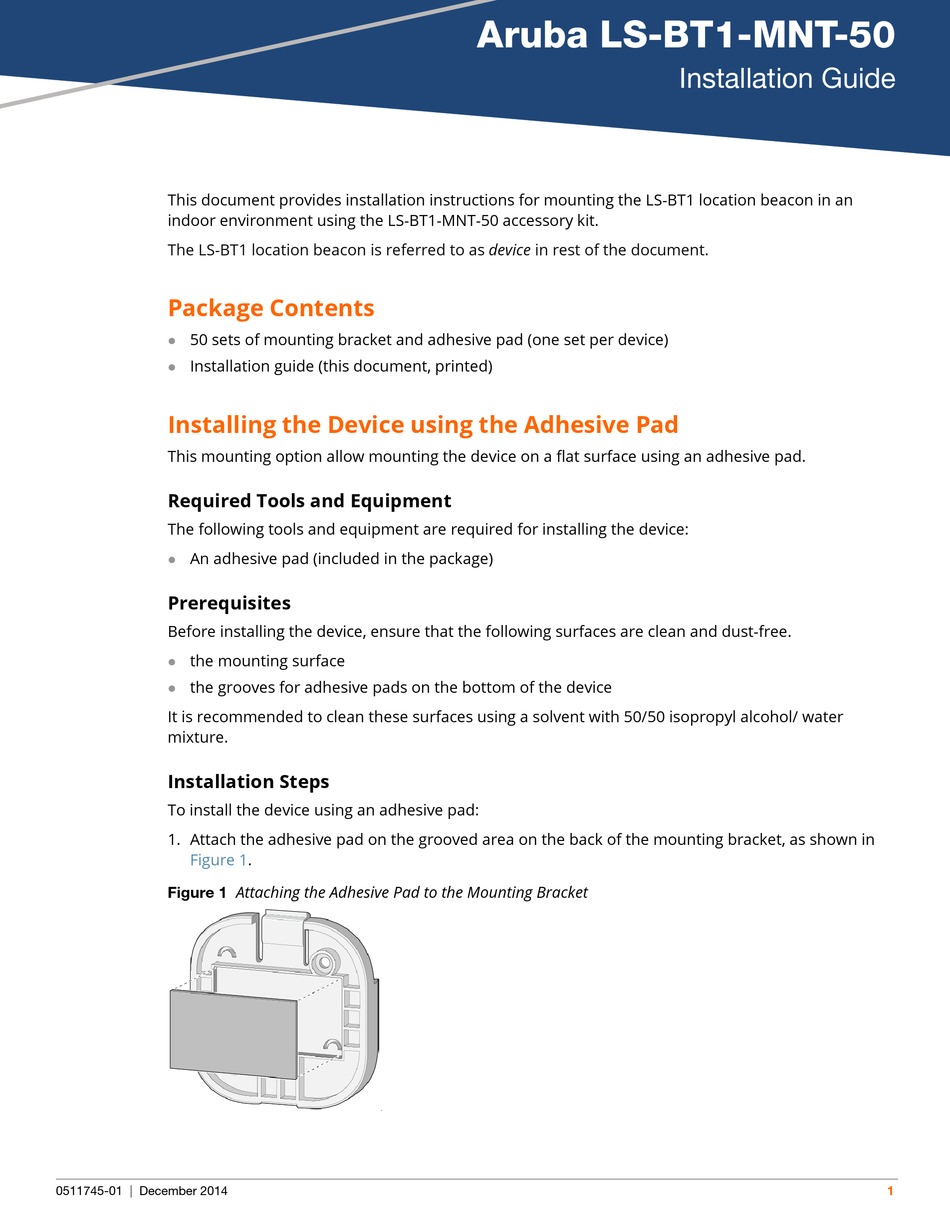

Aruba LS-BT1-MNT-50 Installation Manual

This document provides installation instructions for mounting the LS-BT1 location beacon in an
indoor environment using the LS-BT1-MNT-50 accessory kit.
The LS-BT1 location beacon is referred to as device in rest of the document.

Package Contents

50 sets of mounting bracket and adhesive pad (one set per device)

Installation guide (this document, printed)


Installing the Device using the Adhesive Pad

This mounting option allow mounting the device on a flat surface using an adhesive pad.
Required Tools And Equipment
The following tools and equipment are required for installing the device:
An adhesive pad (included in the package)


Prerequisites

Before installing the device, ensure that the following surfaces are clean and dust-free.
the mounting surface

the grooves for adhesive pads on the bottom of the device

It is recommended to clean these surfaces using a solvent with 50/50 isopropyl alcohol/ water
mixture.
Installation Steps
To install the device using an adhesive pad:
1. Attach the adhesive pad on the grooved area on the back of the mounting bracket, as shown in
Figure
Figure 1 Attaching the Adhesive Pad to the Mounting Bracket
0511745-01 | December 2014
1.
.
Aruba LS-BT1-MNT-50
Installation Guide
1
