Metra Electronics MPS-GEN01 Installation Instructions

Metra Electronics MPS-GEN01 Installation Instructions

Polaris general 2016-up

Advertisement

Quick Links

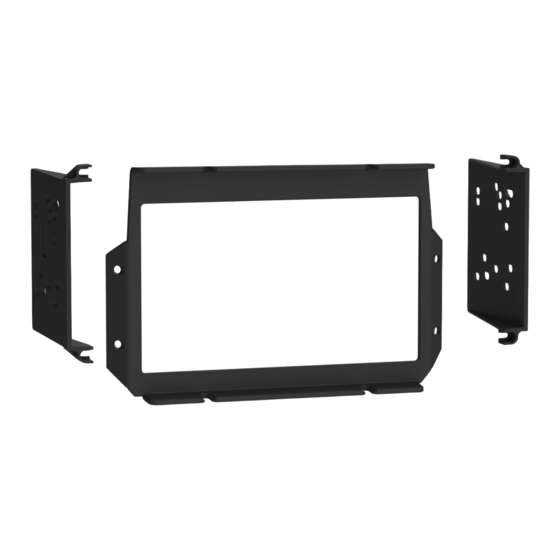

KIT COMPONENTS
• A) Radio housing • B) Radio brackets • C) Phillips screws (12)
A
Metra. The World's Best Kits.
®
Polaris General
Visit
MetraOnline.com
specific applications
KIT FEATURES
• ISO DDIN radio provision
• Replaces upper pocket
• Textured to match factory finish
B
MetraOnline.com
2016-Up
for more detailed information about the product and up-to-date vehicle
C
© COPYRIGHT 2020 METRA ELECTRONICS CORPORATION
MPS-GEN01
I N S TA L L AT I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Preparation .......................................................2
Kit Assembly ..........................................................3
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 1/8" drill bit
Attention!
Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
REV. 2/12/20 INSTMPS-GEN01

Advertisement

loading
Need help?

Need help?

Do you have a question about the MPS-GEN01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Metra Electronics MPS-GEN01

  • Page 1 When testing the aftermarket equipment, ensure that all factory equipment is connected before cycling the key to ignition. Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 2/12/20 INSTMPS-GEN01...
  • Page 2 DASH DISASSEMBLY KIT PREPARATION 1. Remove the storage pocket from the 1. Enlarge the storage pocket opening to upper dashboard. (Figure A) allow room for the aftermarket radio and mounting kit. (Figure A) Continue to Kit Preparation Continue to Kit Assembly Remove shaded area (Figure A) (Figure A) MetraOnline.com...
  • Page 3 KIT ASSEMBLY 1. Secure the radio brackets to the radio housing using (4) Phillips screws provided. (Figure A) 2. Slide the radio into the radio housing assembly, then secure using screws supplied with the radio. (Figure B) 3. Complete all necessary connections to the radio, then test the radio for proper operation.
  • Page 4 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 2/12/20 INSTMPS-GEN01...
