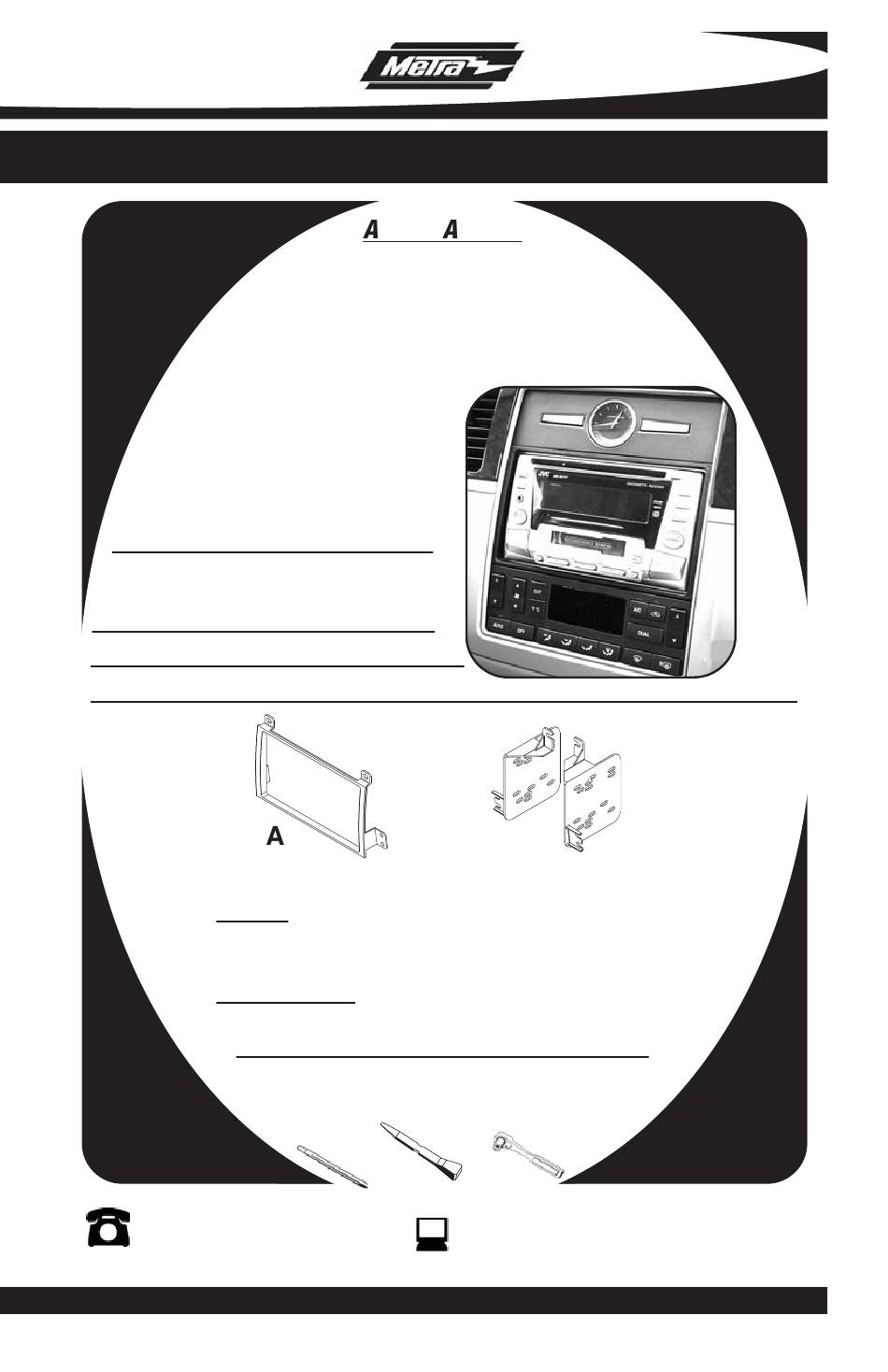

INSTALLATION INSTRUCTIONS FOR PART 95-5810
LINCOLN Town Car
95-5810
KIT FEATURES
• Double DIN Radio Provision
• Stacked ISO Mount Units Provision
KIT COMPONENTS

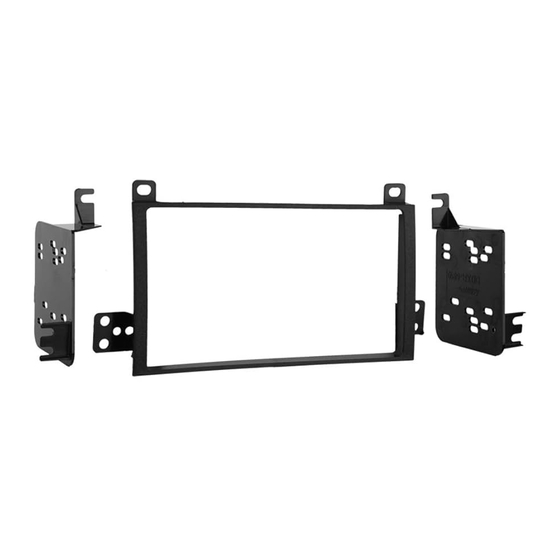

A) Double DIN Trim Plate B) Double DIN Brackets
WIRING AND ANTENNA CONNECTIONS (Sold Separately)
Harness:
• 70-5520 - Ford harness 2003-up
• 70-5521 - Ford amp harness 2003-up
Antenna Adapter:
• Not required
Small Flat Blade Screwdriver/ Panel Removal Tool
1-800-221-0932
© COPYRIGHT 2007-2009 METRA ELECTRONICS CORPORATION
PPLIC TIONS
2003-2011
B
TOOLS REQUIRED:
• Socket Set
www.metraonline.com
Advertisement
Table of Contents
Related Manuals for Metra Electronics 95-5810
Summary of Contents for Metra Electronics 95-5810
- Page 1 INSTALLATION INSTRUCTIONS FOR PART 95-5810 PPLIC TIONS LINCOLN Town Car 2003-2011 95-5810 KIT FEATURES • Double DIN Radio Provision • Stacked ISO Mount Units Provision KIT COMPONENTS A) Double DIN Trim Plate B) Double DIN Brackets WIRING AND ANTENNA CONNECTIONS (Sold Separately) Harness: •...
- Page 2 95-5810 TABLE OF CONTENTS Dash Disassembly - LINCOLN Town Car 2003-2011 ........1 Kit Assembly - Double DIN Radio Provision .
-
Page 3: Lincoln Town Car 2003-2011
95-5810 DASH DISASSEMBLY LINCOLN TOWN CAR 2003-2011 isconnect the negative battery ter- minal to prevent an accidental short circuit. Remove (2) 7mm bolts facing upward above instrument cluster/gauges. (Figure A) Carefully unsnap and remove dash panel surrounding radio and instru- ment cluster/gauges. -
Page 4: Double Din Radio Provision
95-5810 KIT ASSEMBLY DOUBLE DIN RADIO PROVISION Note: Refer also to the instructions included with the aftermarket radio. Attach the Double DIN brackets to the aftermarket radio using the screws supplied with the radio. (Figure A) Place the Double DIN trim plate over the radio face then secure the entire assembly into the sub dash. -
Page 5: Stacked Iso Mount Units Provision
95-5810 KIT ASSEMBLY STACKED ISO MOUNT UNITS PROVISION Note: Refer also to the instructions included with the aftermarket radio. Attach the Double DIN brackets to the aftermarket units using the screws supplied with the units. (Figure A) Place the Double DIN trim plate over the unit faces then secure the entire assembly into the sub dash. -
Page 6: Final Assembly
95-5810 FINAL ASSEMBLY FINAL ASSEMBLY (A) Strip wire ends back 1/2" B) Twist ends together C) Solder D) Tape Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter and making connections as shown. (Isolate and individ- ually tape off the ends of any unused wires to prevent electrical short circuit.) - Page 7 95-5810 NOTES...
