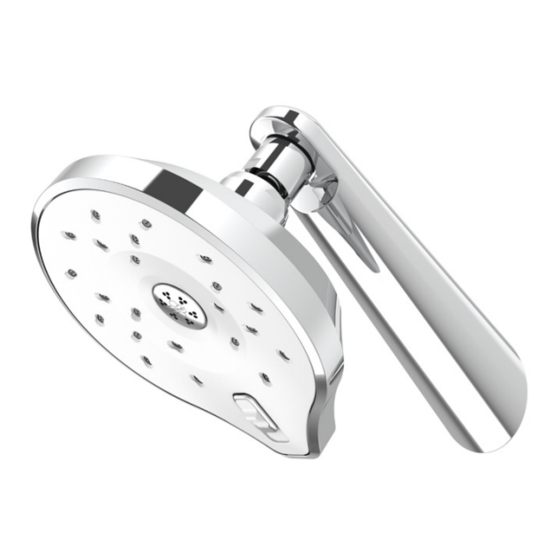

METHVEN SATINJET ESCAPE MKII Installation Instructions

METHVEN
SATINJET ESCAPE MKII
WALL SHOWER ON UPSWEPT ARM
SPECIFICATIONS
Recommended Use Domestic, hotel and commercial
Colour Chrome with satin chrome face
Chrome with white face
Pressure Rating Suitable for high pressure applications and has
been WELS certified to the following:
Minimum operating pressure 150kPa
Maximum operating pressure 500kPa
Maximum continous working temperature 70˚C
Temperature Rating
(recommended 38˚C - 42˚C)
Minimum 1˚C
Storage Tank: Yes
Suitable Hot Water
Units
Continous Flow: Yes
Gravity Feed: Not recommended
WELS Stars: 3
Flow rate: 9L/min
Standards AS/NZS 3662
Spray Patterns Standard Satinjet; Massage
CLEANING RECOMMENDATIONS
This bathroom product should not be cleaned with abrasive materials eg.
steel wool/scourers. Do not use any corrosive or abrasive cleaning agents
containing acids or scouring agents. Bleaches can also discolour products
and therefore should not be used. Damage caused by any improper
treatment is not covered by the product warranty- refer to Warranty
Conditions on the last page.
Disclaimer: Products in this specification manual must by regulation be installed by licensed and registered
trade people. The manufacturer/distributor reserves the right to vary specifications or delete models from
their range without prior notification. Dimensions are nominal measurements only. Dimensions and set-outs
listed are correct at time of publication however the manufacturer/distributor takes no responsibility for
AS3662
printing errors.
WMKT21090
Tech Page Version 1
218
To see the full METHVEN range at Reece go to
www.reece.com.au/bathrooms
page 1 of 3
