Important Notes


Refer to the disclaimer section for terms and conditions governing the use of the Time Machine
II and devices programmed on the Time Machine II.

After programming, place samples into an antistatic bag clearly marked "Engineering Samples."

Samples can only be programmed using specific field programmable (FP) parts for a given
oscillator family. See the
order FP parts.

Please contact your

The Time Machine II has not been tested for EMC compliance, EMI radiation susceptibility, or
any temperature and humidity cycling. The recommended temperature range is 20°C to 35°C.
3

Time Machine II Kit Contents

The Time Machine II kit contains the following items:
1. SiTime programmer (1 pc)
2. Socket cards:
The Time Machine II comes with three different socket cards. Each adapter board includes two
or more sockets for connecting devices in different packages to the main unit for programming.
It is possible to remove and insert devices in the socket while the board is connected to the
SiTime Programmer.
3. USB cable (1 pc)
4. Quick start guide (Download)
5. Samples kit with several devices
(The enclosed device types may vary; please
6. Tweezers for handling small devices
TMII UM Rev. 2.12
FP Oscillator datasheet
SiTime sales representative

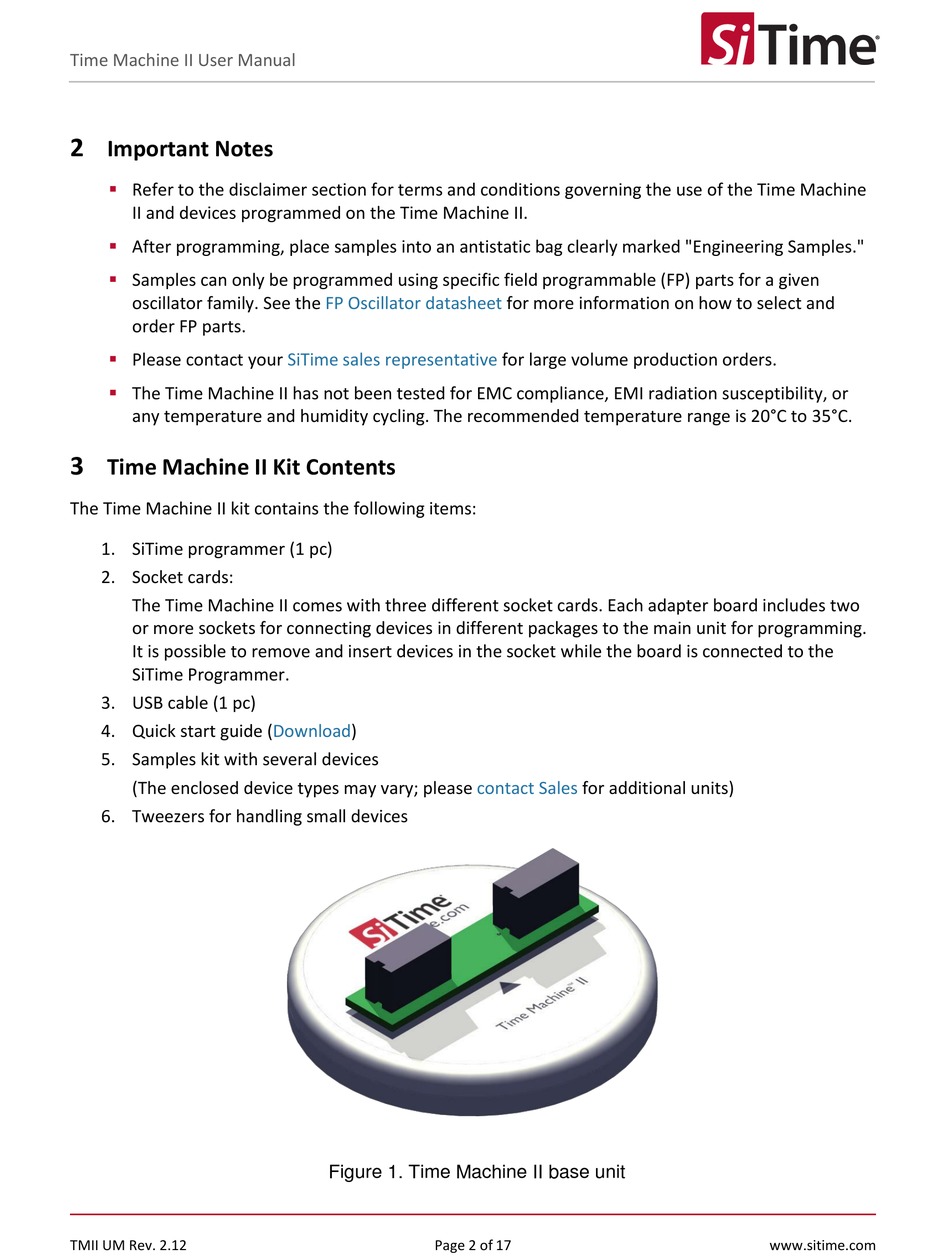

Figure 1. Time Machine II base unit
Page 2 of 17
for more information on how to select and
for large volume production orders.
contact Sales for additional units)
