4

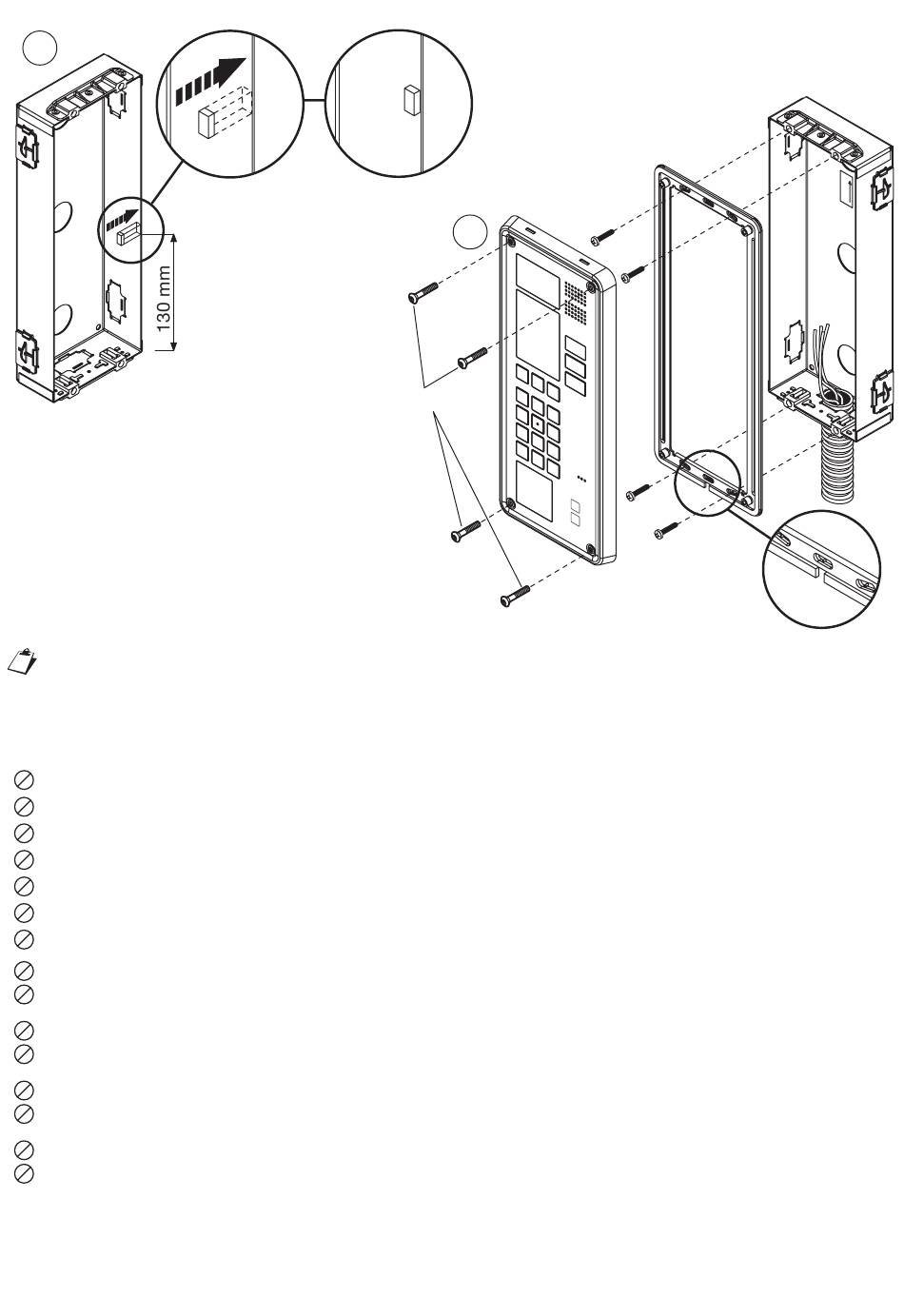

The highlighted part of the magnet must face the wall of the box (in contact with the two-sided
adhesive tape).

2.1 DESCRIPTION OF TERMINALS

C Common lock relay contact
NC Normally closed lock relay contact
NO Normally open lock relay contact
}
SE-
Discharge lock terminals
SE+
}
V+
Auxiliary power terminals
V-
]
PA Hall button terminals for operating lock relay
]
SP Open door sensor terminals
]
SE2 Garage gate contact terminals (NO)
]
AD Auxiliary power terminals
LAN Ethernet connector for LAN RJ45
READER Connector for integrated transponder key device
DS1060-119A
TAMPER
Antitheft special screw
5
Screw M4 x 20
}
Simultaneous activation
A L T
O
T O
P
H A
U T
7
