Sunny SF-E3803 User Manual
  1. Manuals
  2. Brands
  3. Sunny Manuals
  4. Elliptical Trainer
  5. SF-E3803
  6. User manual

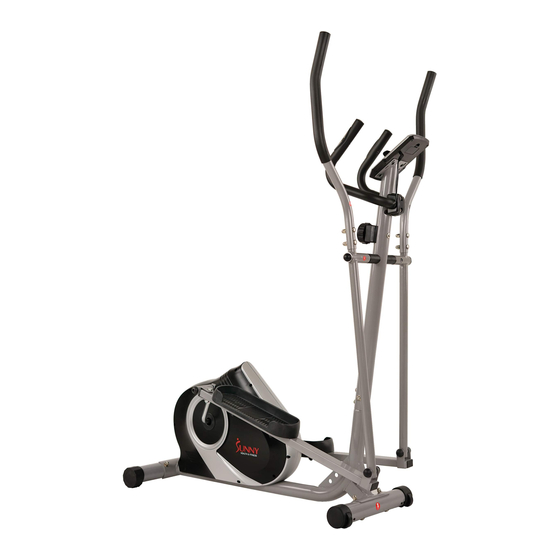

Sunny SF-E3803 User Manual

Ozone magnetic elliptical
Hide thumbs
Table of Contents

Advertisement

Quick Links

OZONE MAGNETIC ELLIPTICAL
SF-E3803
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF-E3803 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sunny SF-E3803

Summary of Contents for Sunny SF-E3803

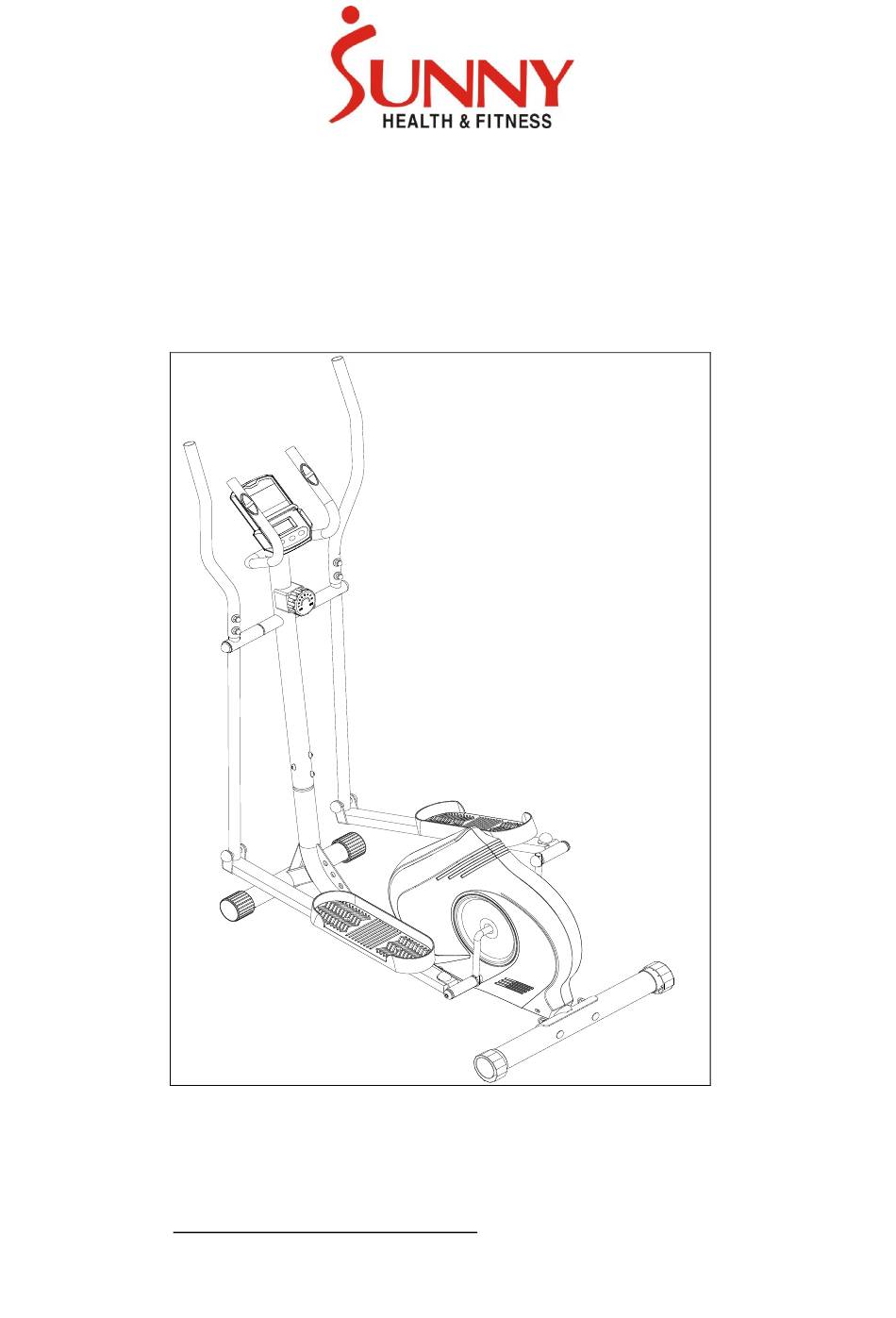

  • Page 1 OZONE MAGNETIC ELLIPTICAL SF-E3803 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly.

  • Page 3: Exploded Diagram

    EXPLODED DIAGRAM 1 58 23 48 47 52 51R 49L 50...
  • Page 4 EXPLODED DIAGRAM 2...

  • Page 5: Parts List

    PARTS LIST Description Spec. Qty. Description Spec. Qty. Computer Bolt M10*50 Link Wire of 1/2” 46L/R Pedal Bolt (L/R) Computer Screw M5*10 Wave Washer Φ25 Φ24*20*Φ16.1 Pulse Bushing Middle Handlebar 49L/R U Bracket (L/R) 1/2’’ Screw ST4.2*19 Spring Washer Φ25 1/2’’...

  • Page 6: Hardware Package

    Description Spec. Qty. Description Spec. Qty. U Stopper Shipping Tube End Cap Spanner S13-14-15 Sensor Socket Allen Wrench M10*3 Allen Wrench Bolt M6*36 Spanner S17-19 Hexagon Bolt M6*36 HARDWARE PACKAGE #26 M8*16 4PCS #33 M8*72 4PCS #23 M8 8PCS #47 d17 2PCS #9 d8 2PCS # 50 1/2"...
  • Page 7 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 1: Unscrew the 4 Carriage Bolts (No. 33) with Spanner (No. A) and remove the 4 Domed Nuts (No.
  • Page 8 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 3: #26 M8*16 4PCS Connect Trunk Wire (No. 16) and Sensor Wire #22 d8*Φ20*2*R30 4PCS (No.
  • Page 9 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 4: #43 M10*45 4PCS #32 M10 4PCS #18 M8*20 2PCS #9 d8 2PCS Remove the pre-assembled 2 Hexagon Bolts #19 d8*Φ32*2 2PCS...
  • Page 10 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 5: M8*40 4PCS #58 d8*Φ20*1.5*R16 4PCS Attach Middle Handlebar (No. 4) to Upright 4PCS #8 M8*30 2PCS Post (No.
  • Page 11 ADJUSTMENTS & USAGE GUIDE ADJUSTING THE BALANCE To achieve a smooth and comfortable ride, you must ensure that the stability of the elliptical is secured. If you notice that the elliptical is unbalanced during use, adjust the End Caps (No. 37) located on the rear stabilizer until the elliptical becomes level with the floor surface.

  • Page 12: Troubleshooting

    TROUBLESHOOTING PROBLEM SOLUTION Remove the computer and verify the wire that comes from the computer is properly connected to the wire that comes from the upright post. There is no display on the computer. Check if the batteries are correctly positioned and battery springs are in proper contact with batteries.

  • Page 13: Exercise Computer

    EXERCISE COMPUTER FUNCTION BUTTONS: MODE: Press the button to select TIME, DISTANCE, and CAL to preset. Press the button for selection function display value on LCD or enter after setting. Press the button and hold for 3 seconds to reset all value except odometer to zero.
  • Page 14 7. CALORIES: Accumulates calories burned during training from 0 to 9999. The user may also preset the target calorie before training by pressing the SET & MODE button. Each setting increase is 1 cal. Automatically counts down from targeting value during exercise. Note : This data is a rough guide which cannot be used in medical treatment.

Table of Contents
