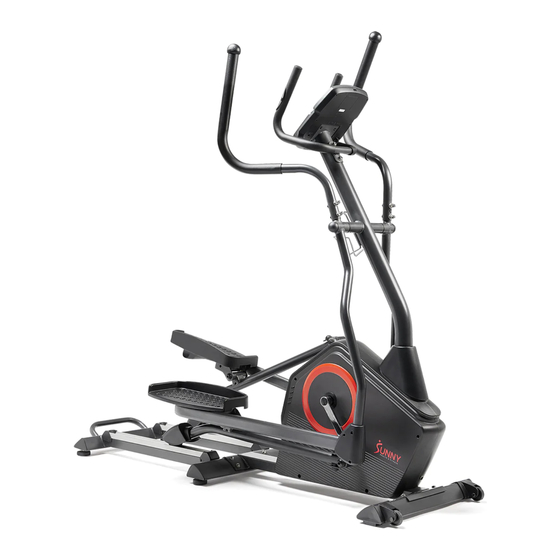

SMART ELLIPTICAL MACHINE
SF-E3889 SMART
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF-E3889 SMART and is the answer not in the manual?

Questions and answers

Related Manuals for Sunny SF-E3889 SMART

Summary of Contents for Sunny SF-E3889 SMART

  • Page 1 SMART ELLIPTICAL MACHINE SF-E3889 SMART USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly.

  • Page 3: Pre-Assembly Check List

    PRE-ASSEMBLY CHECK LIST Before you start to assemble, please make sure all parts are included.

  • Page 4: Hardware Package

    Description Spec. Qty. Description Spec. Qty. Cover for Left Swing Main Frame 51L/R 1 PR. Handlebar Post Roller Cover Rail Frame 54L/R Pedal 1 PR. Front Stabilizer Nut Cap 5L/R Swing Bar 1 PR. Meter Fixed Handlebar Adaptor Cover for Right 9L/R Pedal Arm 1 PR.

  • Page 5: Assembly Instruction

    ASSEMBLY INSTRUCTION We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 1: Remove the 2 Shipping Tubes (No. D), 8 Allen Bolts (No. 15), 8 Flat Washers (No.
  • Page 6 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 2: Remove 6 Allen Bolts (No. 15), 6 Spring Washers (No. 36) and 6 Arc Washers (No.
  • Page 7 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 3: Remove 2 Hex Bolts (No. 17), 2 Spring Washers (No. 36), 2 Flat Washers (No.
  • Page 8 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 4: Attach the 2 Pedal Arms (No. 9L/R) to 2 Roller Arms (No. 7) with 2 Pedal Hinge Bolts (No.
  • Page 9 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 5: Attach the 2 Handlebars (No. 11L/R) to 2 Swing Bars (No. 5L/R) respectively with 4 Carriage Bolts (No. 12), 4 Arc Washers (No.
  • Page 10 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 6: Remove 4 Phillips Screws (No. 74) from the Meter (No. 68) by Spanner (No. 116).

  • Page 11: Adjustment Guide

    ADJUSTMENT GUIDE HOW TO MOVE THE ELLIPTICAL There are transportation wheels located on the Front End Caps (No. 56L/R). Hold the Handlebar (No. E) of the Rail Frame (No. 3) and pull forward to lift the rear of the elliptical off the floor.
  • Page 12 IMPORTANT ELLIPTICAL INFORMATION WARNING: This elliptical requires a power source of 1 amp (100-240V) in order to properly operate. For your safety, as well as the safety of others, please verify that the power source is correct before plugging in the equipment. Any power source above or below this level could cause significant damage to the equipment and or user.

  • Page 13: Workout Parameters

    TIME: Accumulates the workout time from 0:00 to 99:59. Users can preset the target time they want. DIST (DISTANCE): Accumulates the workout distance from 0.00 to 999.9 Miles. Users can preset the target distance they want to reach. ODO (ODOMETER): Displays the total accumulated distance from 0 to 9999 Miles. CAL (CALORIES): Accumulates the calories burned from 0 to 9999.
  • Page 14 1..When display is set as 0.00, CALORIES will count up. 2. When CALORIES is set as 0.00~9995 0.00 ± 5.00 (CALORIES) 5.00~9995, it will count down to 0.00. User can set watt value only in WATT 50~250 ±5 the Watt Control Program. Target HR will be based on Age.
  • Page 15 There are 12 pre-set programs ready for use. All program profiles have 16 levels of resistance. SETTING PARAMETERS FOR PRE- SET PROGRAMS 1. Select one of the Pre-set Programs using the UP or DOWN button, then press ENTER button. TIME will flash so the value can be adjusted using the UP or DOWN key. 2.
  • Page 16 3. Press ENTER button to save the value and move to the next parameter to be adjusted. NOTE: If you set up the target time for workout, then the next parameter of DISTANCE cannot be adjusted. 4. Continue through all desired parameters, pressing the START/STOP button to start the workout. NOTE: Once the workout parameters count down to zero, it will beep and stop the workout automatically.
  • Page 17 TARGET HEART RATE PROGRAM (P16) Program Profile SETTING PARAMETERS FOR TARGET HEART RATE PROGRAM 1. Select TARGET HR (P16) using the UP or DOWN button, then press ENTER button. 2. TIME will flash. The value can be adjusted using the UP or DOWN button. 3.

  • Page 18: User Program

    USER PROGRAM Program Profile (P21-P24) The 4 user programs allow the user to set their own program that can be used immediately. SETTING PARAMETERS FOR USER PROGRAM 1. Select the User Program using the UP or DOWN button then press ENTER button. 2.

  • Page 19: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CHECK SOLUTION Plug in the cables again Check if all the cables are and power on, then well plugged in or check if The motor couldn’t find press MODE the pins on the cables are E1-1 ENTER buttons at the its start point.
  • Page 20 EXPLODED DIAGRAM 1...

  • Page 21: Exploded Diagram

    EXPLODED DIAGRAM 2...

  • Page 22: Parts List

    PARTS LIST Description Spec. Qty. Description Spec. Qty. D12×Φ24 Main Frame Flat Washer Φ20×D8.5×R25 Handlebar Post Arc Washer Rail Frame Spring Washer Front Stabilizer Bearing 6900ZZ 5L/R Swing Bar 1 PR. Roller Axle Φ18×Φ10x11 Fixed Handlebar Alloy Bushing Roller Arm Roller Spacer Roller Arm Joint Bottle Holder...
  • Page 23 Description Spec. Qty. Description Spec. Qty. Φ28×Φ16.4x16 Plastic Bushing Crank Cap Meter Pivot Bolt Φ18×Φ2.8×L114 Meter Wire A Tension Spring Sensor Extension Wire Hex Nut Sensor Extension Wire Hex Bolt M5×60 Adaptor Belt Pulley Pulse Wire Spring Washer Wave Washer Nylon Nut Phillips Screw M5×10...
