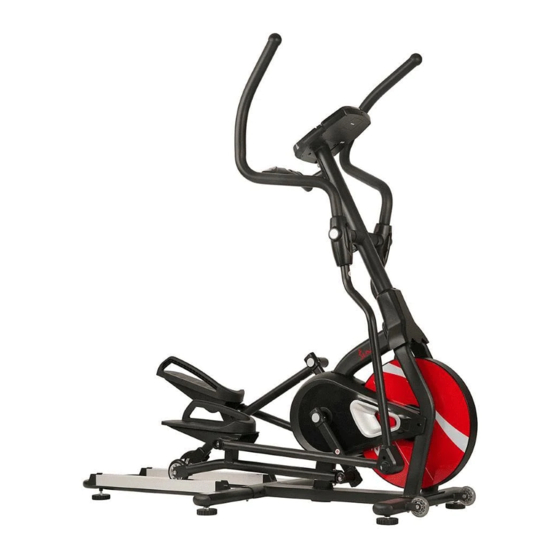

STRIDE ZONE ELLIPTICAL
SF-E3865
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US:
support@sunnyhealthfitness.com
or 1- 877 - 90SUNNY (877-907-8669).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF-E3865 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sunny SF-E3865

Summary of Contents for Sunny SF-E3865

  • Page 1 STRIDE ZONE ELLIPTICAL SF-E3865 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly.

  • Page 3: Exploded Diagram

    EXPLODED DIAGRAM...

  • Page 4: Hardware Package

    HARDWARE PACKAGE #61 4PCS #76 M8*55 4PCS #80 M8*18 6PCS #82 M8*45 4PCS #84 M10*70 2PCS #85 M6*20 4PCS #93 Φ8*Φ21*2.0T 4PCS #90 ST4.5*15 6PCS #94 Φ6*Φ14*1.0T 8PCS #95 Φ8*Φ16*1.5T 4PCS #96 Φ8*Φ25*2.0T 2PCS #97 Φ10*Φ19*1.5T 2PCS #98 Φ19.5*Φ38*2.0T 2PCS #100 Φ19*Φ23*0.2T 2PCS #118 Φ16.2*Φ25*0.5T #111 M10 2PCS...

  • Page 5: Parts List

    PARTS LIST Description Spec. Qty. Description Spec. Qty. Main Frame Bottom Cable 700mml Upright Tube Motor TL-005 Fixed T Handle Sensor 100mml Left Upper DC Cable 700mml Swing Bar Right Upper Adapter Swing Bar Left Lower Sensor Fixture Swing Bar Right Lower Motor Wire 150mml...
  • Page 6 Description Spec. Qty. Description Spec. Screw M5*20 Axle Side Cover Φ8*Φ20*2.0T Φ8*Φ21*2.0T Plastic Washer Washer Φ6*Φ14*1.0T Seal Ring Ø60 Washer Φ8*Φ16*1.5T Seal Ring Oval 40*80 Washer Φ8*Φ25*2.0T Crank Seal Ring Washer Φ10*Φ19*1.5T Wire Plug Ø17 Washer Φ19.5*Φ38*2.0 Adjustable M10*25 Washer Stand Φ19.5*Φ25*0.5 PU Wheel...

  • Page 7: Assembly Instructions

    ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877- 90SUNNY (877-907-8669). STEP 1: -#76 M8*55 2PCS -#95 Φ8*Φ16*1.5T 2PCS -#C S13 S14 S15 1PC Note: We recommend having two people to do the assembly.
  • Page 8 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877- 90SUNNY (877-907-8669). STEP 3: -#78 M8*15 8PCS -#103 Ø8 8PCS Remove 8 Hex Socket Bolts (No. 78), 8 Spring -#102 Φ8*Φ21*2.0T 8PCS...
  • Page 9 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877- 90SUNNY (877-907-8669). STEP 5: -#82 M8*45 4PCS -#A S5 1PC -#110 M8 4PCS Attach the Left Upper Swing Bar (No. 4L) to the Left Lower Swing Bar (No.
  • Page 10 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877- 90SUNNY (877-907-8669) STEP 7: -#94 Φ6*Φ14*1.0T 8PCS -#85 M6*20 4PCS Note: There are 4 holes on each of the Left &...
  • Page 11 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877- 90SUNNY (877-907-8669) STEP 9: -#100 Φ19*Φ23*0.2T 2PCS -#80 M8*18 2PCS -#A S5 2PCS Note: Please lubricate the Pedal Tube Axles -#96 Φ8*Φ25*2.0T 2PCS...
  • Page 12 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877- 90SUNNY (877-907-8669) STEP 11: -#90 ST4.5*15 2PCS Attach the Lower Swing Bar Covers (No. -#B S10 S14 S17 1PC 43A &...
  • Page 13 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877- 90SUNNY (877-907-8669) STEP 13: -#92 M5*20 2PCS -#B S10 S14 S17 1PC Remove 2 Screws (No. 92) from the Upright Tube (No.
  • Page 14 ADJUSTMENTS GUIDE HOW TO MOVE THE ELLIPTICAL The PU Wheels (No. 68) on the Front Stabilizer (No. 10) are movable. Hold the Rear Stabilizer (No. 9) and pull forward to lift the rear of the elliptical off the floor. Now you can move the elliptical.

  • Page 15: Display Console

    DISPLAY CONSOLE KEY FUNCTIONS: START/STOP: 1. Start & Pause workouts. 2. Start body fat measurement. 3. Holding the button for 3 seconds will reset all function values to zero. DOWN: Decrease value of the selected workout parameter: TIME, DISTANCE, etc. During the workout, it will decrease the resistance load.

  • Page 16: Workout Parameters

    FUNCTIONS: SPEED: Displays current training speed. Maximum speed is 99.9 mile/h. RPM: Displays current rotations per minute. TIME: Accumulates the workout time from 00:00 to 99:59. Users can preset the target time they desire. DIST: Accumulates the workout distance from 0.00 up to 999.9 miles. Users can preset the target distance they want to reach.

  • Page 17: Program Operation

    More About Workout Parameters Default Increment/Decr Field Setting Range Description Value ement 1. When display is 0:00, Time will count up. 2. When time is 1:00-99:00, It will count Time 0:00~ 99:00 00:00 ± 1:00 down to 0. 1. When display is 0.0, Distance will count ±1.0 Distance 0.00~999.0...
  • Page 18 Pre-programs (P2~P13) Program profile There are 12 program profiles ready for use. All program profiles have 16 levels of resistance. Setting Parameters for Pre-programs Select one of the pre-programs using the UP or DOWN button, then press ENTER. The first parameter “TIME”...
  • Page 19 Workout in any pre-program The user can exercise with different levels that load in different intervals. The user may exercise in any level of resistance by adjusting the UP or DOWN button during the workout. Note: If the user sets up the target time to workout, then the next parameter of Distance cannot be adjusted.
  • Page 20 Body Types There are 9 body types divided according to the FAT % calculated. Type 1 is from 5% to 9%. Type 2 is from 10% to 14%. Type 3 is from 15% to 19%. Type 4 is from 20% to 24%. Type 5 is from 25% to 29%.
  • Page 21 Setting Parameters for HEART RATE CONTROL Select one of the “Heart Rate Control Programs” using the UP or DOWN button, then press ENTER. The first parameter “TIME” will flash so the value can be adjusted usingthe UP or DOWN button. Press the ENTER button to save the value and move to next parameter to be adjusted. Note: If the user sets up the target time to workout, then the next parameter of Distance cannot be adjusted.

  • Page 22: Troubleshooting

    TROUBLESHOOTING PROBLEM: The equipment is unstable when in use. SOLUTION: Turn the adjustable stands under the front and rear stabilizer to align evenly in accordance with the floor level. PROBLEM: There is no display on the console. SOLUTION: Remove the console and upright tube and reconnect the cables. PROBLEM: There is no heart rate reading or there is an inconsistent reading.

  • Page 23: Cleaning And Maintenance

    MAINTENANCE CLEANING AND MAINTENANCE: The elliptical can be cleaned with a soft cloth and mild detergent. Do not use abrasives or solvents on plastic parts. Please wipe your perspiration off the elliptical after each use. Be careful not get excessive moisture on the computer display panel, as this may cause electrical hazards or cause electronics to fail.
