Release the operator
ⓒ

ELECTRICAL CONNECTIONS

⚠ Before powering up the board, cut off the mains power supply.
Power supply (V - 50/60 Hz): 230 AC
Board functions:
• Movement control and obstacle detection
• Reopen during closing
• Adjustable automatic reclosing time
• Open-stop-close-stop from transmitter and/or from button
• Courtesy light (at each opening command, the courtesy light stays on for three minutes)
LIGHTS
LED courtesy (W)
Release

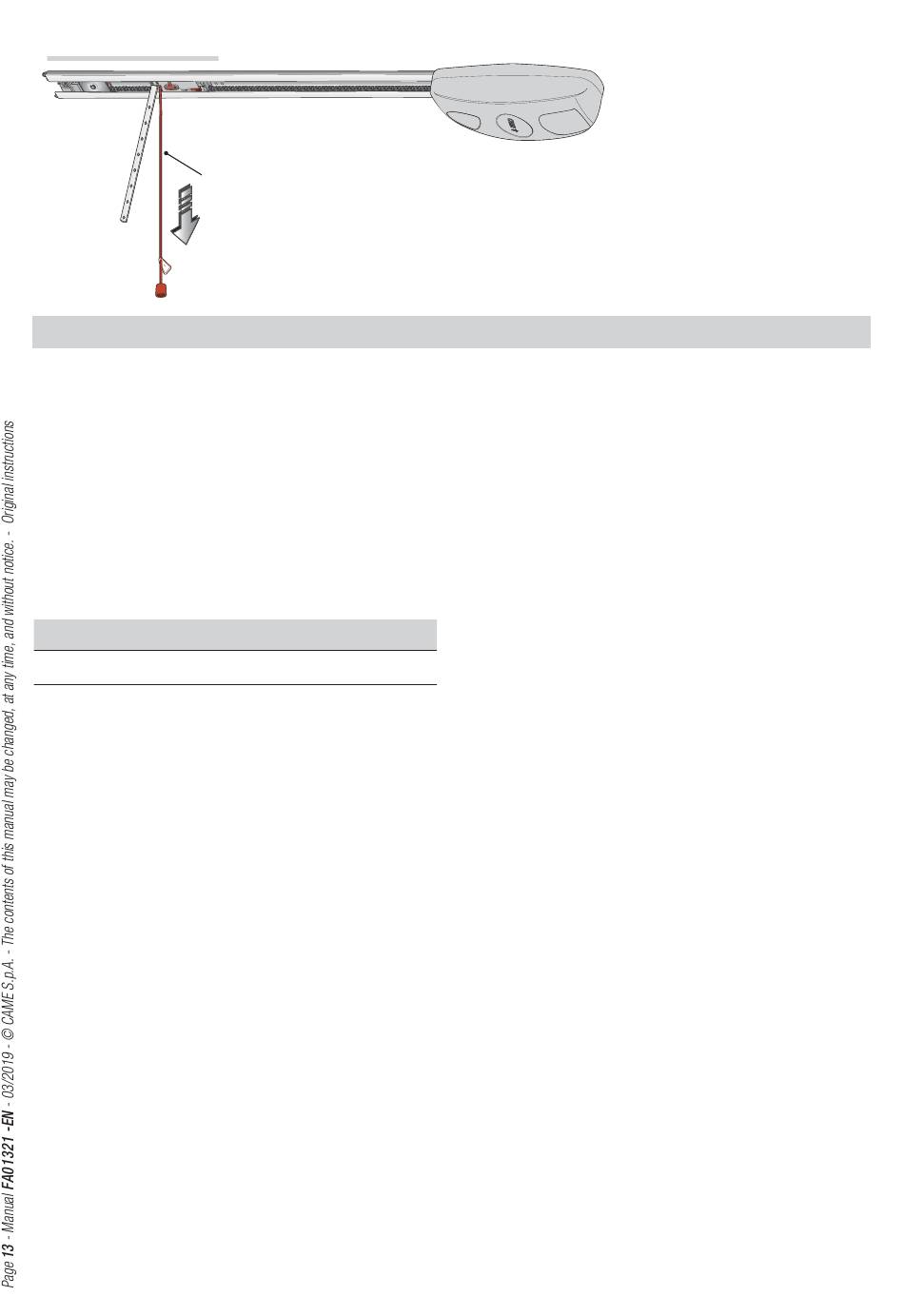

To release the operator, pull down the cord ⓒ.
Locking
To lock the operator back up, use the transmitter or the control button.
