EUPHONY 3
USER'S MANUAL rel. 1.0 GB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EUPHONY 3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DTS EUPHONY 3

Summary of Contents for DTS EUPHONY 3

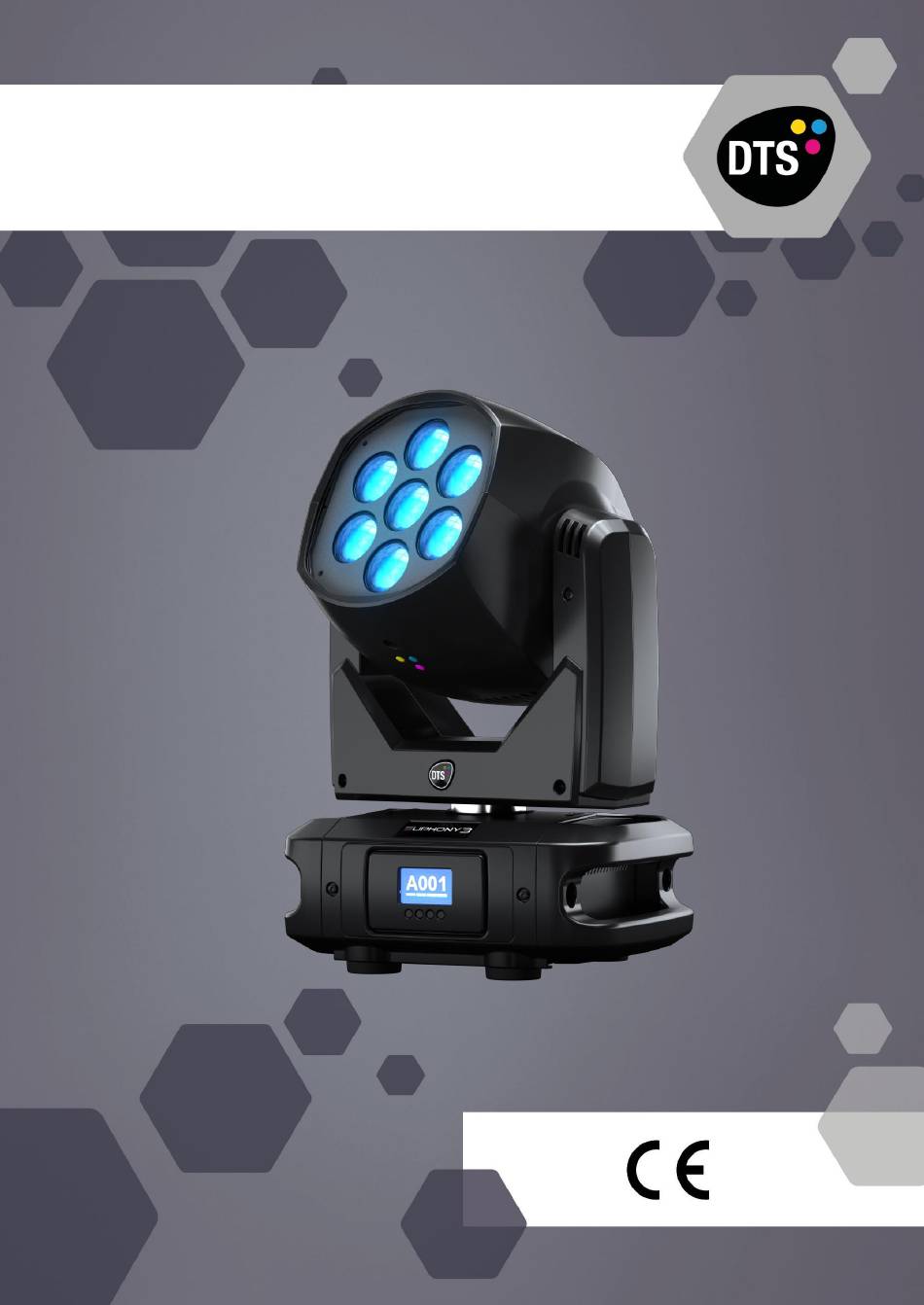

  • Page 1 EUPHONY 3 USER’S MANUAL rel. 1.0 GB...
  • Page 2 Le informazioni contenute in questo documento sono state attentamente redatte e controllate. Tuttavia non è assunta alcuna responsabilità per eventuali inesattezze. Tutti i diritti sono riservati e questo documento non può essere copiato, fotocopiato, riprodotto per intero o in parte senza previo consenso scritto della D.T.S . D.T.S.

  • Page 3: Table Of Contents

    INDEX: 1 - SYMBOLS ........................ 4 2 - GENERAL WARNING ..................... 5 3 - GENERAL WARRANTY CONDITIONS ..............5 4 - TECHNICAL FEATURES ..................5 5 - ACCESSORIES ....................... 7 6 - IMPORTANT SAFETY INFORMATION ..............8 6.1 Fire prevention...................... 8 6.2 Prevention of electric shock ..................

  • Page 4: Symbols

    1- SYMBOLS Graphic symbols used on this manual: THIS SYMBOL INDICATES A HOT SURFACE THIS SYMBOL INDICATES ELECTRIC SHOCK RISK THIS SYMBOL INDICATES GENERAL RISK THIS SYMBOL MEANS “SUITABLE FOR INDOOR USE ONLY” THIS SYMBOL INDICATES THE MAXIMUM OPERATING AMBIENT TEMPERATURE THIS SYMBOL INDICATES THE MINIMUM DISTANCE FROM THE OBJECTS AND THE PEOPLE LIT BY THE LIGHT BEAM...

  • Page 5: General Warning

    The warranty covers defects in materials and workmanship. The warranty is not appliable where a defect is caused by misuse or unauthorised repair of the product. Any functional or/and physical modification of the product is not allowed. 4- TECHNICAL FEATURES DTS Product Code: 03.LDR020.F EUPHONY 3 OUTPUT •...
  • Page 6 • RDM/DMX 512 protocols • Wireless DMX available on request • ‘Standard’ and ‘Silent’ operation modes • Internal operating system updatable via DTS dongle firmware uploader • Li-Fe backup battery for controlling the display settings even when the unit is not powered •...

  • Page 7: Accessories

    (indicated for any kind of loads vertical / horizontal) • Professional Quick trigger clamp (Max load 100 Kg) (code 0521A037) (not indicated for horizontal load) • Safety cable 3 x 600 mm (Max load 30 Kg) (code 0521A010) • DTS Dongle firmware uploader (code 03.LA.206...

  • Page 8: Important Safety Information

    Unplug the unit prior to performing any function which involves touching the inside of the moving head. -The level of technology inherent in the EUPHONY 3 requires the assistance of specialised personnel for all servicing. Please refer to an authorised DTS service centre.

  • Page 9: Installation

    EUPHONY 3 is moving. Four 1/4 turn Fast Locks connections placed in the base of the unit allow to hang the EUPHONY 3 by using a Omega bracket (provided in the box) in conjunction with Aliscaf clamp (available on demand).

  • Page 10: Safety Cable

    7.1- Safety cable A safety cable must be securely fixed to the EUPHONY 3 and to the suspension truss in order to avoid the fixture accidentally falling should the main fixing point fail. Make sure that the safety cable or chain can bear the weight of the entire unit.

  • Page 11: Protection Against Liquids

    Max 3 EUPHONY units @ 100Vac PowerCON TRUE1 female panel connector 8.1- Protection The use of a thermal magnetic circuit breaker is recommended for each EUPHONY 3. A good earth connection is essential for the correct operation of the projector.

  • Page 12: Dmx Signal Connection

    LAST UNIT CONNECTED TO THE DMX LINE 120 ohm 9.1-DMX Addresses EUPHONY 3 can be used in “Standard 18 ch” or “Compatibility 20 ch” DMX mode. In order to use the unit in “Standard 18 ch” mode (Default), set the following addresses on the mixer:...

  • Page 13: Rdm Functions

    10- RDM FUNCTIONS By using a RDM controller it is possible to read / set DMX address, DMX mode and other parameters. EUPHONY 3 accepts the following RDM commands: RDM Device Model ID: 0x0017 RDM PID DESCRIPTION RDM PID VALUE Category –...
  • Page 14 15- RDM FUNCTIONS RDM ADDITIONAL MESSAGEs: CURVE CURVE DESCRIPTION LINEAR QUADRATIC (default) GAMMA 2.2 S-CURVE OUTPUT RESPONSE TIME OUTPUT_RESPONSE_TIME_DESCRIPTION SMOOTH OFF SMOOTH 1 ( 25 ms) SMOOTH 2 ( 50 ms) SMOOTH 3 ( 75 ms) SMOOTH 4 (100 ms) (default) SMOOTH 5 (125 ms) SMOOTH 6 (150 ms) SMOOTH 7 (175 ms)
  • Page 15 15- RDM FUNCTIONS RDM ADDITIONAL MESSAGEs: MODULATION FREQUENCY MODULATION FREQUENCY DESCRIPTION 610 Hz 800 Hz 1.000 Hz (default) 1.500 Hz 2.000 Hz 2.500 Hz 3.000 Hz 3.500 Hz 4.000 Hz 4.500 Hz 5.000 Hz RDM MANUFACTURER’S SPECIFIC PIDs: RDM CUSTOM PID DESCRIPTION Set parameter DISPLAY –...

  • Page 16: Firmware Updating

    Updating the firmware release. Please follow the procedure below to perform the update: 1. Connect the DTS Dongle Firmware Uploader to a spare USB port on the PC. 2. Connect the unit DMX input to the DTS Dongle Firmware Uploader DMX output with a standard DMX cable and turn ON the unit.

  • Page 17: Display Functions

    Using these options, it is possible to change the fixture’s setting. Changing the DTS settings can vary the functions of the unit so that it does not respond to the DMX 512 used to control it. Carefully follow the instructions below before carrying out any variations or selections.
  • Page 18 MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION Allows to set the Pan PAN DIRECTION NORMAL movement. REVERSE Normal or Reverse. Normal (Default). Allows to set the Tilt TILT DIRECTION NORMAL movement. REVERSE Normal or Reverse. Normal (Default). Allows to set the Zoom ZOOM NORMAL movement.
  • Page 19 MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION Allows to set the NO DMX KEEP LAST DMX desired unit’s behavior ACTION in case DMX signal is missing or not available. Keep last valid DMX signal (Default). 48 pre-programmed PROGRAM 1-48 1 - 48 steps.
  • Page 20 MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION Allows to set GAMMA CORR. QUAD 2.0 quadratic current output for LED (Default). Allows to set gamma curve 2.2 . Allows to set S-curve S-CURVE to emulates light intensity characteristics of the tungsten halogen lamps.
  • Page 21 TRANSMITTER devices. LINK EUPHONY 3 can be used as Wireless DMX transmitter/receiver. Optional Lumen Radio Wireless DMX TX-RX interface kit (Code 03.LA.241) is needed. Operation as Receiver (default) Enable Wireless DMX control under WIRELESS -> STATUS menu. On the main display will appear “WIRELESS RX” (Default) above the DMX address.
  • Page 22 MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION Unit model, motors SYSTEM INFO SOFTWARE EUPHONY 3 firmware release date, 08 NOV 2019 Motors board and LED Driver board firmware MOTOR: V.12 release. LED: V.1.00 LED: LED temperature TEMPERATURES LED: 041°C monitoring.
  • Page 23 MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION To restore factory DEFAULT settings. To reset head motors MANUAL RESET HEAD MOTORS only. CONTR. To reset Pan and Tilt PAN TILT only. To reset all motors. ALL MOTORS To restore parameters RESTORE DEF.

  • Page 24: Error Messages

    13- ERROR MESSAGES ERROR SHOWN ON DISPLAY APPEARS WHEN -Pan motor fault -Pan encoder fault -Pan motor driver on Pan&Tilt PCB fault -Wiring connection between Pan encoder and Pan&Tilt PCB fault PAN LOCKED -Pan locked -Pan motor fault -Pan encoder fault -Pan motor driver on Pan&Tilt PCB fault -Wiring connection between Pan encoder and Pan&Tilt PCB fault...

  • Page 25: Soft Frost Filter Installation

    14- SOFT FROST FILTER INSTALLATION A Soft frost filter (code 02SK0472) is provided as standard accessory. To properly install the filter: 1- Loose the 3 ¼-turn screws on one side of the head. 2- Insert the filter on the remaining cover as shown in the picture. 3- Put in place the previously removed cover and tighten again the 3 ¼-turn screws.

  • Page 26: Periodic Cleaning

    Fuse replacement Locate the fuse, which protects the lamp and electronics, in the base of EUPHONY 3. Using a multimeter, test the condition of the fuse, replacing it with one of equivalent type (T 5A 250V) if necessary.
  • Page 27 17- DMX PROTOCOL 1. “STANDARD 18 CH” mode (Default) 1 RED 2 GREEN 3 BLUE 4 WHITE 5 SHUTTER 6 DIMMER msb 7 DIMMER lsb 8 CCT (Priority on RGBW and MACRO channels) 9 MACRO COLOR (Priority on RGBW channels) 10 PAN msb 11 PAN lsb 12 TILT msb...
  • Page 28 Name DMX Levels 000-009 MACRO COLOR No Function 010-024 COL 1: LEE FILTER NO. 19 "FIRE" (R255 G64 B0 W0 GAMMA=QUAD) (R255 G16 B0 W0 GAMMA=LINE) 025-034 COL 2: LEE FILTER NO. 20 "MEDIUM AMBER" (R255 G160 B28 W0 GAMMA=QUAD) (R255 G100 B3 W0 GAMMA=LINE) 035-044 COL 3: LEE FILTER NO.
  • Page 29 Name DMX Levels 000-009 FIXTURE CONTROL No function 010-024 SMOOTH OFF Staying on desired option for 5 seconds 025-026 SMOOTH 1 027-028 SMOOTH 2 029-030 SMOOTH 3 031-032 SMOOTH 4 (DEFAULT) 033-034 SMOOTH 5 035-036 SMOOTH 6 037-038 SMOOTH 7 039-040 SMOOTH 8 041-042...
  • Page 30 Name DMX Levels 185-186 FUNCTIONS 72 - PAN NORMAL (DEFAULT) 187-188 73 - PAN REVERSE Staying on desired option for 5 seconds 189-196 RESERVED 197-198 78 - TILT NORMAL (DEFAULT) 199-200 79 - TILT REVERSE 201-208 RESERVED 209-210 84 – ZOOM NORMAL (DEFAULT) 211-212 85 - ZOOM REVERSE 213-234...
  • Page 31 21- DMX PROTOCOL 2. “COMPATIBILITY 20CH” mode (compatibility with NICK NRG Series) 1 PAN msb 2 PAN lsb 3 TILT msb 4 TILT lsb 5 PAN/TILT SPEED 6 Reserved 7 FREQUENCY 8 SHUTTER 9 DIMMER 10 RED 11 GREEN 12 BLUE 13 WHITE 14 WHITE PRE-PROGRAMMED 15 CTC...
  • Page 32 No function PROGRAMMED 56..105 Full (Red, Green, Blue and White at full) 106..155 DTS White (R 216, G 255, B 216, W 255) 156..205 Custom white create (RGBW levels selectable by DMX) 206..255 White CTC (channel 15 CTC enabled) 0..255...
  • Page 33 Name DMX levels MACRO 0..14 No function 15..24 COL 1: (R255 G0 B0 W0 GAMMA=LINE) (R255 G0 B0 W0 GAMMA=QUAD) MACRO = EXT 25..34 COL 2: (R255 G12 B0 W0 GAMMA=LINE) (R255 G55 B0 W0 GAMMA=QUAD) 35..44 COL 3: (R255 G113 B0 W0 GAMMA=LINE) (R255 G170 B0 W0 GAMMA=QUAD) 45..54 COL 4: (R255 G255 B0 W0 GAMMA=LINE) (R255 G255 B0 W0 GAMMA=QUAD) 55..64...
  • Page 34 NOTES...

  • Page 35: Dmx Protocol

    NOTES...
  • Page 36 ISO 9001:2015 DTS quality system is certified 9001:2015 standard 0517I353 D.T.S. Illuminazione s.r.l. ● Via Fagnano Selve 12- 47843 Misano Adriatico (RN) Italy ● Tel.: +39 0541 611131 Fax +39 0541 611111 info@dts-lighting.it www.dts-lighting.it Product and specifications subjects to change without notice.
