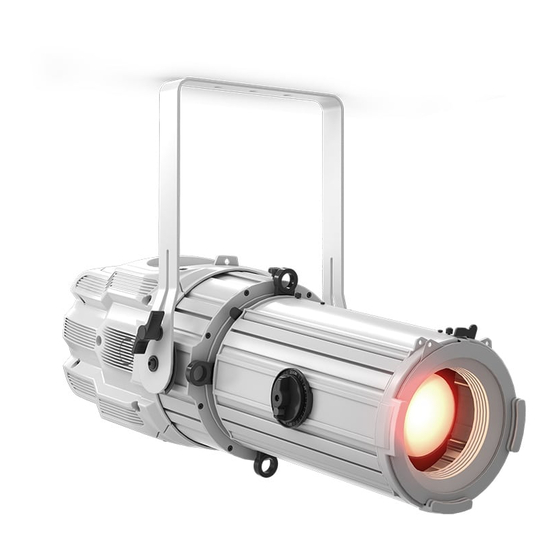

Summary of Contents for DTS SOPRANO Series

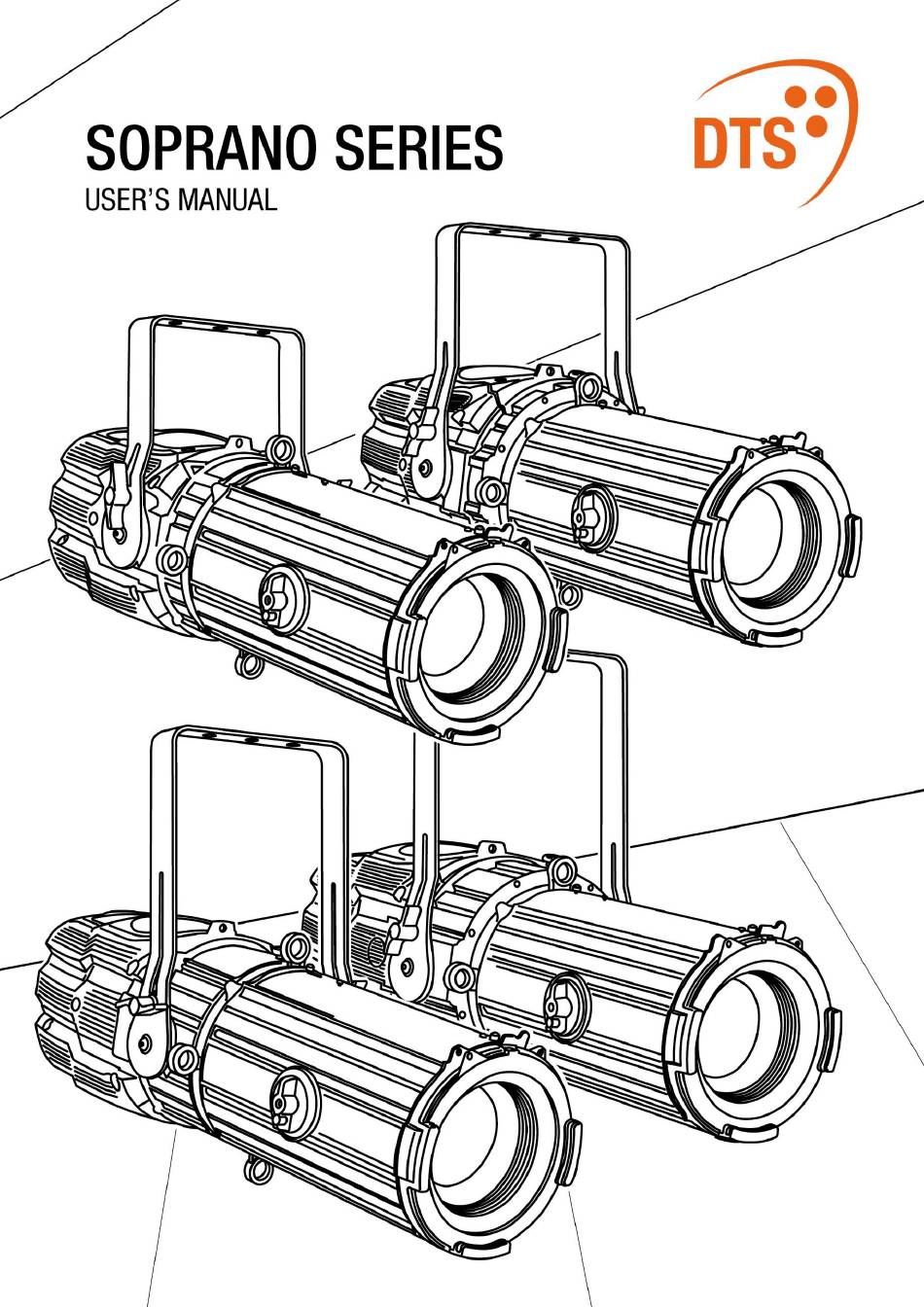

- Page 3 SOPRANO Release 1.0.1 Code: 0517I367 For more information Language All other trademarks, both marked and not marked, are the property of their respective owners. User Manual Ver. 1.0.1 1 di 31...
- Page 4 SOPRANO Le informazioni contenute in questo documento sono state attentamente redatte e controllate. Tuttavia non è assunta alcuna responsabilità per eventuali inesattezze. Tutti i diritti sono riservati e questo documento non può essere copiato, fotocopiato, riprodotto per intero o in parte senza previo consenso scritto della D.T.S. Illuminazione.
-
Page 5: Table Of Contents
SOPRANO Table of Contents Symbols................................ 5 General Warning ............................6 Safety and Operation ........................... 6 Fire prevention ............................. 6 Prevention of electric shock ......................... 7 Level of protection IP ........................... 7 Safety ..............................7 Waste Electrical and Electronic Equipment (WEEE) directive ............. 8 General Warranty Conditions ........................ - Page 6 SOPRANO 13.5.5 Iris placement ..........................25 13.5.6 Barndoors ..........................26 13.5.7 Barndoors placement ......................... 27 13.5.8 Safety cable for Barndoors and Gel Holder ................27 Periodic Cleaning............................28 14.1 Opening the Housing .......................... 28 14.2 Lenses ..............................28 14.3 Fans and Air Passages ........................28 Periodic Check-ups .............................
-
Page 7: Symbols
SOPRANO Symbols Symbol Meaning General risk. Electric shock risk Hot surface Suitable for indoor use only. Maximum operating ambient temperature. Minimum distance from illuminated objects. Do not stare at the operating light source. Photobiological safety risk group 2 Never expose the front lens to sunlight or any strong artificial Light source from any angle to avoid damage of head internal parts. -
Page 8: General Warning
Failing to follow the instructions on this “User Manual” shall cancel the warranty issued by D.T.S. Illuminazione Srl. Before installation, please carefully read this “User Manual” and make sure to check the latest technical updates available on the D.T.S. Illuminazione Srl’s website – (www.dts-lighting.it). Fire prevention ... -
Page 9: Prevention Of Electric Shock
SOPRANO requires the assistance of specialized personnel for all servicing. Please always refer to an authorized DTS service center. Level of protection IP The projector is classified as an ordinary appliance and its protection level against the penetration of solid and liquid objects is IP20. -
Page 10: Waste Electrical And Electronic Equipment (Weee) Directive
SOPRANO The ambient temperature should not exceed 45°C This fixture is intended for use where humidity does not exceed 90% (non- condensing). If the product has been subjected to drastic temperature variances, for example, following transportation, do not connect the fixture until it has reached ambient temperature, as moisture condensation may cause electric shock and product damages. -
Page 11: Features
Dimming: PWM Dimming technology Control Protocols: RDM; DMX 512 A Firmware updatable: via DTS firmware uploader dongle DMX MODES: refer to paragraph number 10.2 Fan modes (DMX-selectable): ‘Standard’, ‘Silent’, ‘Ultra Silent’ and ‘Automatic’ Noise level @... -
Page 12: Technical Specifications
SOPRANO Technical Specifications SOPRANO 3 SOPRANO 3 Model WHITE Source LED detail Six color LED engine White cob led Red, Green, Blue, Amber, Cyan Colors CCT 3000 K - CCT 5700 K Lime Lumen output (Optic 15-30) 4700 lm 4900 lm - 5700 lm Lumen output (Optic 25-50) 5900 lm 5800 lm - 6800 lm... -
Page 13: Soprano 5
SOPRANO Input system Jog wheel with push button Connections Power supply powerCON TRUE1 In/Out panel connectors Connection XLR 5-pole In/Out panel connectors Soprano 5 SOPRANO 5 Model WHITE Source LED detail Six color LED engine White cob led Red, Green, Blue, Amber, Cyan Colors CCT 3000 K, CCT 5700 K Lime... -
Page 14: Zoom Lens
SOPRANO User Interface Display Blu & White LCD graphic display Input system Jog wheel with push button Connections Power supply powerCON TRUE1 In/Out panel connectors Connection XLR 5-pole In/Out panel connectors NOTE: As for all electrical devices, LEDs will degrade through time with a consequent reduction in their luminosity. This explains why it is almost impossible to obtain identical photometric performances between two different LED devices with different operating lifetime. -
Page 15: Dimensions
SOPRANO Dimensions D for D for Optic 15/30 Optic 25/50 Model SOPRANO 3 11.46 17.78 28.15 14.17 13.09 13.98 HQS/HDW SOPRANO 3 11.3 14.17 26.04 14.17 13.09 11.85 WHITE SOPRANO 5 13.03 19.06 29.03 14.17 13.09 14.84 HQS/HDW SOPRANO 5 12.68 15.51 26.85... -
Page 16: Included Items
SOPRANO may be either ceiling or floor mounted on tripod. For ceiling mounting installations, DTS recommend the use of appropriate clamps to fix the unit to the mounting surface. The supporting structure from which the unit is hung should be capable of bearing the weight of the unit, as should any clamps used to hang it. -
Page 17: Mains Connection
SOPRANO Mains Connection Prior to connecting the unit to the mains, ensure that your local mains electricity supply properties are compatible with those of the product. Strict adherence to regulatory norms is strongly recommended. MAINS OUT MAINS IN 100-240Vac 50-60 Hz 100 - 240 Vac 50 / 60Hz (SOPRANO 3 MAX 14A) male PowerCON TRUE1 panel... -
Page 18: Protection
SOPRANO Protection The use of a thermal magnetic circuit breaker is recommended for each unit. Class I appliance: connection must be made to a mains system fitted with an efficient earthing. 10 DMX Signal Connection The unit operates using the digital USITT DMX512 signal. ... -
Page 19: Dmx Modes
SOPRANO 10.2 DMX Modes SOPRANO can be used in different DMX modes: SOPRANO 3_5 HQS / TENORE 3_5 HQS can be used in five different DMX modes: CCT (Default) -Correlated color Temperature Advanced - Correlated Color temperature plus Raw control for color channels RGBACL ... -
Page 20: Rdm-Dmx - Display Functions, Error Messages
To perform the update, please follow the procedure as described below: Connect the DTS Firmware Uploader Dongle to a spare USB port on the PC. Connect the unit’s DMX IN to the DTS Firmware Uploader Dongle’s DMX OUT with a standard DMX cable and turn on the fixture. -
Page 21: Install Zoom Lens Assembly
SOPRANO 13.3 Install Zoom Lens Assembly User Manual Ver. 1.0.1 19 di 31... -
Page 22: Zoom- Foscus Adjustment
SOPRANO 13.4 Zoom- Foscus Adjustment Before regulating Zoom or Focus, be sure to unlock the Zoom/Focus fixing knob (do not unscrew it completely) and do not force the movement if the knob is blocked or excessively hard to rotate. Pawl / fixing knob Pawl / fixing knob User Manual Ver. -
Page 23: Shutter Blades Rotation
SOPRANO 13.5 Shutter Blades rotation 13.5.1 Gel Holder The Gel Holder is supplied with the unit. If the Gel Holder is broken or damaged it’s possible to purchase a new one with the following code ( Code 02M093424.49 for SOPRANO 3-5 13.5.1.1 GEL placement Model SOPRANO 3-5... -
Page 24: Gel Holder Placement
SOPRANO 13.5.2 Gel Holder placement The gel holder must be inserted in position A. User Manual Ver. 1.0.1 22 di 31... -
Page 25: Gobo Holder
SOPRANO 13.5.3 Gobo Holder The Gobo holder is available on request Cod. 03.TA229 (gobos not included) Magnetic attachment, pull the mechanics to open it GOBO: Ø external (ED) = 80 mm +0,2 / -0,2 mm Ø of image (ID) = 50,0 mm Recommended thickness= 1,1 mm MAX thickness = 1,5 mm User Manual... -
Page 26: Gobo Holder Placement
SOPRANO 13.5.4 Gobo Holder placement The Gobo holder is available on request Cod. 03.TA229 User Manual Ver. 1.0.1 24 di 31... -
Page 27: Iris Placement
SOPRANO 13.5.5 Iris placement The Iris is available on request Cod. 03.TA228 User Manual Ver. 1.0.1 25 di 31... -
Page 28: Barndoors
SOPRANO 13.5.6 Barndoors The Bandoors are available on request in the two versions with 4 leaf and 8 leaf and are specific for the model. 03.TBD06.49 BARNDOOR 4 TENORE/SOPRANO 3 BLACK 03.TBD08.49 BARNDOOR 8 TENORE/SOPRANO 3 BLACK User Manual Ver. 1.0.1 26 di 31... -
Page 29: Barndoors Placement
SOPRANO 13.5.7 Barndoors placement The barndoor must only be inserted in position B 13.5.8 Safety cable for Barndoors and Gel Holder As additional security to the safety Lever , it’s possible to secure Gel Holder and Barndoors to the unit body with a dedicated Safety cable. -
Page 30: Periodic Cleaning
SOPRANO 14 Periodic Cleaning WARNING! Disconnect from mains before servicing. 14.1 Opening the Housing WARNING! Remove mains power prior to accessing the projector’s internal components. It is possible to inspect the frontal part of the projector, as indicated below. 14.2 Lenses Even a fine layer of dust can substantially reduce the luminous output. -
Page 31: Periodic Check-Ups
Periodically check all mechanical parts, gears, guides, etc., for wear and tear. Replace them if necessary. Periodically check the lubrication of all components, particularly the parts subjected to high temperatures. If necessary, apply suitable lubricant (available from your DTS distributor) where needed. 15.2 Electrical Components Check all electrical components for correct earthing and proper connection of all connectors. -
Page 32: Troubleshooting
The product is defective disassemble the product. Do not attempt to carry out repairs or operations not described in this manual. Please contact your nearest DTS service center. Remove the gel holder and Output light intensity is too low Dirty lenses barndoors and clean the lenses as indicated in the user manual. -
Page 33: Notes
SOPRANO NOTES User Manual Ver. 1.0.1 31 di 31... - Page 35 SOPRANO User Manual Ver. 1.0.1 1 di 31...
