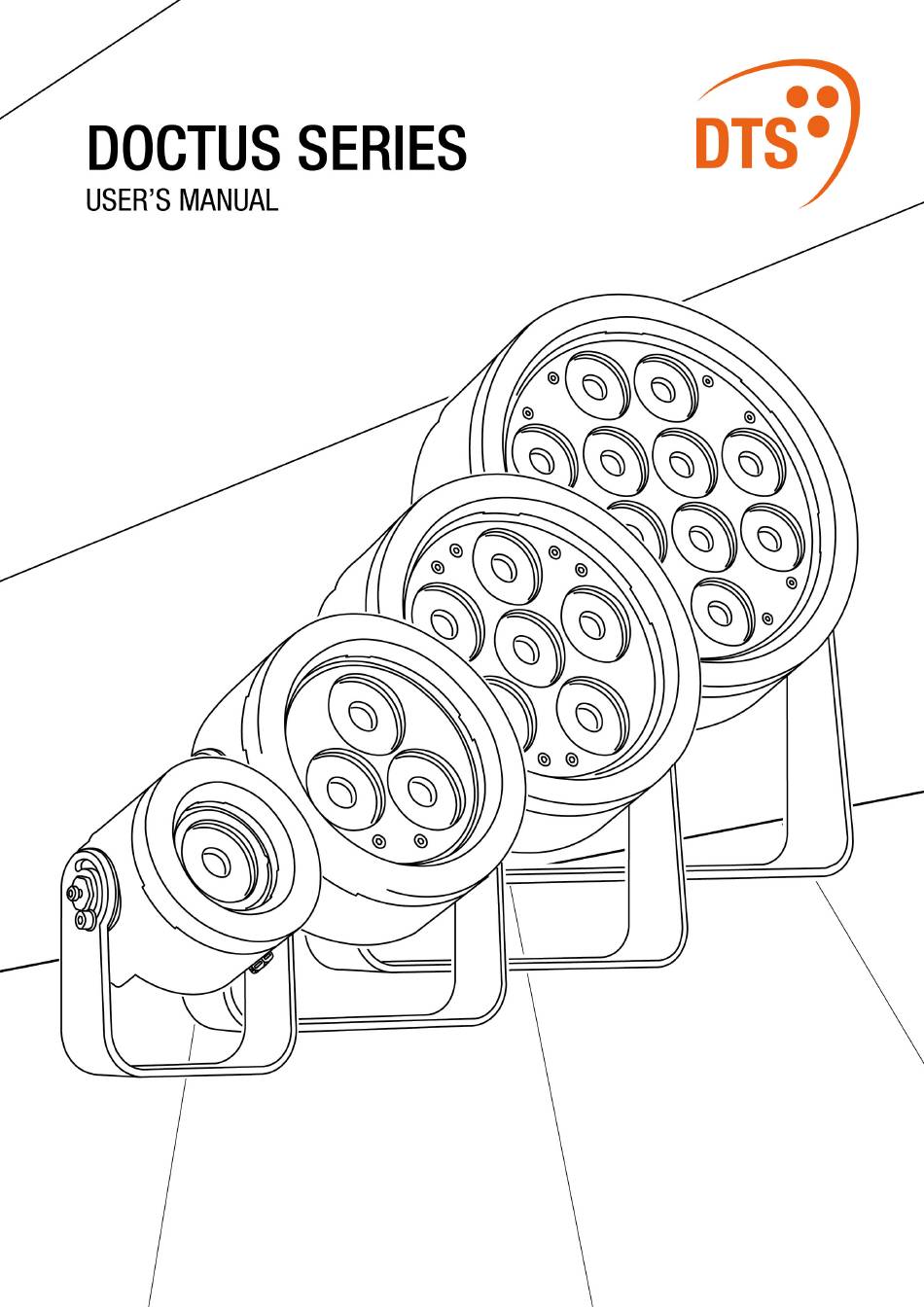

- Page 3 DOCTUS Release 1.02 Code: For more information Language User Manual Ver. 1.02 1 di 21...
- Page 4 DOCTUS Le informazioni contenute in questo documento sono state attentamente redatte e controllate. Tuttavia non è assunta alcuna responsabilità per eventuali inesattezze. Tutti i diritti sono riservati e questo documento non può essere copiato, fotocopiato, riprodotto per intero o in parte senza previo consenso scritto della D.T.S. Illuminazione S.r.l.
-
Page 5: Table Of Contents
DOCTUS Table of Contents Symbols................................ 5 Safety and Operation ........................... 6 Fire prevention ............................. 6 Prevention of electric shock ......................... 6 Level of protection IP ........................... 6 Safety ..............................7 Waste Electrical and Electronic Equipment (WEEE) directive ............. 7 Introduction..............................8 General Information .......................... - Page 6 DOCTUS User Manual Ver. 1.02 4 di 21...
-
Page 7: Symbols
DOCTUS 1 Symbols General risk Electric shock risk Burn risk – hot surface Maximum operating ambient temperature Minimum distance from illuminated surface. Do not stare at the operating lighting source Photobiological safety Risk Group 2 Never expose the front lens, from any angle, to direct sun light or strong artificial light sources in order to avoid damage to the internal parts of the product IEC Protection Class III Never throw with regular waste... -
Page 8: Safety And Operation
Failing to follow the instructions on this “User Manual” shall cancel the warranty issued by D.T.S. Illuminazione Srl. Before installation, please carefully read this “User Manual” and make sure to check the latest technical updates available on the D.T.S. Illuminazione Srl’s website – (www.dts-lighting.it). 2.1 Fire prevention Minimum distance from illuminated surface. -
Page 9: Safety
DOCTUS 2.4 Safety These products must be installed by qualified personnel only, following national laws and local regulation regarding construction and electrical systems. This product can only be installed by personnel qualified for the installation of electrical appliances. They must ensure that: a. -
Page 10: Introduction
LED lighting fixture for indoor and outdoor use. The product is particularly useful for “architainment” lighting, landscaping, or illuminating architectural elements. The DOCTUS family can be controlled via DTS Illuminazione’s “Drivenet” series PSU, it is possible to control the luminous intensity of each color. -
Page 11: Dimensions
DOCTUS 3.3 Dimensions Model DOCTUS 1 4.41 2.83 3.98 2.76 1.65 3.15 DOCTUS 3 6.18 3.74 5.71 2.76 1.54 4.88 DOCTUS 6 7.91 4.84 6.97 3.15 1.73 6.14 DOCTUS 12 10.43 6.42 8.94 3.74 1.89 8.03 4 Installation 4.1 Things to Consider Plan the setup before mounting the product. -
Page 12: Before The Installation
DOCTUS 4.2 Before the Installation 4.2.1 Check-up List for the Installation Prepare all cables and necessary accessories. • Test the DOCTUS before installing. Pay attention not to damage cables/connectors during check-up. • Ensure that all check-ups described within this document are thoroughly followed. •... -
Page 13: Cable Folding
DOCTUS rating. 4.2.4 Cable Folding Cables MUST NOT be folded with a curvature radius inferior to four times their external diameter (4x cable diameter). The cable, when extending from the product, must be kept straight for a minimum length of 5 cm (1.97 in) next to the cable gland. -
Page 14: Doctus Mounting
DOCTUS 4.3 DOCTUS Mounting 4.3.1 Drilling Templates DOCTUS 1 DOCTUS 3 DOCTUS 6 DOCTUS 12 NOTES: The drilling templates are lined with the rotation axis of the product. DOCTUS 1 and 3 brackets are provided with only one drilling template. As soon as the desired light beam orientation has been obtained, accurately fasten the fixture. -
Page 15: Vertical Orientation
DOCTUS 4.4 Vertical Orientation 4.4.1 Excursion DOCTUS can be vertically oriented with a 230° excursion. 4.4.2 Adjustment After installing the product, the vertical orientation of the light beam may be obtained by manually rotating the head of the fixture. The rotation system is manufactured within D.T.S. Illuminazione Srl’s plants with a friction level which allows for its manual positioning. -
Page 16: Power Supply
DOCTUS 4.5 Power Supply 4.5.1 PSU Requirements Not all power supply units are capable of driving DOCTUS fixtures. In order to select the correct PSU, please consider the following: • DOCTUS range is ranked with an IEC protection class III, therefore the PSU of this device must have an SELV output and guarantee double isolation between input and output. -
Page 17: Serial Connection
DOCTUS 4.5.3 Serial Connection As stated in the previous paragraph, the serial connection of two or more DOCTUS FC or DOCTUS WH can be done as seen below: 4.5.4 Maximum Distance Should the PSU be moved away from the product, please consider the following: Cable junctions and connections must be done by following the instructions as stated before in this •... -
Page 18: Technical Specifications
DOCTUS center or refer directly to D.T.S. Illuminazione S.r.l. Do not try to repair the product yourself. In case of need, please contact the nearest authorized • support center or refer directly to D.T.S. Illuminazione Srl. 6 Technical Specifications DOCTUS FC Model DOCTUS 1 DOCTUS 3... - Page 19 DOCTUS DOCTUS WH Model DOCTUS 1 DOCTUS 3 DOCTUS 6 DOCTUS 12 Body Painted aluminum Light source High-power white LED Number of LEDs (****) Color temperature (**) 3000 K; 4000 K; Lenses (**) (***) 10°; 25°; 35°; Elliptic 12°x40°; Elliptic 40°x12° Maximum input current 700 mA cc (for each channel) Total Maximum power @ 700 mA...
-
Page 20: Troubleshooting
DOCTUS 7 Troubleshooting Warning: Make sure to unplug the devices from their power supply when connecting/disconnecting cables. Problem Probable cause Possible solutions • Check connections between DOCTUS and their power supply. The product, after • Ensure correct polarity is respected. installation, doesn’t Wrong PSU connection •... -
Page 21: Safety Cable Installation
DOCTUS 8.1.1 Safety Cable Installation The picture on the right represents the correct way to install a safety cable and it is not indicatively of an installation carried out flawlessly. 8.2 Top Hat For each model, a top hat that can be ordered separately and mounted later, is available as accessory. 8.2.1 Dimensions Model DOCTUS 1... -
Page 22: Top Hat Installation
D.T.S. Illuminazione Srl’s products are guaranteed against any material or operational defect starting from the purchasing date, given that the acquired products have been used as indicated on this User Manual. Please refer to www.dts-lighting.it for the complete warranty terms and conditions. 10 Product Disposal DOCTUS are electrical devices and therefore, at the end of their lifetime, must be disposed according to local regulations and for no reason can they be dispersed in the environment. - Page 23 DOCTUS NOTES User Manual Ver. 1.02 21 di 21...
