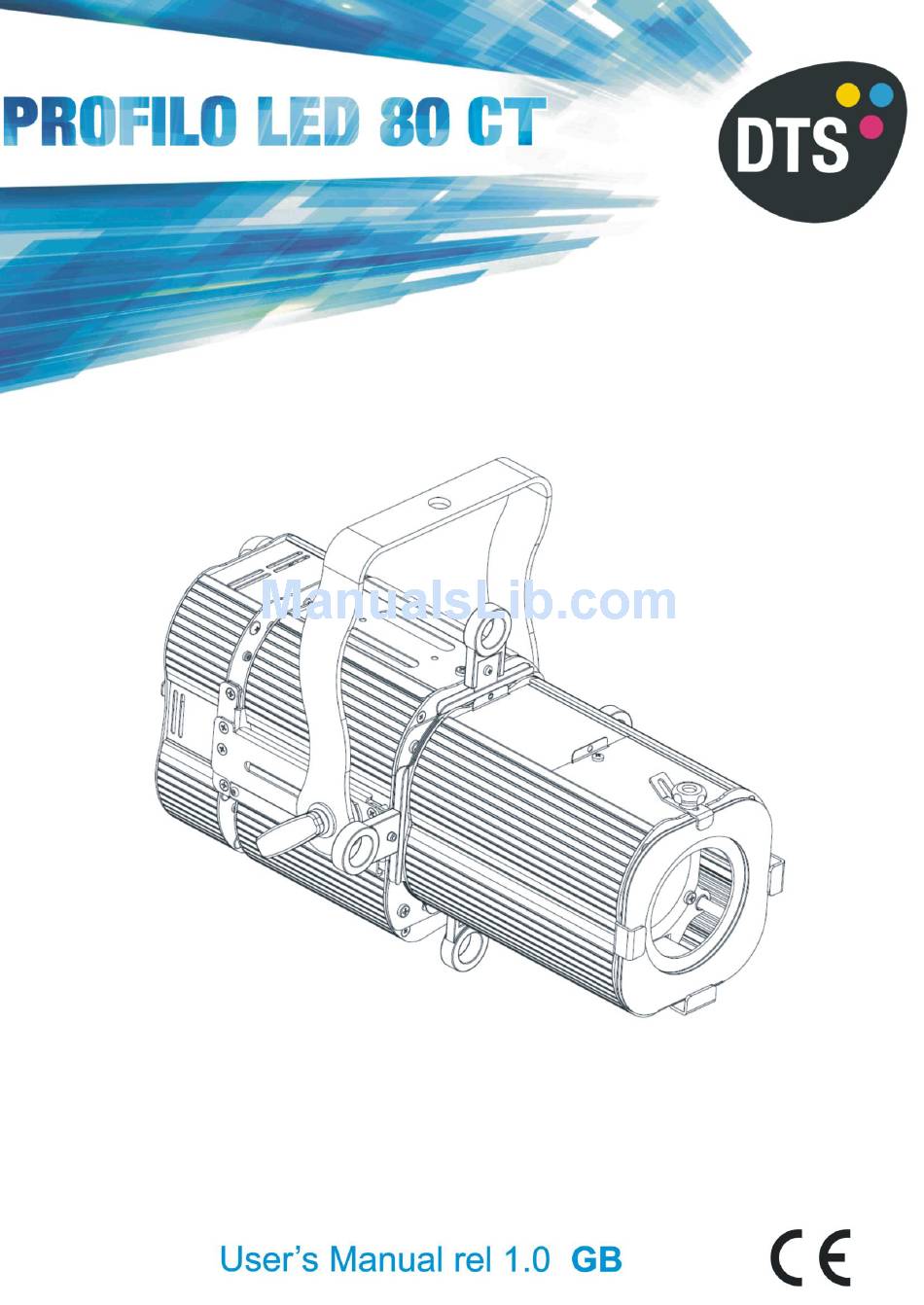

DTS Portfolio User Manual

Led 80 ct
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Portfolio and is the answer not in the manual?

Questions and answers

Related Manuals for DTS Portfolio

Summary of Contents for DTS Portfolio

  • Page 2 Le informazioni contenute in questo documento sono state attentamente redatte e controllate. Tuttavia non è assunta alcuna responsabilità per eventuali inesattezze. Tutti i diritti sono riservati e questo documento non può essere copiato, fotocopiato, riprodotto per intero o in parte senza previo consenso scritto della D.T.S . D.T.S.

  • Page 3: Table Of Contents

    INDEX: 1- SYMBOLS ......................... 4 2- GENERAL WARNING ....................4 3- GENERAL WARRANTY CONDITIONS ..............4 4- TECHNICAL FEATURES ..................5 5- ACCESSORIES ......................6 6- IMPORTANT SAFETY INFORMATION ..............7 6.1 Fire prevention...................... 7 6.2 Prevention of electric shock .................. 7 6.3 Safety ........................

  • Page 4: 1- Symbols

    1- SYMBOLS Graphic symbols used on this manual: THIS SYMBOL INDICATES A HOT SURFACE THIS SYMBOL INDICATES ELECTRIC SHOCK RISK THIS SYMBOL INDICATES GENERAL RISK THIS SYMBOL INDICATES THE MAXIMUM OPERATING AMBIENT TEMPERATURE THIS SYMBOL MEANS “DO NOT STARE AT THE OPERATING LIGHT SOURCE” THIS SYMBOL INDICATES PHOTOBIOLOGICAL SAFETY THIS SYMBOL INDICATES THE EUROPEAN...

  • Page 5: 4- Technical Features

    Television and Theatre applications, where a perfectly adjustable white color temperature is a key requirement. The unit features an internal four-shutter shaping system, and a 20° to 36° linear zoom. DTS product codes: 03.TP033.46 PROFILO LED 80 CT BLACK 03.TP033.03...

  • Page 6: 5- Accessories

    - Gobo holder (DTS Code 03.TA224) - “C” Clamp G50 (Max. Load 10 Kg) (DTS Code 0521A012) - “C” Clamp G60 (Max. Load 50 Kg) (DTS Code 0521A004) - Safety cable 3 mm x 60 cm, max capacity load 60 Kg (DTS Code 0521A010)

  • Page 7: 6- Important Safety Information

    6- IMPORTANT SAFETY INFORMATION 6.1 Fire prevention: Replace any blown or damaged fuses only with those of identical value: T 2A 250V. 6.2 Prevention from electric shock: High voltage is present inside the unit. Unplug the unit prior to performing any operation which involves touching the inside of the unit.

  • Page 8: 7- Installation

    7- INSTALLATION The unit is suitable for dry locations only. PROFILO LED 80 CT can be installed on a truss or on the ceiling. It is recommend the use of appropriate clamps to fix the unit to the mounting surface. ATTENTION: A safety cable (code 0521A010) must be securely fixed to the unit’s mounting bracket and to the support structure of the projector as shown in the picture below.

  • Page 9: 8- Input / Output Connections

    8- INPUT / OUTPUT CONNECTIONS...

  • Page 10: 9- Dmx Signal Connection

    9- DMX SIGNAL CONNECTION: The unit operates using a digital DMX 512 signal. Connection between the controller and the unit or between units must be carried out using a two pair screened ø 0.5 mm. Ensure that the conductors do not touch each other. Do not connect the cable ground to the DMX connector chassis.

  • Page 11: Dmx Addresses

    9.1 DMX addresses PROFILO LED 80 CT can be controlled with 7 DMX channels (Default) or 2 DMX channels. In order to use the unit in 7 DMX channels mode (Default), set the following addresses on the mixer: Projector 1 A001 If you want to select the next projector, just add “7”...

  • Page 12: 10- Rdm Functions

    10- RDM FUNCTIONS By using a RDM controller it is possible to set DMX address, DMX mode and other parameters. PROFILO LED 80 CT accepts the following RDM commands: DEVICE_INFO To read the following parameters:  RDM protocol version  Fixture model ID ...

  • Page 13: 11- Firmware Updating

    Updating the software version. Please follow the procedure below to perform the update: 1. Install the DTS RED BOX USB-DMX driver on the PC you will use to update the unit software. 2. Connect the DTS RED BOX interface to a spare USB port on the PC (be sure that internal switch on DTS RED BOX is set to COM).
  • Page 14 Firmware release 1.00 MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION     Display normal orientation for floor mounting position (Default)   Display inverted orientation for suspended mounting position    Display always ON (Default) ...

  • Page 15: 13- Manual Mode

    MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION     To restore default settings     LED temperature monitoring    LED Driver board temperature monitoring     Shows the total unit life time and the Warm White / Cold White LEDs ...

  • Page 16: 15- Dmx Protocol

    15- DMX PROTOCOL 7 CHANNELS MODE (Default) WARM WHITE 2700K COLD WHITE 6000K SHUTTER DIMMER DIMMER FINE FUNCTIONS Name DMX levels WARM WHITE 2700K 0..255 Proportional color from min to max COLD WHITE 6000K 0..255 Proportional color from min to max SHUTTER 0..9 Black-out...
  • Page 17 Name DMX levels FUNCTIONS (staying 0..14 No function on desired option for 15..24 SMOOTH OFF 5 seconds) 25..26 SMOOTH 1 (25 ms) 27..28 SMOOTH 2 (50 ms) 29..30 SMOOTH 3 (75 ms) 31..32 SMOOTH 4 (100 ms) (DEFAULT) 33..34 SMOOTH 5 (125 ms) 35..36 SMOOTH 6 (150 ms) 37..38...
  • Page 18 Name DMX levels NO DMX ACTION – KEEP LAST DMX (DEFAULT) 175..176 NO DMX ACTION – Black-out 177..178 NO DMX ACTION – All channels @ 100% 179..180 NO DMX ACTION – All channels @ 60% 181..182 NO DMX ACTION – 2700K..6000K (active CCT as per display menu > NDMX > WHIT or via RDM Custom 183..184 PIDs (Default = 2700K) 185..194...

  • Page 19: 16- Gobo Holder

    16- GOBO HOLDER Gobo Holder for PROFILO LED 80 CT: DTS code 03.TA224 (Metal / Glass Gobo not included). Gobo dimensions: Ø external = 66 mm Ø of image = 48 mm Thickness = from 0.2 to 3 mm How to fix the Gobo on Gobo Holder: 1 - Loose the marked screws fixing each metal plate.
  • Page 20 2 - Put in place the Gobo Holder. 3 - Gobo Holder properly inserted.

  • Page 21: 17- Iris

    17- IRIS Iris for PROFILO LED 80 CT: DTS code 03.TA223 To properly install the Iris: 1 - Remove the marked screw and slide the panel.
  • Page 22 2 - Put in place the Iris. 3 - Iris properly inserted.
  • Page 23 NOTES...
  • Page 24 *0517I293* ● D.T.S. Illuminazione s.r.l. Via Fagnano Selve 12-14 47843 Misano Adriatico (RN) Italy ● Tel.: +39 0541 611131 Fax +39 0541 611111 ● info@dts-lighting.it www.dts-lighting.it 0517I293...
