SCENA LED 120 HQS
USER'S MANUAL rel. 1.0 GB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCENA LED 120 HQS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DTS SCENA LED 120 HQS

Summary of Contents for DTS SCENA LED 120 HQS

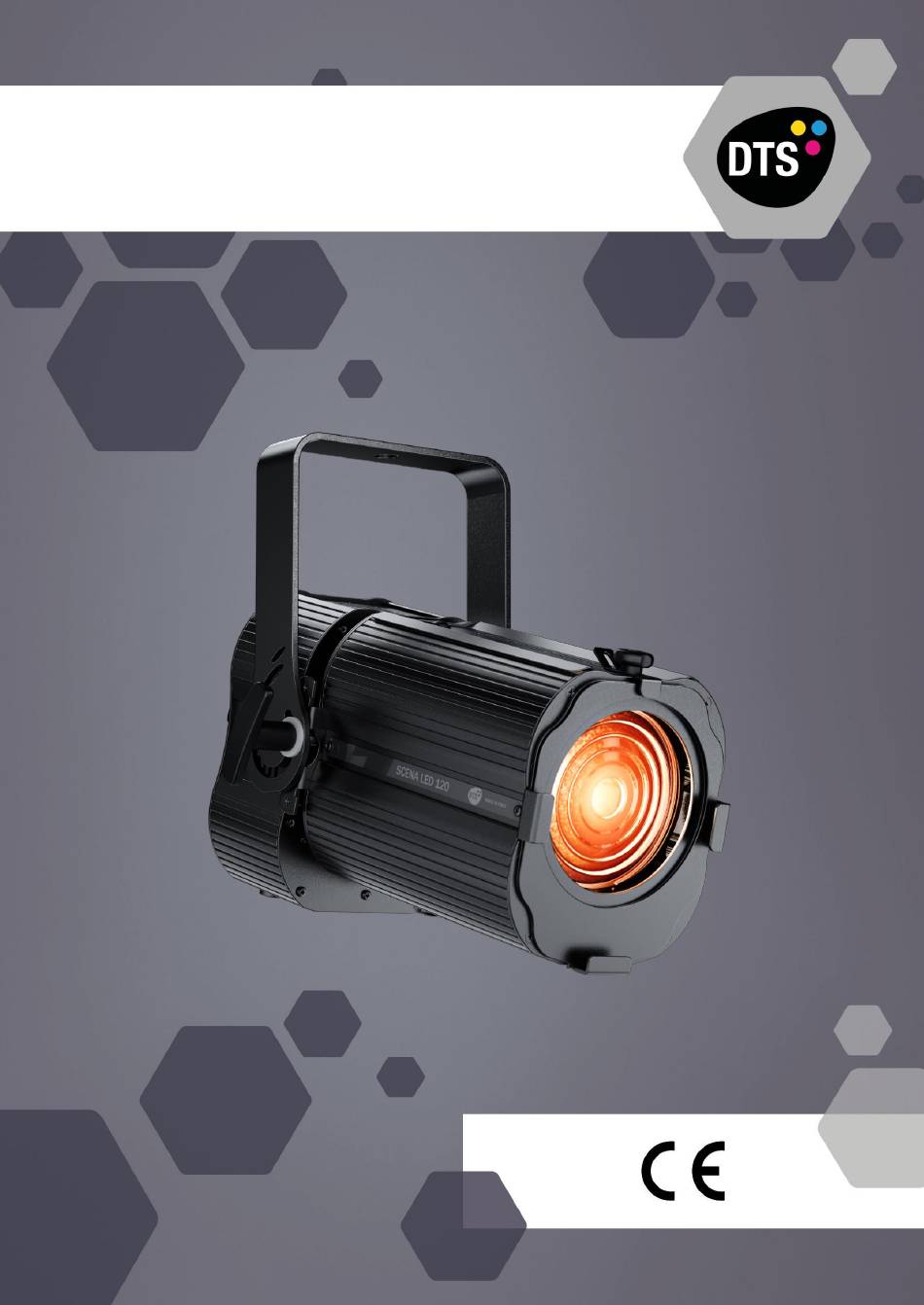

  • Page 1 SCENA LED 120 HQS USER’S MANUAL rel. 1.0 GB...
  • Page 2 Le informazioni contenute in questo documento sono state attentamente redatte e controllate. Tuttavia non è assunta alcuna responsabilità per eventuali inesattezze. Tutti i diritti sono riservati e questo documento non può essere copiato, fotocopiato, riprodotto per intero o in parte senza previo consenso scritto della D.T.S . D.T.S.

  • Page 3: Table Of Contents

    INDEX: 1- SYMBOLS ......................... 4 2- GENERAL WARNING ....................5 3- GENERAL WARRANTY CONDITIONS ..............5 4- TECHNICAL FEATURES ..................5 5- ACCESSORIES ......................7 6- IMPORTANT SAFETY INFORMATION ..............8 6.1 Fire prevention...................... 8 6.2 Prevention of electric shock .................. 8 6.3 Safety ........................

  • Page 4: 1- Symbols

    1- SYMBOLS Graphic symbols used on this manual: THIS SYMBOL INDICATES A HOT SURFACE THIS SYMBOL INDICATES ELECTRIC SHOCK RISK THIS SYMBOL INDICATES GENERAL RISK THIS SYMBOL INDICATES THE MAXIMUM OPERATING AMBIENT TEMPERATURE THIS SYMBOL MEANS “DO NOT STARE AT THE OPERATING LIGHT SOURCE” THIS SYMBOL INDICATES PHOTOBIOLOGICAL SAFETY THIS SYMBOL INDICATES THE EUROPEAN...

  • Page 5: 2- General Warning

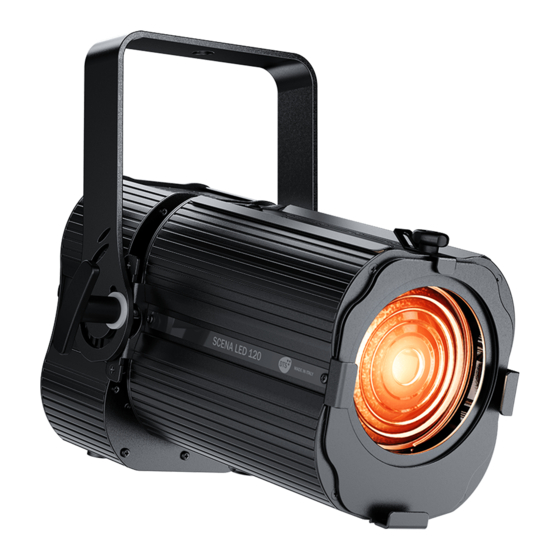

    Any functional or/and physical modification of the product is not allowed. 4- TECHNICAL FEATURES SCENA LED 120 HQS is a compact LED-based projector suitable for all demanding applications where a perfect color rendition is paramount, such as theatres and TV studios.
  • Page 6 Control DMX 512 / RDM 10 DMX channels (Default) 4-digit 7-segment LED display + 4 soft keys Internal operating system updatable via DTS Dongle Firmware Uploader Power supply Full-range 100-240Vac 50-60 Hz Power consumption: 120W Max Connections Power supply: PowerCON TRUE1 In/Out panel connectors...

  • Page 7: 5- Accessories

    • “C” Clamp G50 (Max. Load 10 Kg) (Code 0521A012) • “C” Clamp G60 (Max. Load 50 Kg) (Code 0521A004) • Safety cable 3 mm x 60 cm, max capacity load 60 Kg (Code 0521A010) • DTS Dongle firmware uploader (code 03.LA.206)

  • Page 8: 6- Important Safety Information

    The use of a thermal magnetic circuit breaker is recommended for each SCENA LED 120 HQS unit. Use only AC supplies 100-240V 50-60 Hz. SCENA LED 120 HQS should never be located in position exposed to rain or in areas of extreme humidity. A good air ventilation is essential for proper equipment work.

  • Page 9: 7- Installation

    7- INSTALLATION The unit is suitable for dry locations only. SCENA LED 120 HQS can be installed on a truss or on the ceiling. It is recommended the use of appropriate clamps to fix the unit to the mounting surface.

  • Page 10: 8- Input / Output Connections

    8- INPUT / OUTPUT CONNECTIONS DISPLAY PANEL DMX IN XLR 5-pole male panel connector DMX OUT XLR 5-pole female panel connector MAINS IN 100-240Vac 50-60 Hz PowerCON TRUE1 male panel connector FUSE T 2A 250V MAINS OUT 100-240Vac 50-60 Hz MAX 16A PowerCON TRUE1 female panel connector...

  • Page 11: 9- Dmx Signal Connection

    9- DMX SIGNAL CONNECTION: The unit operates using a digital DMX 512 signal. Connection between the controller and the unit or between units must be carried out using a two pair screened ø 0.5 mm. Ensure that the conductors do not touch each other. Do not connect the cable ground to the DMX connector chassis.

  • Page 12: Dmx Addresses

    9.1 DMX addresses SCENA LED 120 HQS can be used in 5 DMX modes: 1. 10 channels (Default) 2. RGBA (4 channels) 3. 6 channels 4. FINE (10 channels) 5. PROM (11 channels) In order to use the unit in 10 DMX channels mode (Default), set the following...

  • Page 13: 10- Rdm Functions

    10- RDM FUNCTIONS By using a RDM controller it is possible to set DMX address, DMX mode and other parameters. SCENA LED 120 HQS accepts the following RDM commands: RDM Device Model ID: 0x0D6F RDM PID DESCRIPTION RDM PID VALUE Category –...
  • Page 14 10- RDM FUNCTIONS RDM PID DESCRIPTION RDM PID VALUE Category – Manufacturer-Specific PIDs BOOST 0x9007 FANS SETTING 0x903A DISPLAY STANDBY 0x903C NO DMX ACTION 0x9002 RED NO DMX 0x9003 GREEN NO DMX 0x9004 BLUE NO DMX 0x9005 AMBER NO DMX 0x9006 INT NO DMX 0x900A...
  • Page 15 10- RDM FUNCTIONS RDM ADDITIONAL MESSAGEs: CURVE CURVE DESCRIPTION 1: LINEAR 2: QUADRATIC (default) 3: S-CURVE 4: GAMMA 2.2 OUTPUT RESPONSE TIME OUTPUT_RESPONSE_TIME_DESCRIPTION 0: SMOOTH OFF 1: SMOOTH 1 ( 25 ms) 2: SMOOTH 2 ( 50 ms) 3: SMOOTH 3 ( 75 ms) 4: SMOOTH 4 (100 ms) (default) 5: SMOOTH 5 (125 ms) 6: SMOOTH 6 (150 ms)
  • Page 16 10- RDM FUNCTIONS RDM ADDITIONAL MESSAGEs: MODULATION FREQUENCY MODULATION FREQUENCY DESCRIPTION 1: 610 Hz 2: 800 Hz 3: 1000 Hz (default) 4: 1500 Hz 5: 2000 Hz 6: 2500 Hz 7: 3000 Hz 8: 3500 Hz 9: 4000 Hz 10: 4500 Hz 11: 5000 Hz RDM MANUFACTURER-SPECIFIC PIDs: MANUFACTURER-SPECIFIC PID...
  • Page 17 10- RDM FUNCTIONS RDM MANUFACTURER-SPECIFIC PIDs: MANUFACTURER-SPECIFIC PID DESCRIPTION RED NO DMX Range 0-255 (Default = 128) Range 0-255 (Default = 128) GREEN NO DMX Range 0-255 (Default = 128) BLUE NO DMX Range 0-255 (Default = 128) AMBER NO DMX INT NO DMX Range 0-255 (Default = 128) RED FINE NO DMX...

  • Page 18: 11- Firmware Updating

    Updating the firmware release. Please follow the procedure below to perform the update: 1. Connect the DTS Dongle Firmware Uploader to a spare USB port on the PC. 2. Connect the unit DMX input to the DTS Dongle Firmware Uploader DMX output with a standard DMX cable and turn ON the unit.

  • Page 19: 12- Display Functions

    Using these options, it is possible to change the fixture’s setting. Changing the DTS settings can vary the functions of the unit so that it does not respond to the DMX 512 used to control it. Carefully follow the instructions below before carrying out any variations or selections.
  • Page 20 MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION     Display normal orientation for floor mounting position (Default)   Display inverted orientation for suspended mounting position    Display stand-by disabled (Default)   Display goes OFF after 10 seconds ...
  • Page 21 MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION     Automatic mode without DMX controller.    Chase with 16 steps previously created in REC mode.  Speed time and wait time values  (in seconds) selectable by user (Default = 10).
  • Page 22 MAIN LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION MENU     In DMX Recorder mode it is possible to create and store the scenes of the CHPR menu by   using an external DMX controller. The unit must be set to 10 DMX channels mode. ...

  • Page 23: 13- Rec Mode

    13- REC MODE DMX Recorder mode For the programming of ChPr by using a DMX controller, besides the 10 channels necessary to control the unit a further 3 DMX channels are needed. So that in RECORDER mode (via DMX) the unit will need 13 channels to be correctly programmed.

  • Page 24: 15- Error Messages

    15- ERROR MESSAGES ERROR SHOWED ON DISPLAY APPEARS WHEN  LED thermal sensor damaged (open or in short circuit). Unit immediately goes in black-out.  LED temperature detected over 70°C. Unit immediately goes in black-out.  Micro controller thermal sensor damaged (open or in short circuit).

  • Page 25: 16- Dmx Protocol

    16- DMX PROTOCOL 10 CHANNELS mode (Default) GREEN BLUE AMBER SHUTTER DIMMER DIMMER FINE MACRO COLOR FUNCTIONS Dmx Personality 1: RGBA 10 chans Name Dmx Levels Ranges And Functions 0..255 Proportional color from min to max GREEN 0..255 Proportional color from min to max BLUE 0..255 Proportional color from min to max...
  • Page 26 Dmx Personality 1: RGBA 10 chans Name Dmx Levels Ranges And Functions MACRO COLOR 0..9 No function 10..20 COL 1: GEL FILTER NO. 19 "FIRE" 255-14-0-17-LINEAR 255-1-0-1-QUADRATIC 21..25 COL 2: GEL FILTER NO. 20 "MEDIUM AMBER" 255-77-0-255-LINEAR 255-23-0-255-QUADRATIC 26..30 COL 3: GEL FILTER NO. 25 "SUNSET RED" 255-22-0-66-LINEAR 255-2-0-17-QUADRATIC 31..35...
  • Page 27 Dmx Personality 1: RGBA 10 chans Name Dmx Levels Ranges And Functions COL 28: GEL FILTER NO. 341 “PLUM” MACRO COLOR 151..155 210-86-24-60-LINEAR 173-29-3-14-QUADRATIC 156..235 RESERVED 236..237 RGB RAINBOW COLOR MIXING: SPEED 1 (6 SEC.) 238.239 RGB RAINBOW COLOR MIXING: SPEED 2 (15 SEC.) 240..241 RGB RAINBOW COLOR MIXING: SPEED 3 (30 SEC.) 242..243...
  • Page 28 Dmx Personality 1: RGBA 10 chans Name Dmx Levels Ranges And Functions FUNCTIONS 115..134 RESERVED 135..144 BOOST ON (DEFAULT) (staying on desired option for 5 seconds) 145..154 BOOST OFF 155..164 DISPLAY STAND-BY OFF (DEFAULT) 165..172 DISPLAY STAND-BY ON 173..174 DISPLAY STAND-BY FORCED ON NO DMX ACTION –...
  • Page 29 6 CHANNELS mode GREEN BLUE AMBER SHUTTER DIMMER Dmx Personality 3: RGBA 6 chans Name Dmx Levels Ranges And Functions 0..255 Proportional color from min to max GREEN 0..255 Proportional color from min to max BLUE 0..255 Proportional color from min to max AMBER 0..255 Proportional color from min to max...
  • Page 30 “PROM” mode (11 channels) RED FINE GREEN GREEN FINE BLUE BLUE FINE AMBER AMBER FINE DIMMER DIMMER FINE PROM Dmx Personality 5: PROM 11 chans Name Dmx Levels Ranges And Functions 0..255 Proportional color from min to max RED FINE 0..255 Proportional color from min to max GREEN...
  • Page 31 Dmx Personality 5: PROM 11 chans Name Dmx Levels Ranges And Functions PROM CREATE AND STORE CUSTOM (staying on desired CREATE: set ch11 to value 0..9 and set desired RGBA+Dimmer levels option for 5 seconds) STORE: set ch11 to value 230 and wait 5 seconds flashing RED x3: confirm CREATE AND STORE CUSTOM CREATE AND STORE CUSTOM 2 CREATE: set ch11 to value 0..9 and set desired RGBA+Dimmer levels...
  • Page 32 ISO 9001:2015 DTS quality system is certified 9001:2015 standard 0517I350 D.T.S. Illuminazione s.r.l. ● Via Fagnano Selve 12- 47843 Misano Adriatico (RN) Italy ● Tel.: +39 0541 611131 Fax +39 0541 611111 info@dts-lighting.it www.dts-lighting.it Product and specifications subjects to change without notice.
