Made in Italy
D.T.S. Illuminazione s.r.l.
Via Fagnano Selve 10/12/14
47843 Misano Adriatico (RN) ITALIA Tel +39 0541 611131 Fax +39 0541 611111 info@dts-lighting.it http://www.dts-lighting.it

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wonder D and is the answer not in the manual?

Questions and answers

Related Manuals for DTS Wonder D

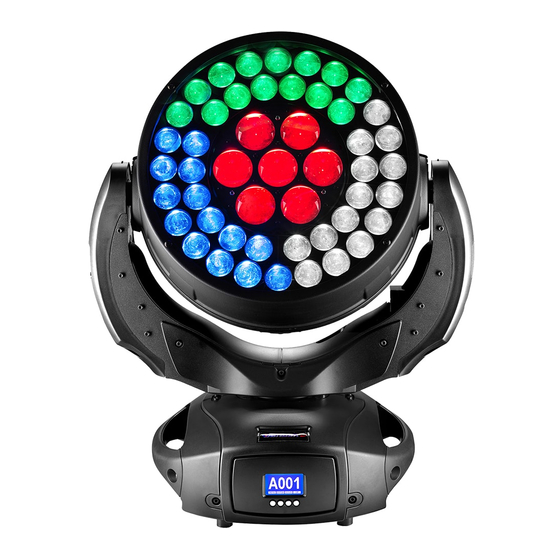

Summary of Contents for DTS Wonder D

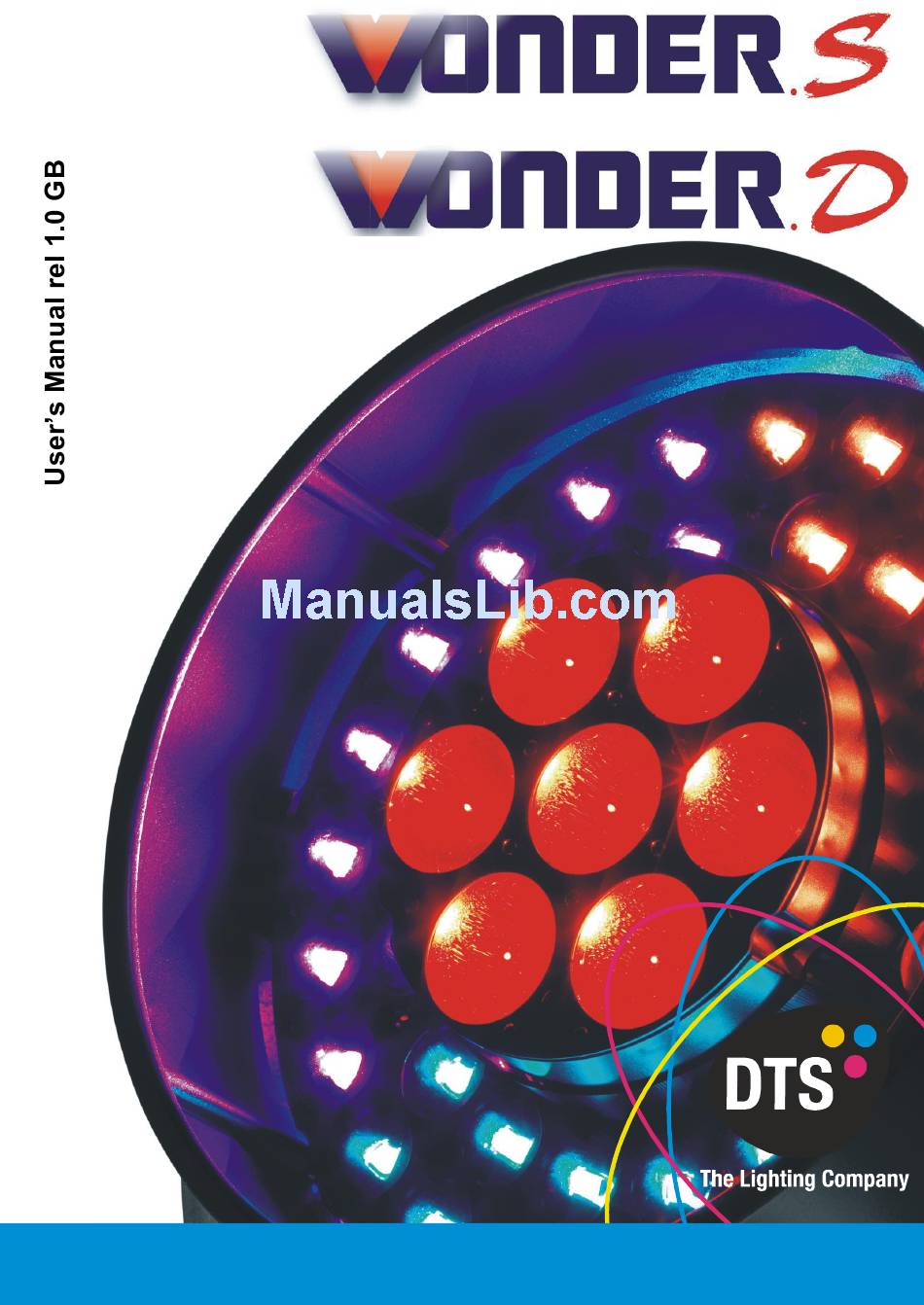

  • Page 1 Made in Italy D.T.S. Illuminazione s.r.l. Via Fagnano Selve 10/12/14 47843 Misano Adriatico (RN) ITALIA Tel +39 0541 611131 Fax +39 0541 611111 info@dts-lighting.it http://www.dts-lighting.it...
  • Page 2 Le informazioni contenute in questo documento sono state attentamente redatte e controllate. Tuttavia non è assunta alcuna responsabilità per eventuali inesattezze. Tutti i diritti sono riservati e questo documento non può essere copiato, fotocopiato, riprodotto per intero o in parte senza previo consenso scritto della D.T.S . D.T.S.

  • Page 3: Table Of Contents

    INDEX: 1 - SYMBOLS........................... 4 2 - GENERAL WARNING......................5 3 - GENERAL WARRANTY CONDITIONS ................5 4 - TECHNICAL FEATURES ....................5 5 - ACCESSORIES ........................7 6 - IMPORTANT SAFETY INFORMATION ................8 6.1 Fire prevention ....................... 8 6.2 Prevention of electric shock ...................

  • Page 4: Symbols

    1- SYMBOLS Graphic symbols used on this manual: THIS SYMBOL INDICATES A HOT SURFACE Never handle the unit until at least 10 minutes have elapsed since the projector was turned off. THIS SYMBOL INDICATES TEMPERATURE OF THE EXTERNAL SURFACE The maximum temperature that can be reached on the external surface of the fitting, in a thermally steady state, is 80°C (176°F).

  • Page 5: General Warning

    Each of these four areas has individual control of luminosity, colors and effects: it’s like having four LED fixtures in one. The unit is also available as WONDER D, offering an exclusive double concentric optical system featuring different lenses and linear zoom ranges (central: 3.5° - 52°...
  • Page 6 LCD graphic display + 4 soft-keys (control / management of the main parameters) Long-life auto-charging buffer battery ARTNET ready Wireless ready Updatable internal operating system Li-Fe display backup battery (WONDER D) DMX channels 34 ch (Default) or 38 ch Pan & Tilt WONDER S: Pan 540°: 2.5 sec.;...

  • Page 7: Accessories

    Operating ambient temperature -10° / 40° Weight 22 Kg International certifications Certification CE; LED Class: Class 2 LED product DIMENSIONS Packaging Dimensions (LxWxH) 610 x 410 x 695 mm Weight: 27 Kg 5- ACCESSORIES As standard * 1 x POWERCON male cable connector (Code 0520P014) * 1 x XLR 5 Pins male cable connector (Code 0508B066) * 1 x XLR 5 Pins female cable connector (Code 0508B065) * 2 x Omega clamp with “Fast Lock”...

  • Page 8: Important Safety Information

    6- IMPORTANT SAFETY INFORMATION 6.1 Fire prevention: -It is permissible to place the unit on normally flammable surfaces. Suitable for mounting on normally flammable materials surfaces greater than 200°C with some combustion time lag. -Minimum distance from the closest illuminable surface: 0,5 m. -Replace any blown or damaged fuses only with those of identical value (10AT).

  • Page 9: Voltage And Frequency

    7- VOLTAGE AND FREQUENCY The WONDER with electronic ballast can operate at 90-260Vac 50-60 Hz. 8- INSTALLATION WONDER may be either floor or ceiling mounted. For floor mounting installations, the WONDER is supplied with four rubber mounting feet on the base.

  • Page 10: Safety Cable

    8.1- Safety cable We recommend the use of a safety cable or chain connected to the WONDER and to the suspension truss in order to avoid the fixture accidentally falling should the main fixing point fail. Make sure that the iron cable or chain can bear the weight of the entire unit. You may attach the safety chain/cord to the attachment point (A) located on the base of the fixture, as shown in the picture below.

  • Page 11: Movement

    8.3- Movement Unlimited Pan rotation; Tilt 270° (1,5 sec.) . Do not place any obstructions in the path of the projector's movement. WARNING Do not place any object in the path of the projector’s movement Free Pan Rotation (‘FPR’) 8.4- Risk of fire Each fixture produces heat and must be installed in a well-ventilated place.

  • Page 12: Mains Connection

    9- MAINS CONNECTION WONDER with electronic ballast operates at 90-260V 50-60 Hz. Prior to connecting the unit to your mains supply, ensure that the model in your possession correctly matches the mains supply available. For connection purposes, ensure that your plug is capable of supporting 4 amps at 230 VOLT, or 10 amps at 90 VOLT each unit connected.

  • Page 13: Dmx Signal Connection

    10- DMX SIGNAL CONNECTION The unit operates using the digital DMX 512 signal. Connection between the mixer and the projector or between projectors must be carried out using a two pair screened ø 0.5 mm cable and a XLR 5 or 3 pins connector. Ensure that the conductors do not touch each other.

  • Page 14: Dmx Addresses

    10.1-DMX Addresses WONDER S / WONDER D can be used in 2 different DMX modes: 34 DMX control channels (Default) or 38 DMX control channels. Here below is described the DMX channels addressing for the controller when WONDER is set to 34 and 38 DMX control channels:...

  • Page 15: Display Functions

    DOWN DISPLAY FUNCTIONS The WONDER S / WONDER D display panel shows all the available functions . Using these functions, it is possible to change some of the parameters and add some functions. Changing the D.T.S. setting can vary the functions of the unit so that it does not respond to the DMX 512 used to control it.
  • Page 16 12- DISPLAY FUNCTIONS DISPLAY Display Flip Display Menu Up-Down ENTER Up-Down ENTER ON THE GROUND (Default) DISPLAY FLIP / STAND BY / CONTRAST SUSPENDED FLIP FLIP Display Flip: ON THE GROUND Reverses display's reading depending on the mounting position MENU ENTER DOWN (on the ground or suspended).
  • Page 17 System Info Menu Up-Down ENTER Up-Down ENTER Unit life time; LED Driver, UNIT LIFE: 0124H Zoom and Pan&Tilt PCBs LED: R10 software version; unit model ZOOM: R11 RDM: 000009B4 and RDM ID PT: R11 MODEL: WONDER D FPR MENU ENTER DOWN...
  • Page 18 12- DISPLAY FUNCTIONS LED LIFE HOURS LED LIFE HOURS: LED Life hours Menu Up-Down ENTER Up-Down ENTER CENTER RGBW LEDs life time R: 0024 0024 0024 0024 G: 0024 0024 0024 0024 B: 0024 0024 0024 0024 W: 0023 0023 0023 0023 MENU ENTER DOWN...

  • Page 19: Periodic Cleaning

    12- DISPLAY FUNCTIONS DEMO DEMO Demo Menu Up-Down ENTER Up-Down ENTER DIMMER Demo games without DMX controller Pan, Tilt, Zoom effect, Zoom speed, Dimmer, Shutter, MENU ENTER DOWN LED effect and LED speed values selectable by user DEFAULT Default Default Menu Up-Down ENTER...

  • Page 20: Periodic Controls

    14- PERIODIC CONTROLS Mechanical parts Periodically check all mechanical parts, replacing them if necessary. Electrical components Check all electrical components for correct earthing and proper connection of all connectors, refastening if necessary. Fuse replacement Locate the fuse, which protects the electronics, in the base of the WONDER.

  • Page 21: Dmx Protocol

    15- DMX PROTOCOL 34 CHANNELS MODE (Default) PAN msb PAN lsb TILT msb TILT lsb SPEED MOVEMENT PAN FPR SHUTTER DIMMER RED CENTER GREEN CENTER BLUE CENTER WHITE CENTER RED SECTOR 1 GREEN SECTOR 1 BLUE SECTOR 1 WHITE SECTOR 1 RED SECTOR 2 GREEN SECTOR 2 BLUE SECTOR 2...
  • Page 22 Parameter: PAN FPR DMX CHANNEL DMX value Function 000-010 Position mode 540° (standard path) 011-020 Position mode 360° ( 1 turn) 021-030 Position mode 720° ( 2 turns) 031-040 Position mode 1080° ( 3 turns) 041-050 Position mode 1440° ( 4 turns) 051-060 Position mode 1800°...
  • Page 23 DMX value Function 000-055 No function 056-105 Full (red-green-blue at full) 106-155 White DTS 156-205 Custom white create (RGB levels selectable by DMX) 206-255 White CTC (channel 26 CTC enabled) Parameter: CTC (Colour temperature correction) DMX CHANNEL IF CHANNEL 25 WHITE PRE-PROGRAMMED = WHITE CTC (DMX range value 206-255)
  • Page 24 Parameter: MACROS DMX CHANNEL DMX value Function 000-014 No function 015-024 Macro 1 (static) 025-034 Macro 2 (static) 035-044 Macro 3 (static) 045-054 Macro 4 (static) 055-064 Macro 5 (static) 065-074 Macro 6 (static) 075-084 Macro 7 (static) 085-094 Macro 8 (static) 095-104 Macro 9 (static) 105-114...
  • Page 25 Parameter: ZOOM CENTRE DMX CHANNEL IF CHANNEL 32 ZOOM MODE = INDEPENDENT ZOOM CONTROL (DMX range value 000-127) DMX value Function 000-255 ZOOM CENTRE Linear control from narrow to wide (3,5° - 52°) IF CHANNEL 32 ZOOM MODE = GLOBAL ZOOM CONTROL (DMX range value 128-255) DMX value Function 000-255...
  • Page 26 15- DMX PROTOCOL 38 CHANNELS MODE PAN msb PAN lsb TILT msb TILT lsb SPEED MOVEMENT PAN FPR SHUTTER DIMMER RED CENTER GREEN CENTER BLUE CENTER WHITE CENTER RED SECTOR 1 GREEN SECTOR 1 BLUE SECTOR 1 WHITE SECTOR 1 RED SECTOR 2 GREEN SECTOR 2 BLUE SECTOR 2...
  • Page 27 Parameter: SPEED MOVEMENT DMX CHANNEL DMX value Function 000-010 Standard 011-025 Fast movement 026-127 Vector mode from fast to slow 128-247 Variable time reaction to dmx signal (fast to slow) 248-255 Silent movement Parameter: PAN FPR DMX CHANNEL DMX value Function 000-010 Position mode...
  • Page 28 DMX value Function 000-055 No function 056-105 Full (red-green-blue at full) 106-155 White DTS 156-205 Custom white create (RGB levels selectable by DMX) 206-255 White CTC (channel 26 CTC enabled) Parameter: CTC (Colour temperature correction) DMX CHANNEL IF CHANNEL 25 WHITE PRE-PROGRAMMED = WHITE CTC (DMX range value 206-255)
  • Page 29 Parameter: MACROS DMX CHANNEL DMX value Function 000-014 No function 015-024 Macro 1 (static) 025-034 Macro 2 (static) 035-044 Macro 3 (static) 045-054 Macro 4 (static) 055-064 Macro 5 (static) 065-074 Macro 6 (static) 075-084 Macro 7 (static) 085-094 Macro 8 (static) 095-104 Macro 9 (static) 105-114...
  • Page 30 DMX CHANNEL Parameter: ZOOM CENTRE IF CHANNEL 32 ZOOM MODE = INDEPENDENT ZOOM CONTROL (DMX range value 000-127) DMX value Function 000-255 ZOOM CENTRE Linear control from narrow to wide (3,5° - 52°) IF CHANNEL 32 ZOOM MODE = GLOBAL ZOOM CONTROL (DMX range value 128-255) DMX value Function 000-255...
  • Page 31 DMX CHANNEL Parameter: RESET DMX value Function 000-015 No Function 016-075 PAN-TILT reset 076-135 ZOOM CENTRE reset 136-200 ZOOM SECTORS reset 201-239 ZOOM CENTRE + ZOOM SECTORS reset 240-255 TOTAL reset DMX CHANNEL Parameter: SHUTTER CENTRE Parameter: SHUTTER SECTOR 1 Parameter: SHUTTER SECTOR 2 Parameter: SHUTTER SECTOR 3 DMX value...
  • Page 32 ISO 9001:2008 standard D.T.S. products are designed and manufactured at the D.T.S. plants in italy *0517I262* 0517I262 D.T.S. Illuminazione s.r.l. – Via Fagnano Selve 10-12-14 47843 Misano Adriatico (RN) Italia Tel.: +39 0541 611131. Fax + 39 0541 611111 info@dts-lighting.it www.dts-lighting.it...
