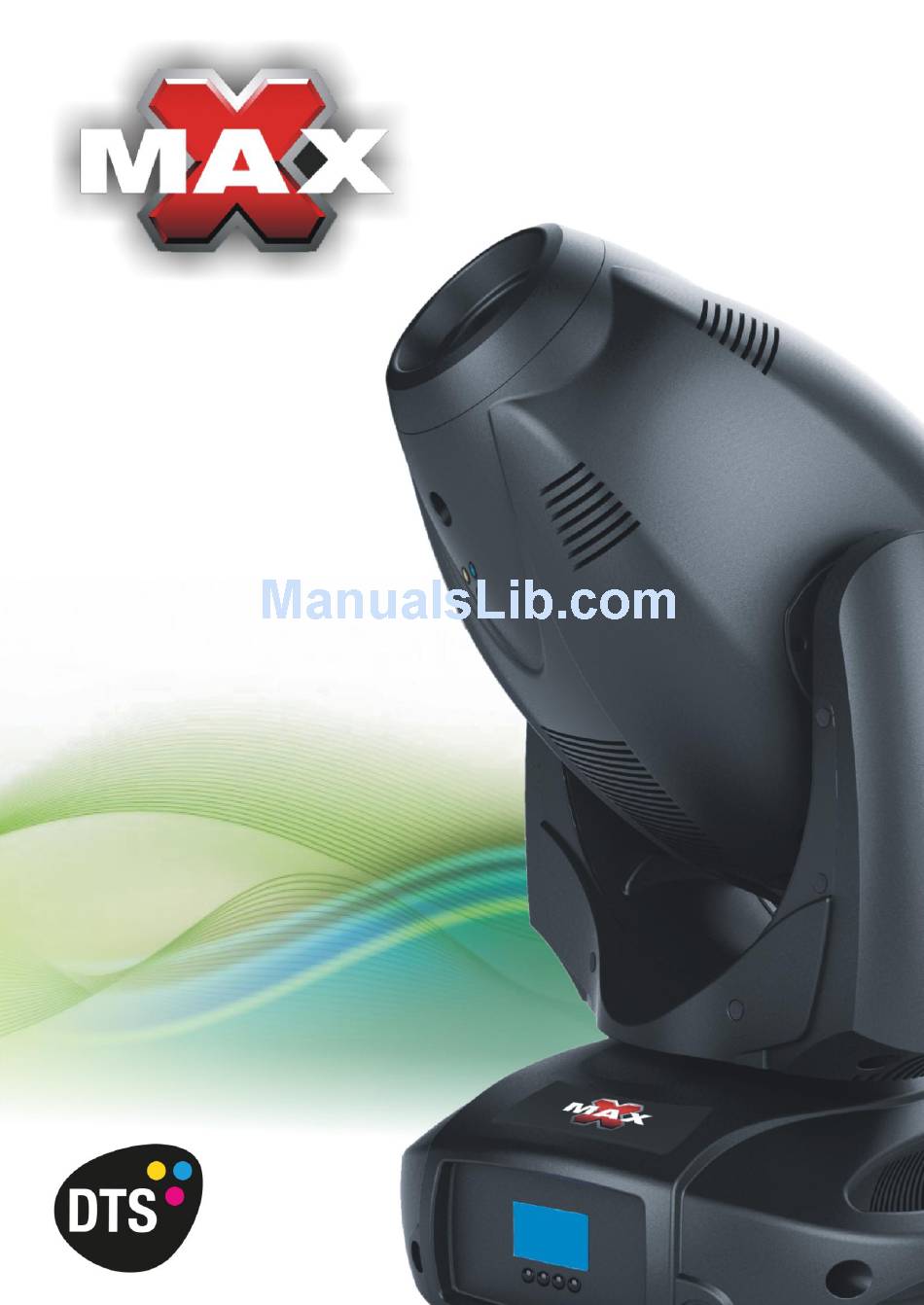

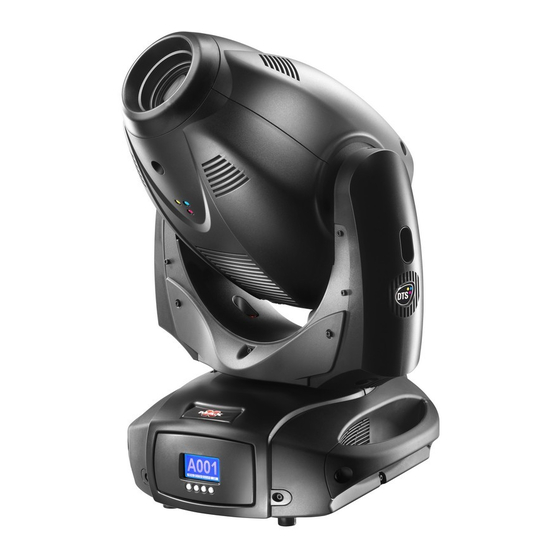

  • Page 1 User’s Manual rel 1.3 GB...
  • Page 2 Le informazioni contenute in questo documento sono state attentamente redatte e controllate. Tuttavia non è assunta alcuna responsabilità per eventuali inesattezze. Tutti i diritti sono riservati e questo documento non può essere copiato, fotocopiato, riprodotto per intero o in parte senza previo consenso scritto della D.T.S . D.T.S.

  • Page 3: Table Of Contents

    INDEX: 1 - SYMBOLS ........................ 4 2 - GENERAL WARNING ..................... 5 3 - GENERAL WARRANTY CONDITIONS ..............5 4 - TECHNICAL FEATURES ..................6 5 - ACCESSORIES ....................... 8 6 - IMPORTANT SAFETY INFORMATION ..............9 6.1 Fire prevention...................... 9 6.2 Prevention of electric shock ..................

  • Page 4: Symbols

    1- SYMBOLS Graphic symbols used on this manual: THIS SYMBOL INDICATES A HOT SURFACE THIS SYMBOL INDICATES ELECTRIC SHOCK RISK THIS SYMBOL INDICATES GENERAL RISK THIS SYMBOL MEANS “RADIATION FROM LAMP CAN CAUSE DAMAGE TO EYES AND SKIN” THIS SYMBOL INDICATES THE MAXIMUM OPERATING AMBIENT TEMPERATURE THIS SYMBOL MEANS “SUITABLE FOR INDOOR USE ONLY”...

  • Page 5: General Warning

    THIS SYMBOL INDICATES THE EUROPEAN COMMUNITY DIRECTIVE 2012/19/EC ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE) THIS SYMBOL MEANS “DISPOSE THE INTERNAL BATTERY AT THE END OF ITS LIFE ACCORDING TO THE REGULATION IN FORCE” 2- GENERAL WARNING Read the instruction contained in this user manual carefully, as they give important information regarding safety during installation, use and maintenance.

  • Page 6: Technical Features

    LCD graphic display + 4 soft-keys (control / management / monitoring of the main parameters) Controlled via DMX 512 and RDM standard digital communication protocols Internal operating system updatable via DTS Dongle Firmware Uploader 33 DMX channels (Default) or 24 DMX channels...
  • Page 7 Pan & Tilt 'FPR' system (DTS patent) Pan: limitless rotation, in both directions; 360° rotation in 1,56 sec.; Tilt: 270° (1,5 sec.) Tri-phase stepper motor technology for ultra-fast silent movements 16-bit resolution Selectable speed ranges Pan / Tilt lock Power supply...

  • Page 8: Accessories

    • Aliscaf clamp for tube diameter 50 mm - max. load 100Kg (Code 0521A008) • G-QUICK clamp Professional - max. load 100 Kg (Code 0521A037) • Safety cable (3mm x 60 cm) - max. load 60Kg (Code 0521A010) • DTS Dongle Firmware Uploader (Code 03.LA.206)

  • Page 9: Important Safety Information

    -The level of technology inherent in the MAX requires the assistance of specialised personnel for all servicing. Please refer to an authorised DTS service centre. -A good earth connection is essential for proper functioning of the projector.

  • Page 10: Safety

    6.4 Safety: -Risk Group 2 product according to EN 62471. CAUTION. Do not look directly into the light output and do not view the light beam with optical instruments or any device that may concentrate the beam. May be harmful to the eyes and skin. -Do not stare at the operating light source.

  • Page 11: Mounting / Replacing The Lamp

    7- MOUNTING / REPLACING THE LAMP WARNING Turn off the lamp before opening the unit head covers. Never look directly at the lamp when it’s lit. Discharge lamps emits UV rays; radiation from this lamp can cause damage to eyes and skin. Let the projector cool for at least 20 minutes.
  • Page 12 1) Loosen the 3 “¼ turn” screws which fix the head covers on both sides (picture 1) . PICTURE 1 2) Once loosened the screws, simply lift the covers to access the internal components (picture 2). PICTURE 2...
  • Page 13 3) Using a phillips screwdriver, loose the indicated 2 screws which fix the lamp fan assembly on both sides and remove it (picture 3); PICTURE 3 4) Unplug the two indicated fast-on cable connectors (picture 4), then loose the 4 screws from the metal plates that fix the old lamp (picture 5) and remove it.
  • Page 14 PICTURE 5 5) Put in place the new lamp in the lamp support. Place the lamp terminals on the fan air conveyor side (Picture 6). PICTURE 6 6) Lamp sub-assembly can now be re-installed, following backward all the above listed steps.

  • Page 15: Voltage And Frequency

    8- VOLTAGE AND FREQUENCY MAX operates at 100-240Vac 50-60 Hz. 9- INSTALLATION MAX may be either floor or ceiling mounted. For floor mounting installations, the MAX is supplied with four rubber mounting feet on the base. For ceiling mounted installations, we reccomend the use of appropriate clamps to fix the unit to the mounting surface.
  • Page 16 The supporting structure from which the unit is hung should be capable of bearing the weight of the unit, as should any clamps used to hang it. The structure should also be sufficiently rigid so as not to move or shake whilst the MAX is moving.

  • Page 17: Safety Cable

    9.1- Safety cable We recommend the use of a safety cable or chain connected to the MAX and to the suspension truss in order to avoid the fixture accidentally falling should the main fixing point fail. Make sure that the iron cable or chain can bear the weight of the entire unit. You may attach the safety chain/cord to the attachment point (A) located on the base of the fixture, as shown in the picture below.

  • Page 18: Movement

    9.3- Movement Pan: unlimited rotation; Tilt: 270° (1,5 sec.). Do not place any obstructions in the path of the projector's movement. WARNING Do not place any object in the path of the projector’s movement 9.4- Risk of fire Each fixture produces heat and must be installed in a well-ventilated place. It is permissible to place the unit on normally flammable surfaces.

  • Page 19: Mains Connection

    10- MAINS CONNECTION MAX operates at 100-240Vac 50-60 Hz. Prior to connecting the unit to your mains supply, ensure that the model in your possession correctly matches the mains supply available. For connection purposes, ensure that your plug is capable of supporting 2,5 amps at 230 Vac, or 6 amps at 90 Vac each unit connected.

  • Page 20: Dmx Signal Connection

    11- DMX SIGNAL CONNECTION The unit operates using the digital DMX 512 signal. Connection between the mixer and the projector or between projectors must be carried out using a two pair screened ø 0.5 mm cable and a XLR 5 or 3 pins connector. Ensure that the conductors do not touch each other.

  • Page 21: Dmx Addresses

    Updating the firmware release. Please follow the procedure below to perform the update: 1. Connect the DTS Dongle Firmware Uploader to a spare USB port on the PC. 2. Connect the unit DMX input to the DTS Dongle Firmware Uploader DMX output with a standard DMX cable and turn ON the unit.

  • Page 22: Display Functions

    13- DISPLAY FUNCTIONS DISPLAY MENU ENTER DOWN DISPLAY FUNCTIONS The MAX display panel shows all the available functions . Using these functions, it is possible to change some of the parameters and add some functions. Changing the D.T.S. setting can vary the functions of the unit so that it does not respond to the DMX 512 used to control it.

  • Page 23: Dmx Mode

    13- DISPLAY FUNCTIONS PAN SPEED Pan Speed control Pan Speed Menu Up-Down ENTER Up-Down ENTER (1-4) Default = 4 PAN SPEED Pan Speed control (1-4) MENU ENTER DOWN Tilt Speed control TILT SPEED Tilt Speed Menu Up-Down ENTER Up-Down ENTER (1-4) Default = 4 TILT SPEED...
  • Page 24 13- DISPLAY FUNCTIONS BY DMX = Lamp ON / LAMP Lamp ENTER Menu Up-Down ENTER Up-Down via DMX (Default) LAMP BY DMX FLIP ALWAYS ON = Forced Lamp always ON, Lamp always OFF, lamp ON-OFF selectable via DMX ALWAYS OFF = Forced and lamp life time reset MENU ENTER...
  • Page 25 13- DISPLAY FUNCTIONS GOBO ROTATION OFF = Default Gobo Rotation Menu Up-Down ENTER Up-Down ENTER DURING GOBO SCROLLING GOBO ROTATION Gobo rotation during gobo scrolling for rotating gobo wheel MENU ENTER DOWN GOBO 9 OPEN-STUDIO = To have Gobo 9 Menu Up-Down ENTER...
  • Page 26 13- DISPLAY FUNCTIONS R. GOBO SPEED Fastest speed (Default) R. Gobo Speed Menu Up-Down ENTER Up-Down ENTER or Fast speed FASTEST ROTATING GOBO SPEED To decrease the rotating gobo wheel speed from fastest (default) to fast MENU ENTER DOWN SYSTEM INFO SYSTEM INFO System Info Menu...

  • Page 27: Error Messages

    13- DISPLAY FUNCTIONS DEFAULT Default Default Menu Up-Down ENTER Up-Down ENTER To restore main settings RESTORE MAIN SETTINGS DEFAULT To restore main settings MENU ENTER DOWN DEFAULT RESTORE MAIN SETTINGS SURE? PRESS ENTER TO CONFIRM PRESS MENU TO CANCEL MENU ENTER DOWN 14- ERROR MESSAGES TILT ERROR...
  • Page 28 14- ERROR MESSAGES ERROR ERROR ERROR ERROR FIXED GOBO COLOUR WHEEL IRIS ANIMATION MENU ENTER DOWN MENU ENTER DOWN MENU ENTER DOWN MENU ENTER DOWN FIXED GOBO WHEEL COLOUR WHEEL IRIS POSITION ERROR ANIMATION WHEEL POSITION ERROR POSITION ERROR POSITION ERROR ERROR ERROR ERROR...

  • Page 29: Opening The Projector Housing

    15- OPENING THE PROJECTOR HOUSING It is possible to inspect the inside of the projector by removing the cover as indicated below. ATTENTION REMOVE MAINS POWER PRIOR TO ACCESSING THE PROJECTOR’S INTERNAL COMPONENTS. 1) Loosen the 3 “¼ turn” screws which fix the head covers on both sides (picture 1) . 2) Once loosened the screws, simply lift the covers to access the internal components (picture 2).

  • Page 30: Removing / Replacing The Gobos

    Also fixed gobos are interchangeable. REPLACEMENT GOBOS Replacement gobos must be made only of glass with special high temperature treatment. Please refer to an authorised DTS dealer for details. Gobo dimensions are as follows: Rotating gobos ø...

  • Page 31: Periodic Cleaning

    Periodically check the lubrification of all components, particularly the parts subject to high temperatures. If necessary, lubrificate with suitable lubrificant, available from your DTS distributor. Check the tension of the belts and adjust it if necessary. Electrical components Check all electrical components for correct earthing and proper connection of all connectors, refastening if necessary.

  • Page 32: Dmx Protocol

    19- DMX PROTOCOL 33 CHANNELS MODE PAN msb PAN lsb TILT msb TILT lsb SPEED MOVEMENT FPR MODE DIMMER SHUTTER COLOUR COLOUR MODE CYAN MAGENTA YELLOW SPEED CMY MACRO CMY GOBO GOBO MODE GOBO ROTATION / INDEX GOBO INDEX FINE GOBO SHAKE FIXED GOBO FIXED GOBO SHAKE...
  • Page 33 Parameter: FPR MODE DMX CHANNEL DMX value Function 000-010 Position mode 540° (standard path) 011-020 Position mode 360° ( 1 turn) 021-030 Position mode 720° ( 2 turns) 031-040 Position mode 1080° ( 3 turns) 041-050 Position mode 1440° ( 4 turns) 051-060 Position mode 1800°...
  • Page 34 DMX CHANNEL Parameter: COLOUR FULL COLOUR (if channel 10 “COLOUR MODE” = DMX range value 0-63) DMX value Function 000-013 Colour 1 014-027 Colour 2 028-041 Colour 3 042-055 Colour 4 056-069 Colour 5 070-083 Colour 6 084-097 Colour 7 098-111 Colour 8 112-125...
  • Page 35 Parameter: CYAN DMX CHANNEL DMX value Function 000-255 Proportional colour DMX CHANNEL Parameter: MAGENTA DMX value Function 000-255 Proportional colour Parameter: YELLOW DMX CHANNEL DMX value Function 000-255 Proportional colour Parameter: CTO DMX CHANNEL DMX value Function 000-007 No function 008-255 Linear CTO from min to max Parameter: SPEED CMY...
  • Page 36 DMX CHANNEL Parameter: GOBO DMX value Function 000-020 Open 021-041 Gobo 1 042-062 Gobo 2 063-083 Gobo 3 084-104 Gobo 4 105-125 Gobo 5 126-146 Gobo 6 147-167 Gobo 7 168-188 Gobo 8 189-207 Gobo 9 208-213 Speed rotation 1 min 214-219 Speed rotation 2 220-225...
  • Page 37 Parameter: FIXED GOBO DMX CHANNEL DMX value Function 000-018 Open 019-037 Gobo 1 038-056 Gobo 2 057-075 Gobo 3 076-094 Gobo 4 095-113 Gobo 5 114-132 Gobo 6 133-151 Gobo 7 152-170 Gobo 8 171-189 Gobo 9 190-207 Gobo 10 208-213 Speed rotation 1 min 214-219...
  • Page 38 Parameter: ANIMATION DMX CHANNEL DMX value Function 000-009 No function 010-255 Linear animation position DMX CHANNEL Parameter: FROST DMX value Function 000-127 No function 128-255 Frost inserted DMX CHANNEL Parameter: PRISM DMX value Function 000-127 No effect 128-255 Prism inserted Parameter: PRISM/ANIMATION ROTATION DMX CHANNEL DMX value...
  • Page 39 19- DMX PROTOCOL 24 CHANNELS MODE PAN msb PAN lsb TILT msb TILT lsb SPEED MOVEMENT FPR MODE DIMMER SHUTTER COLOUR CYAN MAGENTA YELLOW GOBO GOBO ROTATION / INDEX FIXED GOBO IRIS ANIMATION FROST PRISM PRISM / ANIMATION ROTATION FOCUS ZOOM RESET + LAMP Parameter: PAN msb...
  • Page 40 Parameter: FPR MODE DMX CHANNEL DMX value Function 000-010 Position mode 540° (standard path) 011-020 Position mode 360° ( 1 turn) 021-030 Position mode 720° ( 2 turns) 031-040 Position mode 1080° ( 3 turns) 041-050 Position mode 1440° ( 4 turns) 051-060 Position mode 1800°...
  • Page 41 Parameter: COLOUR DMX CHANNEL DMX value Function 000-004 Colour 1 005-009 Colour 1-2 010-014 Colour 2 015-019 Colour 2-3 020-024 Colour 3 025-029 Colour 3-4 030-034 Colour 4 035-039 Colour 4-5 040-044 Colour 5 045-049 Colour 5-6 050-054 Colour 6 055-059 Colour 6-7 060-064...
  • Page 42 Parameter: CYAN DMX CHANNEL DMX value Function 000-255 Proportional colour DMX CHANNEL Parameter: MAGENTA DMX value Function 000-255 Proportional colour Parameter: YELLOW DMX CHANNEL DMX value Function 000-255 Proportional colour DMX CHANNEL Parameter: CTO DMX value Function 000-007 No function 008-255 Linear CTO from min to max Parameter: GOBO...
  • Page 43 Parameter: FIXED GOBO DMX CHANNEL DMX value Function 000-018 Open 019-037 Gobo 1 038-056 Gobo 2 057-075 Gobo 3 076-094 Gobo 4 095-113 Gobo 5 114-132 Gobo 6 133-151 Gobo 7 152-170 Gobo 8 171-189 Gobo 9 190-207 Gobo 10 208-213 Speed rotation 1 min 214-219...
  • Page 44 Parameter: PRISM/ANIMATION ROTATION DMX CHANNEL DMX value Function 000-009 Stop 010-127 Left rotation from fast to slow 128-137 Stop 138-255 Right rotation from slow to fast Parameter: FOCUS DMX CHANNEL DMX value Function 000-255 Linear focus Parameter: ZOOM DMX CHANNEL DMX value Function 000-255...

  • Page 45: Rotating Gobo Wheel

    20- ROTATING GOBO WHEEL OPEN STUDIO GOBO 2 DICRO GOBO 1 DICRO GOBO 3 DICRO GOBO 4 DICRO D.T.S. Code: D.T.S. Code: D.T.S. Code: D.T.S. Code: 0516G078 0516G079 0516G080 0516G081 GOBO 5 DICRO GOBO 6 DICRO GOBO 7 DICRO GOBO 8 DICRO D.T.S.

  • Page 46: Fixed Gobo Wheel

    GOBO 9 DICRO ROTATING GOBO PROVIDED INTO THE UNIT BOX D.T.S. Code: 0516G086 21- FIXED GOBO WHEEL GOBO 1 DICRO GOBO 2 DICRO GOBO 3 DICRO GOBO 4 DICRO GOBO 5 DICRO D.T.S. Code: D.T.S. Code: D.T.S. Code: D.T.S. Code: D.T.S.

  • Page 47: Colour Wheel

    22- COLOUR WHEEL COLOUR 1 COLOUR 2 COLOUR 3 COLOUR 4 COLOUR 5 COLOUR 6 GREEN PINK FULL CTO FULL CTB YELLOW 1 D.T.S. Code: D.T.S. Code: D.T.S. Code: D.T.S. Code: D.T.S. Code: D.T.S. Code: (0507C059.D14) (0507C068.D14) (0507C071.D14) (0507C061.D14) (0507C065.D14) (0507C060.D14) COLOUR 7 COLOUR 8...
  • Page 48 *0517I209* ● D.T.S. Illuminazione s.r.l. Via Fagnano Selve 12-14 47843 Misano Adriatico (RN) Italy ● Tel.: +39 0541 611131 Fax +39 0541 611111 ● info@dts-lighting.it www.dts-lighting.it 0517I209...
