Summary of Contents for DTS SCENA LED 200 Series

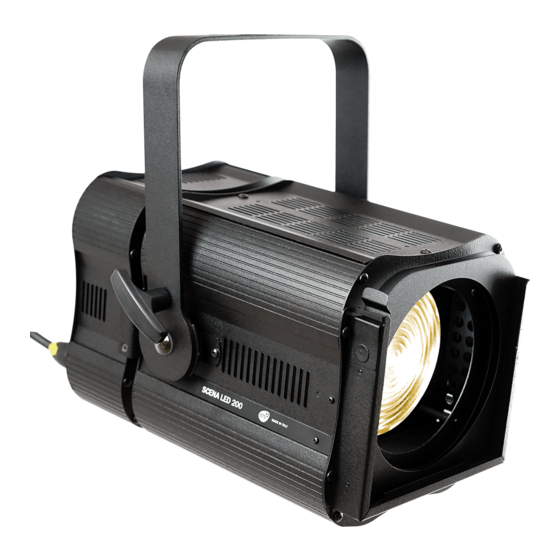

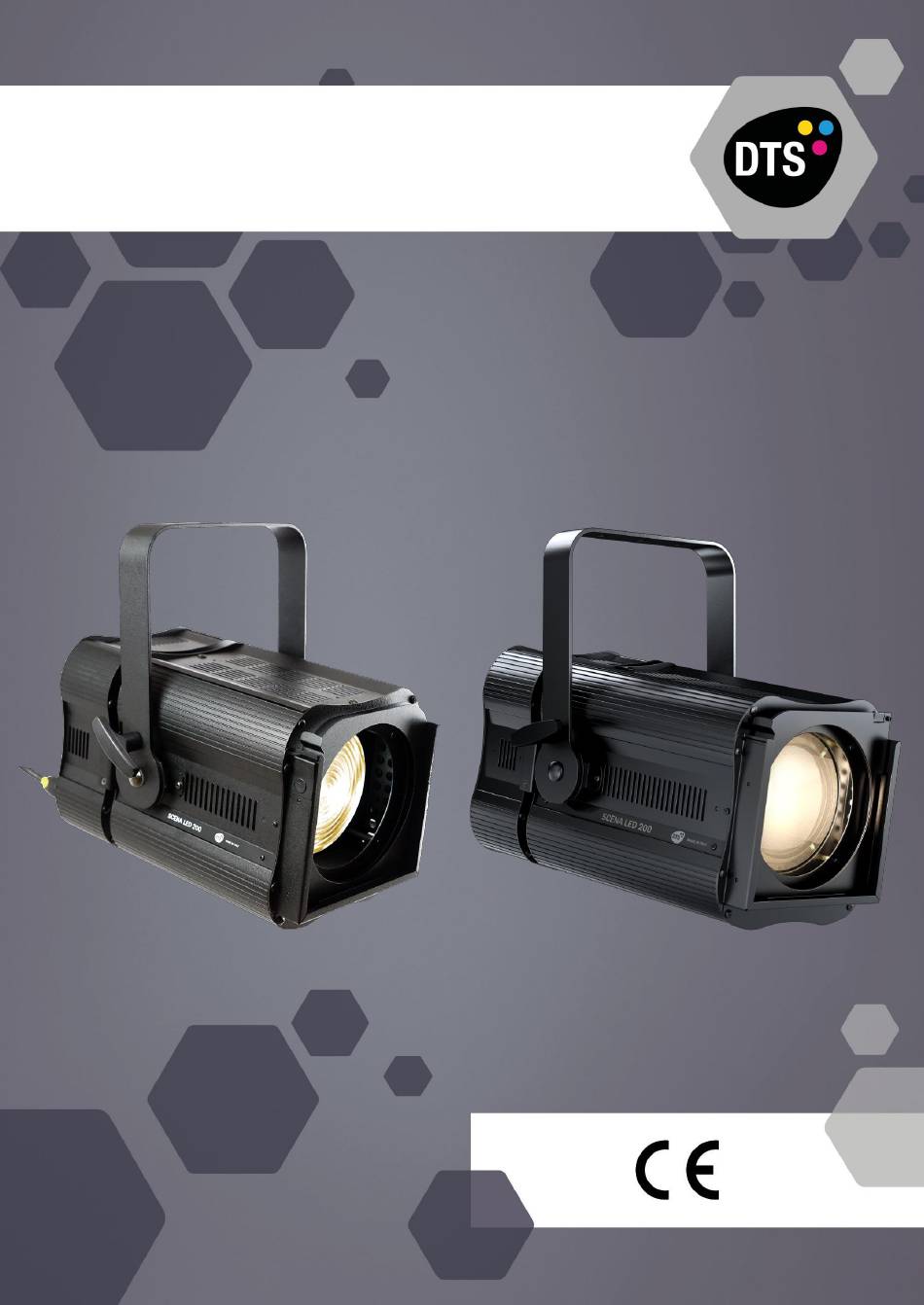

- Page 1 SCENA LED 200 FR version PC version USER’S MANUAL rel. 1.3 GB...
- Page 2 Le informazioni contenute in questo documento sono state attentamente redatte e controllate. Tuttavia non è assunta alcuna responsabilità per eventuali inesattezze. Tutti i diritti sono riservati e questo documento non può essere copiato, fotocopiato, riprodotto per intero o in parte senza previo consenso scritto della D.T.S . D.T.S.
-
Page 3: Table Of Contents
INDEX: 1- SYMBOLS ......................... 4 2- GENERAL WARNING ....................4 3- GENERAL WARRANTY CONDITIONS ..............4 4- TECHNICAL FEATURES ..................5 5- ACCESSORIES ......................8 6- IMPORTANT SAFETY INFORMATION ..............9 6.1 Fire prevention...................... 9 6.2 Prevention of electric shock .................. 9 6.3 Safety ........................ -
Page 4: 1- Symbols
1- SYMBOLS Graphic symbols used on this manual: THIS SYMBOL INDICATES A HOT SURFACE THIS SYMBOL INDICATES ELECTRIC SHOCK RISK THIS SYMBOL INDICATES GENERAL RISK THIS SYMBOL INDICATES THE MAXIMUM OPERATING AMBIENT TEMPERATURE THIS SYMBOL MEANS “DO NOT STARE AT THE OPERATING LIGHT SOURCE” THIS SYMBOL INDICATES PHOTOBIOLOGICAL SAFETY THIS SYMBOL INDICATES THE EUROPEAN... -
Page 5: 4- Technical Features
DMX 512 / RDM or Manual Control 4 DMX channels (Default), 1 DMX channel or “FINE” Mode 4-digit 7-segment LED display + 4 soft keys Internal operating system updatable via DTS Dongle Firmware Uploader Power supply Full-range 100-240Vac 50-60 Hz Power consumption: 200W Max Power Factor: PF>0.94... - Page 6 DIMENSIONS SCENA LED 200 FR...
- Page 7 DMX 512 / RDM or Manual Control 4 DMX channels (Default), 1 DMX channel or “FINE” Mode 4-digit 7-segment LED display + 4 soft keys Internal operating system updatable via DTS Dongle Firmware Uploader Power supply Full-range 100-240Vac 50-60 Hz Power consumption: 200W Max Power Factor: PF>0.94...
-
Page 8: 5- Accessories
Optional (on request) - Barndoor black finishing (code 03.TBD02) - “C” Clamp G60 (Max. Load 50 Kg) (code 0521A004) - Safety cable 3 mm x 60 cm, max capacity load 60 Kg (code 0521A010) - DTS Dongle Firmware Uploader (code 03.LA.206) -
Page 9: 6- Important Safety Information
6- IMPORTANT SAFETY INFORMATION 6.1 Fire prevention: Replace any blown or damaged fuses only with those of identical value: T 3.15A 250V. 6.2 Prevention from electric shock: High voltage is present inside the unit. Unplug the unit prior to performing any operation which involves touching the inside of the unit. -
Page 10: 7- Installation
7- INSTALLATION The unit is suitable for dry locations only. SCENA LED 200 can be installed on a truss or on the ceiling. It is recommend the use of appropriate clamps to fix the unit to the mounting surface. ATTENTION: A safety cable (code 0521A010) must be securely fixed to the unit’s mounting bracket and to the support structure of the projector as shown in the picture below. -
Page 11: 8- Input / Output Connections
8- INPUT / OUTPUT CONNECTIONS... -
Page 12: 9- Dmx Signal Connection
9- DMX SIGNAL CONNECTION: The unit operates using a digital DMX 512 signal. Connection between the controller and the unit or between units must be carried out using a two pair screened ø 0.5 mm. Ensure that the conductors do not touch each other. Do not connect the cable ground to the DMX connector chassis. -
Page 13: Dmx Addresses
9.1 DMX addresses SCENA LED 200 can be controlled with 4 DMX channels (Default), 1 DMX channel or in “FINE” mode (2 DMX channels). In order to use the unit in 4 DMX channels mode (Default), set the following addresses on the mixer: Projector 1 A001... -
Page 14: 10- Rdm Functions
10- RDM FUNCTIONS By using a RDM controller it is possible to set DMX address, DMX mode and other parameters. SCENA LED 200 accepts the following RDM commands: DEVICE_INFO To read the following parameters: • RDM protocol version • Fixture model ID •... -
Page 15: 11- Firmware Updating
Using these options, it is possible to change the fixture’s setting. Changing the DTS settings can vary the functions of the unit so that it does not respond to the DMX 512 used to control it. Carefully follow the instructions below before carrying out any variations or selections. - Page 16 FIRMWARE RELEASE 1.03 RDM Device Model ID 0x0D42 0x01 “7 CHANNELS” DMX Personality IDs 0x02 “2 CHANNELS” 0x03 “FINE” MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION Display normal orientation for floor mounting position (Default) ...
-
Page 17: 13- Manual Mode
MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION To restore default settings LED temperature monitoring Micro controller temperature monitoring Output 1 of LED Driver board temperature monitoring ... -
Page 18: 15- Dmx Protocol
15- DMX PROTOCOL 4 CHANNELS MODE (Default) SHUTTER DIMMER DIMMER FINE FUNCTIONS Name DMX levels SHUTTER 0..9 Black-out 10..19 Open 20..29 Black-out 30..119 Strobe (from 3,27 s to 30 ms) 120..149 Pulse up (from 42,6 s to 120 ms) 150..179 Pulse down (from 42,6 s to 120 ms) 180..229 Random strobe... - Page 19 Name DMX levels FUNCTIONS 85..104 OUTPUT FREQUENCY 610 Hz (DEFAULT) (staying on desired OUTPUT FREQUENCY 800 Hz option for 5 seconds) OUTPUT FREQUENCY 1000 Hz OUTPUT FREQUENCY 1500 Hz OUTPUT FREQUENCY 2000 Hz OUTPUT FREQUENCY 2500 Hz OUTPUT FREQUENCY 3000 Hz OUTPUT FREQUENCY 3500 Hz OUTPUT FREQUENCY 4000 Hz OUTPUT FREQUENCY 4500 Hz...
- Page 20 ISO 9001:2015 *0517I286* DTS quality system is certified 9001:2015 standard 0517I286 D.T.S. Illuminazione s.r.l. ● Via Fagnano Selve 12- 47843 Misano Adriatico (RN) Italy ● Tel.: +39 0541 611131 Fax +39 0541 611111 info@dts-lighting.it www.dts-lighting.it...
