S06 INSTALLATION INSTRUCTION

1. See Receiving The Air Conditioner and Handling and Testing The Air Conditioner on page 9.
2. Using the cutout template provided with the unit, prepare the enclosure. See Figure 13 and Figure
14. The front of the unit requires a half meter clearance for proper ��� . Five centimeters is
required on each side of the unit. To avoid condensate ov��� , unit must be mounted within 3° of
level.
3. Refer to mounting instructions on page 11.
4. Adjust controller to desired cabinet temperature. Refer to Displaying and Changing Program
Variables on page 16 for controller adjustment and operation.
11.50
292
21.65
550
7.74
196
.315
8
(4)

Surface Mount

C-NET INDUSTRIAL LTD. | +44(0)121 544 8608 | INFO@CNET-IS.CO.UK | WWW.CNET-IS.CO.UK
89116616
9.38
238
19.44
494
(2)
9.61
244
(2)
11.02
280

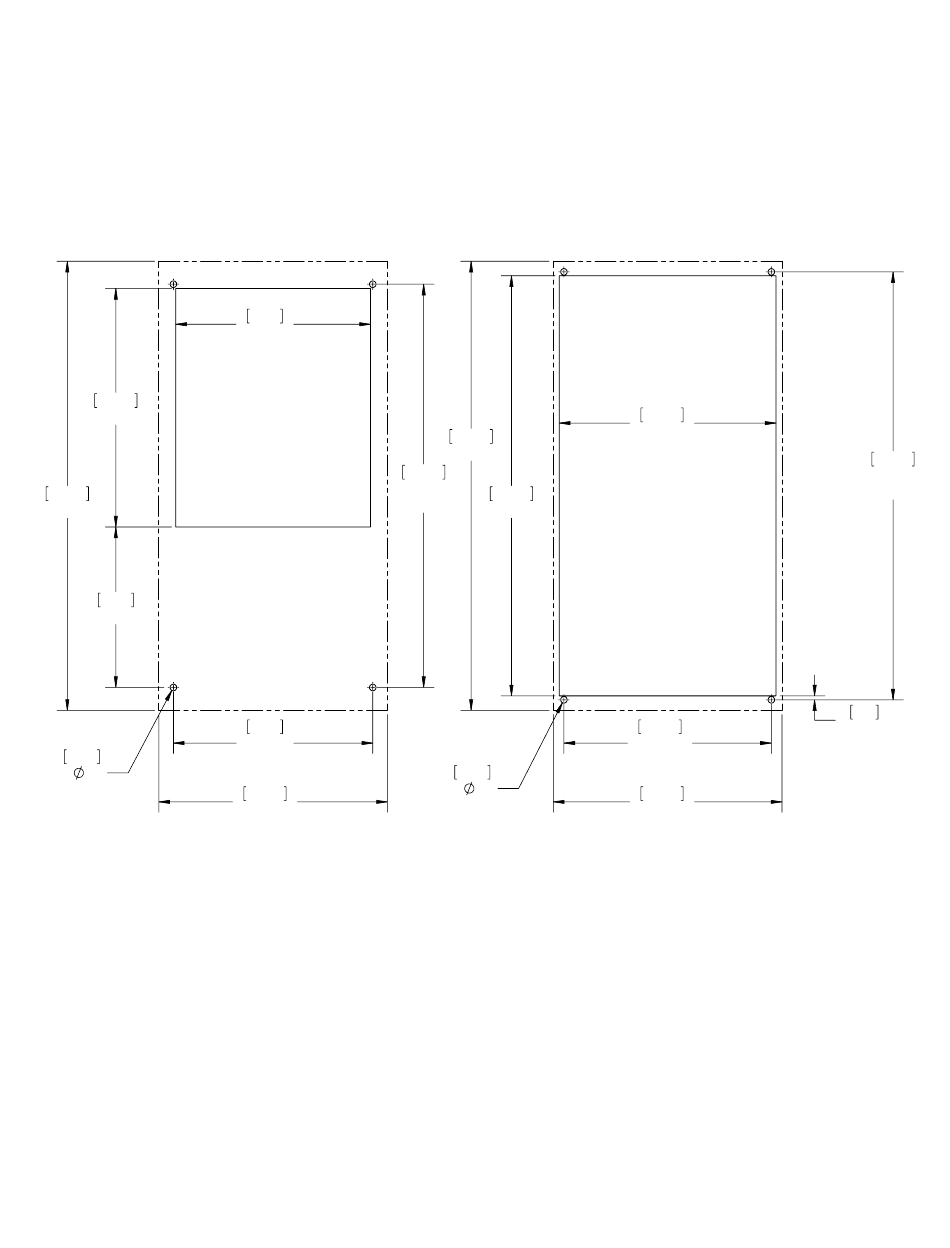

S06 300W Cutout Drawing

Dashed Lines Represent The Air Conditioner
21.65
550
20.25
514
.315
8
(4)
Figure 13
10.44
265
10.00
254
(2)
11.02
280

Full Recess Mount

20.63
524
(2)
.19
5
