Heavy duty probe, Dew point, Type K Temp.
RS232/USB computer interface
HUMIDITY CONTENT
METER
Model : MS-7011
Your purchase of this HUMIDITY CONTENT METER marks a
step forward for you into the field of precision measurement.
Although this HUMIDITY CONTENT METER is a complex and
delicate instrument, its durable structure developed. Please
read the following instructions carefully and always keep this
manual within easy reach.
OPERATION MANUAL
3, Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529
mrc@mrclab.com
MRC. 2.20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS-7011 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lutron Electronics MS-7011

Summary of Contents for Lutron Electronics MS-7011

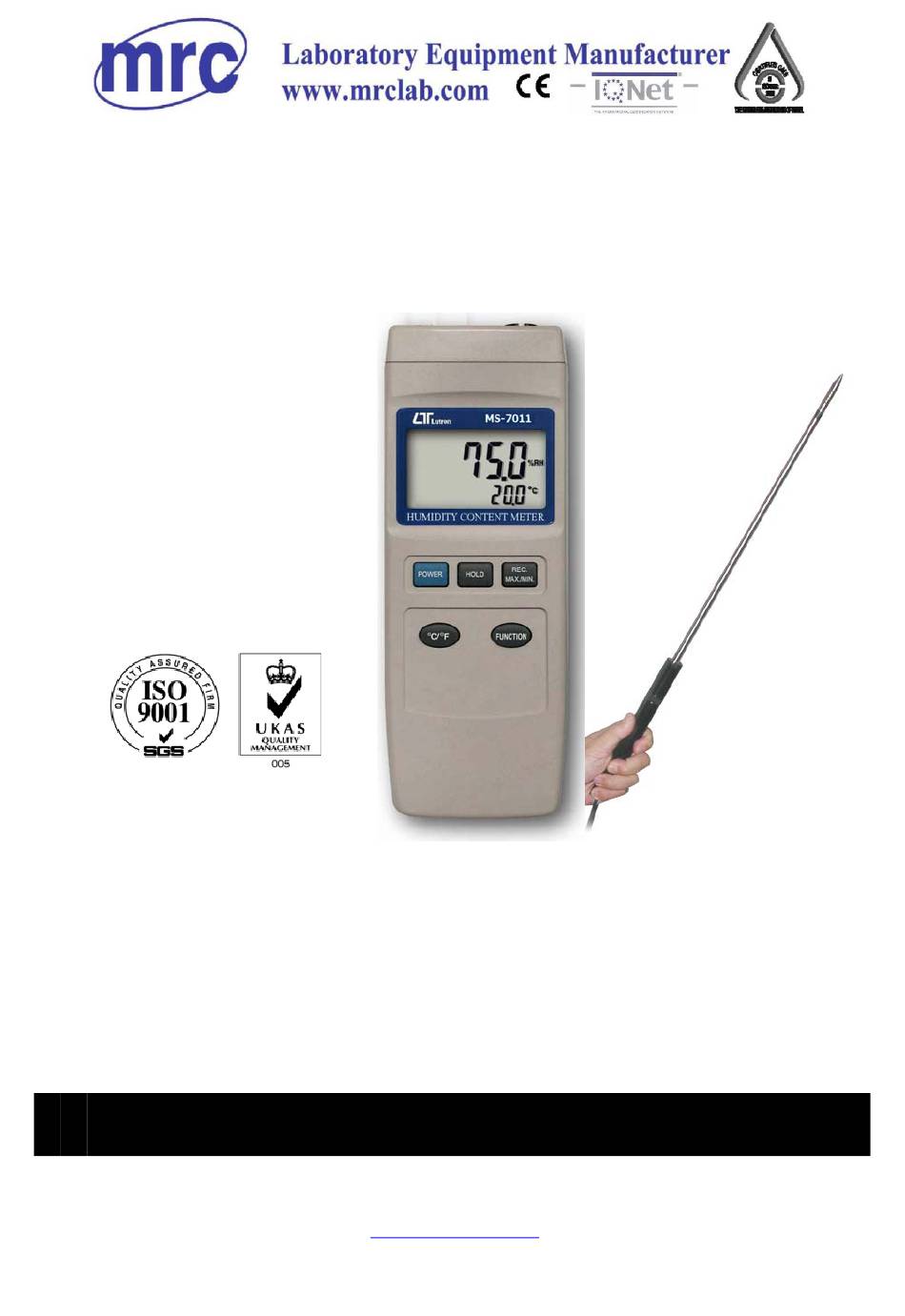

  • Page 1 Heavy duty probe, Dew point, Type K Temp. RS232/USB computer interface HUMIDITY CONTENT METER Model : MS-7011 Your purchase of this HUMIDITY CONTENT METER marks a step forward for you into the field of precision measurement. Although this HUMIDITY CONTENT METER is a complex and delicate instrument, its durable structure developed.
  • Page 2 TABLE OF CONTENTS 1. FEATURES............. 2. SPECIFICATIONS........... 3. FRONT PANEL DESCRIPTION........3-1 Display............. 3-2 Power Button........... 3-3 REC. Button............3-4 Hold Button............Button............. ℃ ℉ 3-6 Function Button ..........3-7 Battery Compartment/Cover......3-8 Temp. Probe input Socket ........ 3-9 Humidity Probe input Socket ......3-10 RS-232 Output Terminal........
  • Page 3 1. FEATURES * Professional Humidity content probe, used to measure the humidity content value for the materials of Grain, Corn, Rice. Cotton, Paper... * Stainless probe body, Heavy duty. * Humidity content + Dew point + Type K Thermometer are combined into one meter, intelligent. * Thin-film capacitance sensor for humidity content measurement, high precision.

  • Page 4: Specifications

    2. SPECIFICATIONS 2-1 General Specifications Circuit Custom one-chip of microprocessor LSI circuit. Display 51 mm x 32 mm, 15 mm ( 0.6" ) digit size. dual function LCD display, Humidity Measurement %RH ( Relative Humidity ) content Temperature - ℃ ℉ Dew point ℃...
  • Page 5 Operating 0 to 50 ℃ Temperature Operating Main instrument : Less than 80 %RH. Humidity Probe : Less than 95 %RH. Power 006P DC 9V battery ( Alkaline or Heavy duty type ). Supply Power Approx. DC 7 mA. Current Meter Weight 245 g/0.54 LB...
  • Page 6 2-2 Electrical Specifications ( 23± 5 ℃ Humidity Content Range 10 to 95 %RH Humidity Resolution 0.1 %RH. 70 %RH : content Accuracy ≧ ± ( 3 % reading + 1 %RH) < 70 %RH. : ± 3 %RH. Range to 50 , 32 to 122...
  • Page 7 Type K Thermometer Range -100.0 to 1300.0 ℃ ℃ Resolution 0.1 ℃ -50.0 to 1300.0 Accuracy ℃ ± ( 0.2 % + 0.5 ℃ -50.1 to -100.0 ℃ ± ( 0.2 % + 1 ℃ Range -148.0 to 2372.0 ℉ ℉...

  • Page 8: Front Panel Description

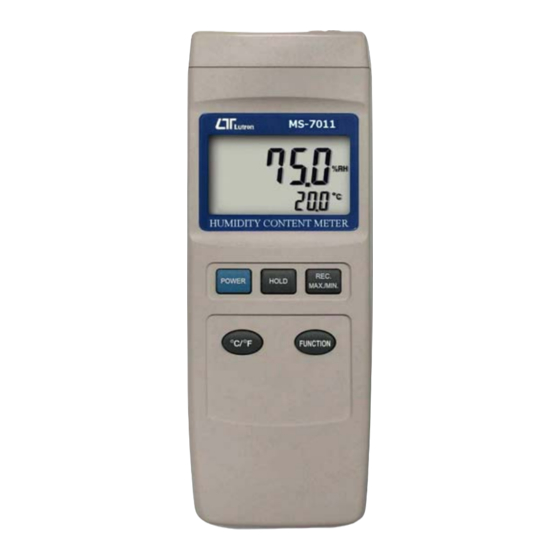

    3. FRONT PANEL DESCRIPTION Fig. 1 3-1 Display 3-2 Power Button 3-3 REC. Button 3-4 Hold Button Button ℃ ℉ 3-6 Function Button 3-7 Battery Compartment/Cover 3-8 Temp. Probe input Socket 3-9 Humidity Probe input Socket 3-10 RS-232 Output Terminal 3-11 Stand 3-12 Probe Plug 3-13 Probe handle...

  • Page 9: Measuring Procedure

    4. MEASURING PROCEDURE 4-1 Humidity content measurement 1) Plug the " Probe Plug " ( 3-12, Fig. 1 ) into the " Humidity Probe Input Socket " ( 3-9, Fig. 1 ) of the meter. 2) Power on the meter by pressing the Power Button ( 3-2, Fig.
  • Page 10 Remark : There is built the " Filter " on inner of the " Sensing head " ( 3-15, Fig. 1 ). After the probe is used for a long period and find the humidity response time change to long time, it should change the unit of " Sensing head with inner filter "...
  • Page 11 4-5 Data Record ( Max., Min. reading ) * The data record function records the maximum and minimum readings. Press the " REC. Button " ( 3-3, Fig. 1 ) to start the Data Record function and there will be a "...
  • Page 12 5. OFFSET TEMP. ADJUSTMENT Type K THERMOMETER The instrument is fully calibrated to assure the high quality measuring performance. Usually it is not necessary to execute the Offset Temperature Adjustment procedures, however the measured result could be influenced by using different type of temperature probes. Under such condition, customer can easily compensate the temperature value by push button on the front panel.
  • Page 13 5) Under the " Hold Button " ( 3-4, Fig. 1 ) and " REC. Button " ( 3-3, Fig. 1 ) be pressed condition, press " Button " ( 3-5, Fig. 1 ) to add 0.1 or press ℃ ℉ "...

  • Page 14: Auto Power Off Disable

    6. AUTO POWER OFF DISABLE The instrument has " Auto Power Off " function in order to prolong battery life. If there are no buttons to be pressed for around 10 minutes, the meter will power off automatically. Disable auto power off function by pressing the " REC. Button "...

  • Page 15: Battery Replacement

    The 16 digits data stream will be displayed in the following format : D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 Each digit indicates the following status : Start Word When send the upper display data = 1 When send the lower display data = 2 D12 &...
  • Page 16 2) Slide the " Battery Cover " ( 3-7, Fig. 1 ) away from the instrument and remove the battery. 3) Replace with 9V battery ( Alkaline or Heavy duty type ) and reinstate the cover. 4) Make sure the battery cover is secured after changing the battery.
