3 phase power analyzer
Hide thumbs Also See for DW-6093:
Table of Contents

Advertisement

Quick Links

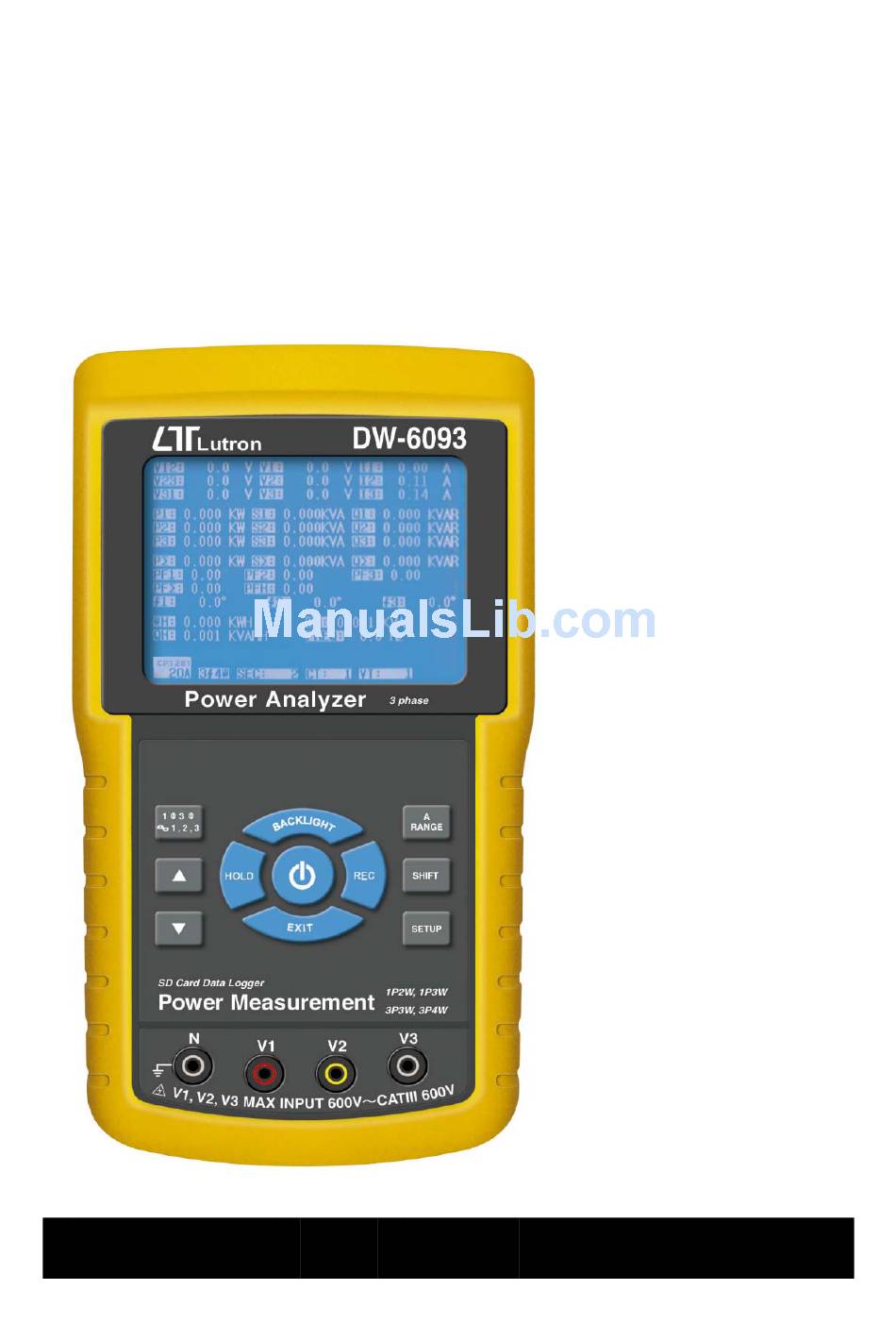

SD card real time data recorder
3 PHASE
POWER ANALYZER
Model : DW-6093
OPERATION MANUAL
Your
purchase
this 3 PHASE
POWER ANALYZER
marks
a
forward for you into
t h e
f i e l d
p r e c i s i o n
measurement.
A l t h o u g h
POWER ANALYZER
is a complex and
delicate instrument,
its durable structure
will
allow
many
years
of
use
proper
operating
techniques
developed.
Please
read the following
i n s t r u c t i o n s
carefully and always
keep
this
manual
within easy reach.
of
step
o f
t h i s
if
are

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DW-6093 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lutron Electronics DW-6093

Summary of Contents for Lutron Electronics DW-6093

  • Page 1 SD card real time data recorder 3 PHASE POWER ANALYZER Model : DW-6093 Your purchase this 3 PHASE POWER ANALYZER marks step forward for you into t h e f i e l d p r e c i s i o n measurement.
  • Page 2 Caution Symbol Caution : * Risk of electric shock ! * During the measurement, do not open the cabinet. Caution : * Do not apply the overload voltage, current to the input terminal ! * Remove test leads before open the battery cover ! * Cleaning - Only use the dry cloth to clean the plastic case !

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1. FEATURES..............1 2. SPECIFICATIONS............2 2-1 General Specifications......... 2 2-2 Electrical Specifications........4 3. FRONT PANEL DESCRIPTION........8 4. MEASURING PREPARATION ........10 4-1 The original screen..........10 4-2 Entry the measurement Screen......10 4-3 The summary description of keyboard....12 4-4 SETUP KEY description.........13 4-5 Setting function description before measuring..14 5.

  • Page 4: Features

    1. FEATURES * Analysis for 3 phase multi-power system, 1P/2W, 1P/3W, 3P/3W, 3P/4W * Voltage & Current are the True RMS value. * True Power ( KW、MW、GW ) measurement. * Apparent Power ( KVA、MVA、GVA ) measurement. * Reactive Power ( KVAR MVAR、GVAR) measurement. * Watt-Hour ( WH、SH、QH、PFH ).

  • Page 5: Specifications

    2. SPECIFICATIONS 2-1 General Specifications: Circuit Custom one-chip of microprocessor LSI circuit Display * LCD Size : 81.4 X 61 mm ( 3.2 X 2.4 inch ) * Dot Matrix LCD (320 X 240 pixels ) with back light. Measurement * ACV * ACA * AC WATT ( True Power )
  • Page 6 Over load 720 ACV rms protection 1300 ACA with clamp probe * For the Clamp ,CP-1201 Over Indicator * LCD display show " OL ". * The data save into the SD card will show " 9999 " or " 999 " ( overleap the decimal point ).

  • Page 7: Electrical Specifications

    Power * Meter : 250 DCmA. Consumption * Clamp : 22 DCmA. Clamp max. 50 mm ( 2.0 inch ) Dia. * For the Clamp ,CP-1201 conductor Size Weight * Meter : 975g ( includes batteries ) * Clamp ( includded cable ) : 500g Meter : Dimension 225 X 125 X 64 mm...
  • Page 8 Range Resolution Accuracy 0.001A, < 10 A ± (0.5%+0.1A) 0.01A, 10 A ≧ 200A 0.01A, < 100 A ± (0.5%+0.5A) 0.1A, 100 A ≧ 1200A 0.1A, < 1000 A ± (0.5%+5A) 1000 A ≧ Power factor Range Resolution Accuracy 0.00 to 1.00 0.01 ±...
  • Page 9 Active (Real) Power Range Resolution Accuracy 0.000 to 9.999 KW ± (1%+0.008KW) *0.001/0.01/0.1 KW 10.00 to 99.99 KW ± (1%+0.08KW) *0.01/0.1 KW 100.0 to 999.9 KW ± (1%+0.8KW) 0.1 KW 1.000 to 9.999 MW ± (1%+0.008MW) 0.001 MW * : The resolution is changed according the different ACA range. Apparent Power Range Resolution...
  • Page 10 Watt Hour ( Active Power Hour) : WH Range Resolution Accuracy 0.000 to 9.999 KWH 0.001 KWH ± (2%+0.008 KWH) 10.00 to 99.99 KWH 0.01 KWH ± (2%+0.08 KWH) 100.0 to 999.9 KWH 0.1 KWH ± (2%+0.8 KWH) 1.000 to 9.999 MWH 0.001 MWH ±...

  • Page 11: Front Panel Description

    3. FRONT PANEL DESCRIPTION Fig. 1...
  • Page 12 3-1 Display 3-2 1Φ 3Φ ( Phase/wire ) key button key button ▲ key button ▼ 3-5 Hold key button 3-6 Backlight key button 3-7 Power key button 3-8 Exit key button 3-9 REC key button 3-10 A ( current ) range key button 3-11 Shift key button 3-12 Setup key button 3-13 Voltage input terminals...

  • Page 13: Measuring Preparation

    4. MEASURING PREPARATION 4-1 The original screen 4-2 Entry the measurement Screen 1)The bottom right display of screen 1 will show as " SD Check " along with blinking while inserting SD CARD then disappears after several seconds that indicates the data from SD CARD has been read completed.
  • Page 14 screen 1 ( 4-2 ) V12: 0.0 V 0.0 V 0.00 A V23: 0.0 V 0.0 V 0.00 A V31: 0.0 V 0.0 V 0.00 A -0.000 KW 0.000KVA -0.000 KVAR -0.000 KW 0.000KVA -0.000 KVAR -0.000 KW 0.000KVA -0.000 KVAR PΣ...

  • Page 15: The Summary Description Of Keyboard

    4-3 The summary description of keyboard 1)POWER KEY ( 3-7, Fig. 1 ) : Press the key to turn the instrument ON/OFF. 2)1Φ 3Φ ( phase/wire ) KEY ( 3-2, Fig. 1 ) : Press the key to select (1P/2W、1P/3W、3P/3W、3P/4W) measurement function mode.

  • Page 16: Setup Key Description

    4-4 SETUP KEY description: 4-4-1 SHIFT KEY * SHIFT 1 : When the symbols " SETUP " and " SHIFT 1 " are appeared on up right display of screen 1 in the meantime, and then use the to select the ▲...

  • Page 17: Setting Function Description Before Measuring

    4-4-2 The Setting Function menu * Folder Name : Set the expect folder name for SD CARD, the range is between WTA01 and WTA10. * File Name: Set the file name for SD CARD, It allows setting 50 filenames in this function. * REC Date: Show the recorded time of existing files ( Year/Month/Date, Hour/Min./Sec.
  • Page 18 4-5-1 Folder Name: Set the folder name for SD screen 1 ( 4-5-1 ) Folder Name: WTA01 SETUP File Name: 3P401001.XLS REC Date: 2008-11-28 00:03:17 Sampling Time: Delet File: Decimal: Basic SD Format: Clamp Type: CP1201 Use Size: 388 KB Range: Free Size: 1946 MB...
  • Page 19 A : Folder Name range: WTA01 to WTA10. B : Press to select the expect folder number, the ▲ ▼ number consists of " 01 to 10 " (as screen 1). C : Press continuously at least two seconds can ▲...
  • Page 20 screen 2 ( 4-5-2 ) Folder Name: WTA01 SETUP File Name: 3P401001.XLS REC Date: 2008-11-28 00:03:17 Sampling Time: Delet File: Decimal: Basic SD Format: Clamp Type: CP1201 Use Size: 388 KB Range: Free Size: 1946 MB Range: 200mV Total Size: 1946 MB RS232 Out Sel: 1 : 1...
  • Page 21 E : The up right display will show " SHIFT2 " symbol while pressing SHIFT KEY again in screen 4, at this time press ▲ or ▼ to select 1P/2W(1P2)、1P/3W(1P3)、 3P/3W(3P3) and 3P/4W(3P4) as screen 4. F: One by one to press SHIFT KEY to select different functions circularly.
  • Page 22 4-5-3 Sampling time: Set the data logger sampling time for SD A : When press SHIFT KEY once, the symbol " SHIFT1 " will disappear on up right display, at this time press to adjust expect sampling time as screen 2, ▲...
  • Page 23 4-5-4 Delete File: Delete the files for SD A : The indicator " Y or N " will appear on right side display of the option while pressing SHIFT KEY continuously at least two seconds, and now press ▲ the display will show " Y " in highlight as screen 2, press SETUP KEY again to confirm, the selected file (ex: 3P401001.XLS) will be erased then return to screen 1, or else press SETUP KEY in "...
  • Page 24 screen 2 ( 4-5-4 ) Folder Name: WTA01 SETUP File Name: 3P401001.XLS SHIFT 1 REC Date: 2008-11-28 00:03:17 Sampling Time: Delete File: Y OR N Decimal: Basic SD Format: Clamp Type: CP1201 Use Size: 388 KB Range: Free Size: 1946 MB Range: 200mV Total Size:...
  • Page 25 screen 1 ( 4-5-5 ) Folder Name: WTA01 SETUP File Name: 3P401001.XLS SHIFT 1 REC Date: 2008-11-28 00:03:17 Sampling Time: Delete File: Decimal: Basic SD Format: Clamp Type: CP1201 Use Size: 388 KB Range: Free Size: 1946 MB Range: 200mV Total Size: 1946 MB RS232 Out Sel:...
  • Page 26 4-5-6 PT: Set the Potential Transformer A : When press SHIFT KEY once, the symbol " SHIFT1 " will disappear as screen 2 at this time press ▲ ▼ adjust to expect PT values, the adjusting numbers are from 1 to 1000. Remark : When press >...
  • Page 27 screen 2 ( 4-5-6 ) Folder Name: WTA01 SETUP File Name: 3P401001.XLS REC Date: 2008-11-28 00:03:17 Sampling Time: Delete File: Decimal: Basic SD Format: Clamp Type: CP1201 Use Size: 388 KB Range: Free Size: 1946 MB Range: 200mV Total Size: 1946 MB RS232 Out Sel: 1 : 1...
  • Page 28 screen 1 ( 4-5-7 ) Folder Name: WTA01 SETUP File Name: 3P401001.XLS SHIFT 1 REC Date: 2008-11-28 00:03:17 Sampling Time: Delete File: Decimal: Basic SD Format: Clamp Type: CP1201 Use Size: 388 KB Range: Free Size: 1946 MB Range: 200mV Total Size: 1946 MB RS232 Out Sel:...
  • Page 29 4-5-8 Beep: Control the buzzer to ON/OFF A : When press SHIFT KEY once the symbol " SHIFT1 " will disappear as screen 2, at this time press ▲ ▼ control the buzzer to ON/OFF. B : Press SHIFT KEY once again will return to screen 1 then press to enter next setting function ( BEEP Decimal...
  • Page 30 screen 2 ( 4-5-8 ) Folder Name: WTA01 SETUP File Name: 3P401001.XLS REC Date: 2008-11-28 00:03:17 Sampling Time: Delete File: Decimal: Basic SD Format: Clamp Type: CP1201 Use Size: 388 KB Range: Free Size: 1946 MB Range: 200mV Total Size: 1946 MB RS232 Out Sel: 1 : 1...
  • Page 31 * Basic type : The numerical data structure of SD card is default used the " . " as the decimal, for example "20.6" "1000.53" . * Euro type : The numerical data structure of SD card is default used the " , " as the decimal, for example "20,6"...
  • Page 32 screen 2 ( 4-5-9 ) Folder Name: WTA01 SETUP File Name: 3P401001.XLS REC Date: 2008-11-28 00:03:17 Sampling Time: Delete File: Decimal : Basic SD Format: Clamp Type: CP1201 Use Size: 388 KB Range: Free Size: 1946 MB Range: 200mV Total Size: 1946 MB RS232 Out Sel: 1 : 1...
  • Page 33 screen 1 ( 4-5-10 ) Folder Name: WTA01 SETUP File Name: 3P401001.XLS SHIFT 1 REC Date: 2008-11-28 00:03:17 Sampling Time: Delete File: Decimal: Basic SD Format: Clamp Type: CP1201 Use Size: 388 KB Range: Free Size: 1946 MB Range: 200mV Total Size: 1946 MB RS232 Out Sel:...
  • Page 34 4-5-11 A range Setting ( Current range Setting ) A : When press SHIFT KEY once the symbol " SHIFT1 " will be disappeared and show as screen 2, at this time press to select A range to 20A to 2000A or ▲...
  • Page 35 screen 2 ( 4-5-11 ) Folder Name: WTA01 SETUP File Name: 3P401001.XLS REC Date: 2008-11-28 00:03:17 Sampling Time: Delete File: Decimal: Basic SD Format: Clamp Type: CP1201 Use Size: 388 KB Range: Free Size: 1946 MB Range: 200mV Total Size: 1946 MB RS232 Out Sel: 1 : 1...
  • Page 36 screen 1 ( 4-5-12 ) Folder Name: WTA01 SETUP File Name: 3P401001.XLS SHIFT 1 REC Date: 2008-11-28 00:03:17 Sampling Time: Delete File: Decimal: Basic SD Format: Clamp Type: CP1201 Use Size: 388 KB Range: Free Size: 1946 MB Range: 200mV Total Size: 1946 MB RS232 Out Sel:...
  • Page 37 4-5-13 RS232 Out Sel setting A : When press SHIFT KEY continuously at least two seconds as screen 2 and now press to select ▲ ▼ the item that intend to output, maximum up to nine items, when the cursor stops on the selected item and then press SETUP KEY again, the selected item will be displayed in highlight.
  • Page 38 screen 2 ( 4-5-13 ) RS232 OUTPUT SELECT 12. P3 23. PF2 13. PΣ 24. PF3 25. PFΣ 15. S2 26. PFH 16. S3 Φ 1 17. SΣ 28. Φ 2 29. Φ 3 19. Q2 20. Q3 31. SH 21.
  • Page 39 4-5-14 Year/Month/Date/Hour/Minute/Second setting A : When press SHIFT KEY once, the symbol " SHIFT1" will disappear as screen 2, at this time press ▲ ▼ to adjust expect numbers, and press ▲ ▼ continuously at least two seconds can skip the numbers faster.
  • Page 40 Folder Name: WTA01 SETUP File Name: 3P401001.XLS REC Date: 2008-11-28 00:03:17 Sampling Time: screen 2 Delete File: Decimal: Basic ( 4-5-14 ) SD Format: Clamp Type: CP1201 Use Size: 388 KB Range: Free Size: 1946 MB Range: 200mV Total Size: 1946 MB RS232 Out Sel: 1 : 1...

  • Page 41: Measuring Procedures

    5. MEASURING PROCEDURES 5-1 1Φ 2W ( one phase by two wires ) measurement A : Diagram SCREEN 1 ( 5-1 ) B : Operation Instructions: B-1 : Power on the instrument by pressing POWER KEY, and then press 1Φ 3Φ KEY to select the 1Φ 2W system, the selected name of system will be appeared on bottom left display of screen 2.

  • Page 42: 3W (One Phase By Three Wires) Measurement

    screen 2 ( 5-1 ) V 1 : A 1 : 0.00 P 1 : - 0.000KW P F 1 : - 0.00 S 1 : 0.000KVA P F H : 0.00 Q 1 : - 0.000KVAR Φ 1 : - 0.0°...
  • Page 43 B : Operation Instructions: B-1 : Power on the instrument by pressing POWER KEY, and then press 1Φ 3Φ KEY to select the 1Φ 3W system, the selected name of system will be appeared on bottom left display of screen 2. B-2 : Connect the line voltage L1, L2 and Vn (Neutral) to V1, V2 and N terminals of the instrument.

  • Page 44: 3W ( Three Phase By Three Wires ) Measurement

    5-3 3Φ 3W (three phases by three wires) measurement A : Diagram screen 1 ( 5-3 ) B : Operation Instructions: B-1 : Power on the instrument by pressing POWER KEY, and then press 1Φ 3Φ KEY to select the 3Φ 3W system, the selected name of system will be appeared on bottom left display of screen 2.

  • Page 45: Measurement

    screen 2 ( 5-3 ) V 1 2 : A 1 : 0.00 V 2 3 : A 2 : 0.00 V 3 1 : A 3 : 0.00 P Σ : - 0.000 KW S Σ : 0.000 KVA Q Σ...
  • Page 46 B: Operation Instructions: B-1 : Power on the instrument by pressing POWER KEY, and then press 1Φ 3Φ KEY to select the 3Φ 4W system, the selected name of system will be appeared on bottom left display of screen 2. B-2 : Connect the line voltage L1, L2, L3 and Vn to V1, V2, V3 and N terminals of the instrument.

  • Page 47: The Ct And Pt Measurement

    5-5 The CT and PT measurement A : Diagram screen 1 ( 5-5 ) B : Operation Instructions B-1 : Power on the instrument by pressing POWER KEY, and then press 1Φ 3Φ KEY to select the 3Φ 4W system, the selected name of system will be appeared on bottom left display of screen 2.

  • Page 48: Zero Adjustment For Watt Hour

    screen 2 ( 5-5 ) V12: 0.0 V 0.0 V 0.00 V23: 0.0 V 0.0 V 0.00 V31: 0.0 V 0.0 V 0.00 - 0.000 KW 0.000 KVA - 0.000 KVAR - 0.000 KW 0.000 KVA - 0.000 KVAR - 0.000 KW 0.000 KVA - 0.000 KVAR PΣ...

  • Page 49: Data Logger Function

    5-7 Data Logger Function A : Press REC KEY once to start the data record function. A-1 : If the bottom right shows as " Change Card ", it indicates the memory space is already full either or the SD CARD exist some wrong. A-2 : If the SD CARD is normal, the data logger function will start to be executed.
  • Page 50 screen 1 ( 5-6 B ) V12: 0.0 V 0.0 V 0.00 V23: 0.0 V 0.0 V 0.00 V31: 0.0 V 0.0 V 0.00 - 0.000 KW 0.000 KVA - 0.000 KVAR - 0.000 KW 0.000 KVA - 0.000 KVAR - 0.000 KW 0.000 KVA - 0.000 KVAR...

  • Page 51: Data Hold Function

    5-8 Data HOLD Function A: During the measurement, press HOLD KEY once, the bottom right display will show “ HOLD symbol as screen 1. B: Press the HOLD KEY twice will disable the Data HOLD function and the “ HOLD” symbol will disappear in the meantime screen 1 ( 5-7 ) V12:...

  • Page 52: Backlight Key

    5-9 BACKLIGHT KEY Control the backlight function of LCD to ON/OFF 5-10 A Range ( Current Range ) KEY function a) The A Range ( Current Range ) function key is used to change the current range quickly. b)Press A RANGE KEY once will entry to screen as FOLLOWING "...

  • Page 53: Lowbat Screen

    5-11 The LOWBAT screen: as show on lower right display of the following screen. V12: 0.0 V 0.0 V 0.00 V23: 0.0 V 0.0 V 0.00 V31: 0.0 V 0.0 V 0.00 - 0.000 KW 0.000 KVA - 0.000 KVAR - 0.000 KW 0.000 KVA - 0.000 KVAR...

  • Page 54: Appendix 1

    5-12 Appendix 1 * V12, V23, V31 : Line Voltage * V1, V2, V3 : Phase Voltage * A1, A2, A3 : Line Current * P1, P2, P3 : True Power of each phase. (W) * S1, S2, S3 : Apparent Power of each phase. (VA) * Q1, Q2, Q3 : Reactive Power of each phase (VAR) * PΣ...

  • Page 55: Maintenance

    6. MAINTENANCE Remove test leads before Caution : opening the battery cover or housing case ! 6-1 Cleaning Cleaning - Only use Caution : the dry cloth to clean the plastic case ! 6-2 Replacement of batteries 1)When Display show the " LOWBAT " indicator ( ref. 5-11 page 50 ), it should change the batteries.

  • Page 56: Rs232 Pc Serial Interface

    7. RS232 PC SERIAL OUTPUT The instrument is provided an 3.5 mm dia. phone socket ( 3-16, Fig. 1 ) for RS232 computer interface socket. The connector output is a 16 digits data stream which can be utilized to the user's specific application. A RS232 lead with the following connection will be required to link the instrument with the PC serial input.
  • Page 57 Each digit indicate the following status : Start Word D12 & D11 Annunciator for Display 31=HZ C0 = MW D1 = GW/Hr 32=DEGREE C1 = GW D2 = TW/Hr 48=K WATT C2 = TW D3 = KVA/Hr 50=ACV C3 = MVA D4 = MVA/Hr 52=ACA C4 = GVA...

  • Page 58: Download The Saving Data From The Sd Card To The Computer ( Excel Software )

    8. Download the saving data from the SD card to the computer ( EXCEL software ) 1)After execute the Data Logger function, take away the SD card out from the " SD card socket " ( 3-15, Fig. 1 ). 2)Plug in the SD card into the Computer's SD card slot ( if your computer build in this installation ) or insert the SD card into the "...
  • Page 59 EXCEL data screen 2 ( for example ) EXCEL data screen 3 ( for example ) EXCEL data screen 4 ( for example )
  • Page 60 EXCEL data screen 5 ( for example ) EXCEL data screen 6 ( for example ) EXCEL graphic screen 1 ( for example )
  • Page 61 EXCEL graphic screen 2 ( for example ) EXCEL graphic screen 3 ( for example )

  • Page 62: Patent

    EXCEL graphic screen 4 ( for example ) EXCEL graphic screen 5 ( for example ) 9. PATENT The SD card installation for handheld instruments and the SD card data format structure ( Data to EXCEL file format ) already patent pending in the following countries : U.S.A, CHINA, GERMANY, JAPAN, TAIWAN...

  • Page 63: The Address Of After Service Center

    10. THE ADDRESS OF AFTER SERVICE CENTER 1011-DW6093...
