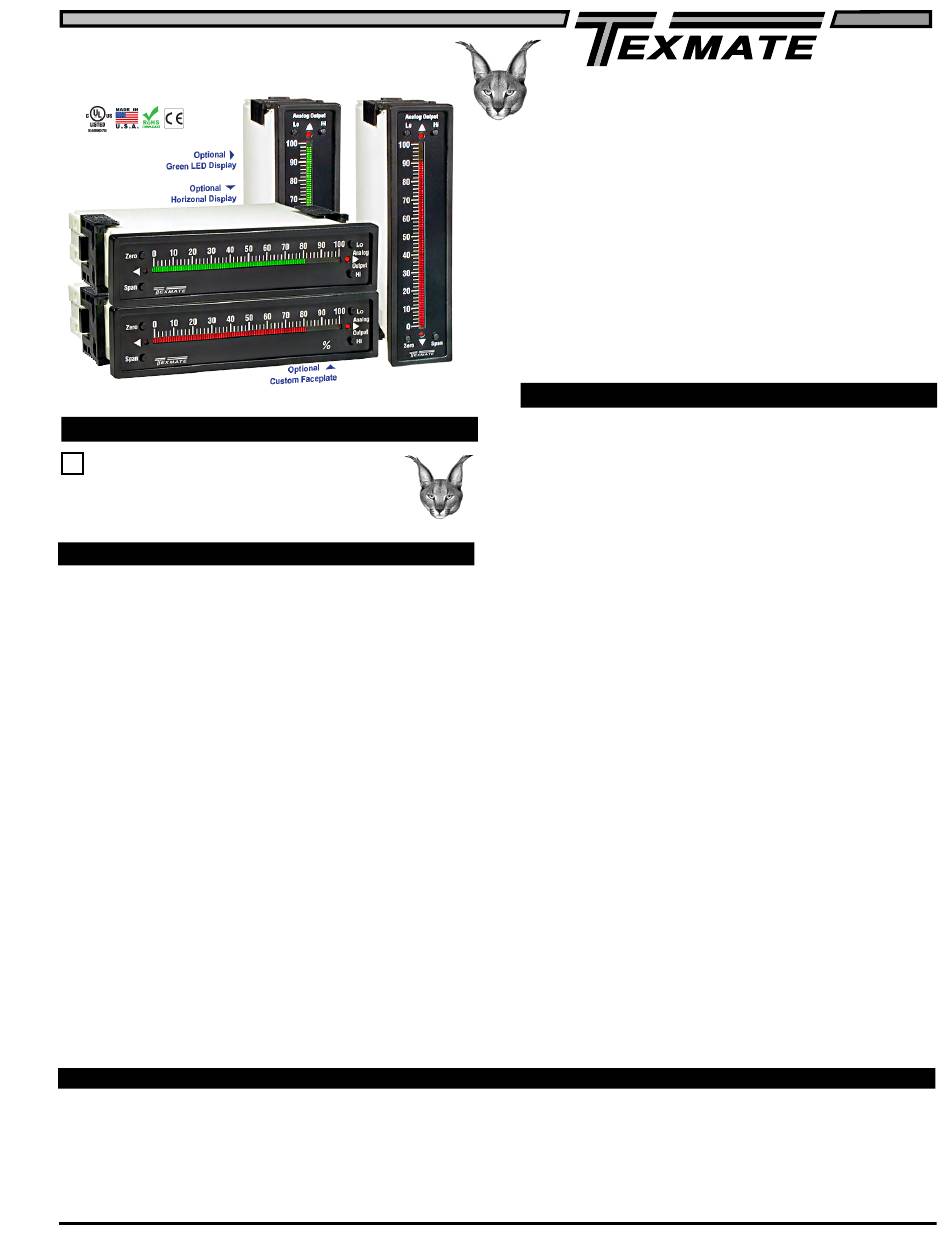

101 Segment in
9/64 DIN Case
Input Module Compatibility
LYNX FAMILY: More than 33 different Plug-in
✔
I-Series Input Signal Conditioners are approved for
Texmate's Lynx Family of meters.
See www.texmate.com for an up to date listing.
General Features
• External transmitters or signal conditioners can be eliminated
by directly connecting the sensor to Plug-in Input Signal
Conditioning Modules that include:
– DCA
ID02 : DC mV ±20mV, ±50mV, ±100mV, ±200mV w/24V Exc.
– DCV
ID01 : DC-Volts 2V/20V/200V w/24V Exc.
ID05 : DC-Volts 2V/20V/200V w/24V Exc. and Zero offset
adjustable pot
• A red or optional green 101 segment bargraph.
• Auto-sensing AC/DC power supply. For voltages between
85-265 V AC / 95-300 V DC (PS1) or 14-48 V AC / 10-72 V DC (PS2).
• Optional 16 Bit isolated analog output that can be used to drive
an external process device such as a chart recorder, remote
display, or for retransmission to a central control room. User or
factory scalable to 4 to 20 mA, 0 to 20 mA or 0 to 10 V across
any desired span from ± one bar to the full scale range
• Center zero setting, header selectable.
• Provision for external brightness setting switch (by connect-
ing the DIM to the GND pin on the back of the meter).
• Smart averaging (to speed up display response).
• Optional NEMA-4 front cover.
• UL Listed
Analog Output Scaling and Calibration 6
Case Dimensions
Component Layout
Connector Pinouts
Connectors
Controls and Indicators
Custom Face Plates
General Features
FX-B101Q-DCA_DCV manual (d0103)
LYNX
Glossary of Programming Symbols &
12
Modes of Operation
8
Hinged Clear Lockable Poly NEMA 4X
7
Splash Proof Cover
7
Input Module Compatibility
2
Input Module Component Glossary
10
Installation Guideline
1
Texmate, Inc. Tel. (760) 598-9899 • www.texmate.com
LYNX FAMILY
FX-B101Q-DCA
20/50/100/200mV DC Full Scale
FX-B101Q-DCV
2/20/200V DC Meter
A Powerful Smart DCA/DCV Bargraph
Isolated 4-20mA DC or 0-10VDC output
Specifications
Input Specs:
A/D Converter:
Accuracy:
Temp. Coeff.:
Warm up time:
Conversion Rate:
Bargraph Display:
Polarity:
Positive Overrange: Bargraph display flashes
Negative Overrange: First segment of bargraph display flashes
Analog Output:
OIC (mA out)
OIV (volts out)
Power Supply:
PS1 (std)
PS2
Operating Temp.:
Storage Temp:
Relative Humidity:
Case Dimensions:
Weight:
Index
One Point Quickset Rescaling and
2
Calibration Procedure
Opening the Case to Access Mode
12
Select Header
1
Ordering Information
9
Overview of Display Modes, Scaling
7
Capabilities & Operating Modes
with optional
Single-ended, however isolated power
supply enables differential measure-
ments up to a maximum common mode
of 50V.
14 bit single slope
±(0.05% of reading + 1segment)
100 ppm/°C (Typical)
2 minutes
10 conversions per second (Typical)
101 segment 4" vertical (std),
horizontal (optn), red (std), green (optn)
Selectable center zero
Isolated 16 bit user scalable mA or V
4-20 mA @ 0 to 500Ω max loop resistance
0-10 V DC @ 500 Ω or higher resistance
AC/DC Auto sensing wide range supply
85-265 VAC, 50-400Hz / 95-300 VDC @ 1.5W
14-48 V AC, 50-400Hz / 10-72 V DC @1.5W
0 to 50°C
–20°C to 70°C
95% (non condensing)
9/64 DIN Bezel: 36x144mm(1.42"x5.69")
Depth behind bezel:117.5mm(4.64").
Plus 10mm(0.39") for Right-angled con-
nector, or plus 18.3mm(0.72") for Straight-
thru connectors.
9.5 oz., 12 oz when packed
Panel Adapter
5
Pin Descriptions
Specifications
4
Standard Display Mode Calibration
13
Procedure
Two Point Quickset Scaling and
3
Calibration
11
7
1
5
3,5
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Texmate LYNX FX-B101Q-DCA
Summary of Contents for Texmate LYNX FX-B101Q-DCA
- Page 1 LYNX FAMILY: More than 33 different Plug-in ments up to a maximum common mode ✔ I-Series Input Signal Conditioners are approved for of 50V. Texmate’s Lynx Family of meters. A/D Converter: 14 bit single slope See www.texmate.com for an up to date listing. Accuracy: ±(0.05% of reading + 1segment) LYNX General Features Temp. Coeff.: 100 ppm/°C (Typical) Warm up time: 2 minutes • External transmitters or signal conditioners can be eliminated...
-
Page 2: Controls And Indicators
Horizontal and Reverse Mounting with Custom Face Plate Installed Horizontal or Reverse Mounting Meters can be mounted horizontally in the panel and for those applications that require an opposite growth of the bar, the When two fingers are shown side by meter can be vertically or horizontally side, the two corresponding buttons must mounted upside down be pressed at the same time to initiate an indicated function. Zero Span dual bar rvsd Page 2 Texmate, Inc. Tel. (760) 598-9899 • www.texmate.com FX-B101Q-DCA_DCV manual (d0103) - Page 3 3. While the bar is being adjusted, a new offset and scale factor is continuously being calculated. At the moment the button is released, and the scaling is accepted, the calculation data is memorized and implemented. The Scaling calculation is based on the new position of the Bar, the input signal being applied at that moment, and the previously memorized position of the Bar and the input signal that was being applied, when the other button was last released. 4. Positive and negative signals maybe integrated into a two point scaling. However when either a ZERO or SPAN button is pressed the input signal being applied, must be more than 5% higher or lower than the previously memorized value of the input signal, that was being applied when the other button was last released. If not, the bar will flash, the scaling will not be accepted, and the previous scaling will still be retained in memory. 5. Because of the requirement, that a new scaling input signal must be 5% higher or lower than the previously stored value, it can some- times be difficult to implement a desired scaling, particularly when using a calibrator that only has fixed output values. In this case Reset the Scaling by pressing the ZERO and SPAN buttons simultaneously for two seconds. Both scaling memories will be erased and an internal default scale factor will be loaded. This provides a display of zero to fullscale on the bar for an input of approximately 0 to 100% of the range selected on the input signal conditioning module. After Resetting the Scaling a new calibration, using either button, can be implemented with new input signal values. It is good practice to always use the Zero button for lower input signals and the Span button for higher input signals, even when the bar display scale is inversed. 6. The larger the difference between two points used for calibration, the better the accuracy. However if the difference is too high, and the output from the input signal conditioning module is greater than +2.1VDC, or less than -1.05VDC, the bar will flash over range. The calibration will not then be accepted and, the previous scaling will still be retained in memory. In this case, either a lower input signal must be used, or a higher range on the input module should be selected to recalibrate the meter. Note: Most input signal conditioners have provisions for analog calibration and scaling. If the meterʼs scale factor is set to read zero with a zero input (shorted input), and to read 10 Bars fullscale with a 2.000 V input, any pre-calibrated signal conditioner with an output that does not exceed – 1 V to + 2 V, will read correctly in the meter without any further calibration. FX-B101Q-DCA_DCV manual (d0103) Texmate, Inc. Tel. (760) 598-9899 • www.texmate.com Page 3...
- Page 4 Controls and Indicators Opening the Case to Access Mode Select Header To remove front bezel lightly lever the plastic catches up and for- ward in the sequence shown by the num- bers To remove rear cover plate press down lightly to release two plastic catches, on either side of the case and lever back- wards. meter exploded view Page 4 Texmate, Inc. Tel. (760) 598-9899 • www.texmate.com FX-B101Q-DCA_DCV manual (d0103)
- Page 5 STeP A ReCAlIBRATe THe lOW INPuT SIgNAl ReADINg ON THe BAR 1) Apply the LO input signal (0ma in this example) to the input pins. Apply 0 mA The first segment will flash, indicating an under range condition. to the Input Pins 2) Using the ZERO button adjust the bar up to the required position. and adjust 3) The FX-B101Q has now been recalibrated to read zero to fullscale bar display for a 0 to 20 mA input. to the required position Zero Span FX-B101Q-DCA_DCV manual (d0103) Texmate, Inc. Tel. (760) 598-9899 • www.texmate.com Page 5...
- Page 6 Initially the output changes very slowly, but speeds up as the HI button continues to remain pressed. This output may be higher or lower – than the value set in Step 2, and may be any value in the range of 0 to 20mA or 0 to10V. This allows the easy reversal of analog output that is required in some applications. Adjust the Analog output to 20.00mA Page 6 Texmate, Inc. Tel. (760) 598-9899 • www.texmate.com FX-B101Q-DCA_DCV manual (d0103)
-
Page 7: Pin Descriptions
AC Neutral / –DC. Neutral power supply line. 6. See Connector Pinouts section for wir- Pin 24 AC line / +DC. Live power supply line. ing. 7. Use 28-12 AWG wiring, minimum 90˚C (HH) temperature rating. Strip wire approximately 0.3 in. (7-8 mm). 8. Recommended torque on all terminal plug screws is 4.5 lb-in (0.51 N-m). FX-B101Q-DCA_DCV manual (d0103) Texmate, Inc. Tel. (760) 598-9899 • www.texmate.com Page 7... -
Page 8: Component Layout
DC AMPS INPUT MODULE : to be used with 50mV/60mV/100mV/120mV Shunts Span Adj. Header ID02: DC Millivolts, 20/50/100/200mV DC Span Pot w/24V DC Exc Zero Offset Pot < Decrease Span Increase> (ID02) Input Range DCmV 24V EXC Header Exc. On/Off Header Page 8 Texmate, Inc. Tel. (760) 598-9899 • www.texmate.com FX-B101Q-DCA_DCV manual (d0103) -
Page 9: Input Module Component Glossary
200V Left Rear ed with either a single or multiple jumper clip. When meter). Typically it enables the input signal to be ZERO provided, a custom range position is only functional offset ±5% of full scale (-100 to +100 counts). Turn Clockwise to Increase Reading when the option has been factory installed. – ⊕ – ⊕ + 100 Counts 100 Counts 15 Turn Potentiometer FX-B101Q-DCA_DCV manual (d0103) Texmate, Inc. Tel. (760) 598-9899 • www.texmate.com Page 9... -
Page 10: Custom Face Plates
ART-FL5 ..Large run 300pcs custom faceplate - 5 color ..$1220 When ordering Large Run Face plates to be installed specify the custom part number issued for each different artwork. ie: 77-FLXXXXX Page 10 Texmate, Inc. Tel. (760) 598-9899 • www.texmate.com FX-B101Q-DCA_DCV manual (d0103) - Page 11 • Crompton • G.E. • Westinghouse • Yokogawa • and most others Width: 43.7 mm to 48 mm (1.72”) to (1.89”) Height: 143.4 mm to 149 mm (5.62”) to (5.88”) Two bezel trim strips are provid- ed with each adapter to finish off the edge of each individually mounted meter or the edge of each stack mounted array. Texmateʼs panel adapter enables modern DIN meters to fit in existing cutouts individually or stacked when replacing old 6” edgewise mechanical pointer meters. FX-B101Q-DCA_DCV manual (d0103) Texmate, Inc. Tel. (760) 598-9899 • www.texmate.com Page 11...
- Page 12 A safety catch keeps the cover closed even when the key is turned to the Safety open position and removed. The keyhole can also Catch be used to attach a safety seal clip, preventing unauthorized opening. Page 12 Texmate, Inc. Tel. (760) 598-9899 • www.texmate.com FX-B101Q-DCA_DCV manual (d0103)
-
Page 13: Ordering Information
NO WARRANTY under this warranty are limited to replacement or repair, at its option, at its factory, of any of the WHETHER OF MERCHANTABILITY, FITNESS FOR PURPOSE, OR OTHERWISE is made products which shall, within the applicable period after shipment, be returned to Texmate’s beyond the repair, replacement, or refund of purchase price at the sole discretion of Texmate. facility, transportation charges pre-paid, and which are, after examination, disclosed to the Users shall determine the suitability of the proDXct for the intended application before using, satisfaction of Texmate to be thus defective. The warranty shall not apply to any equipment...
