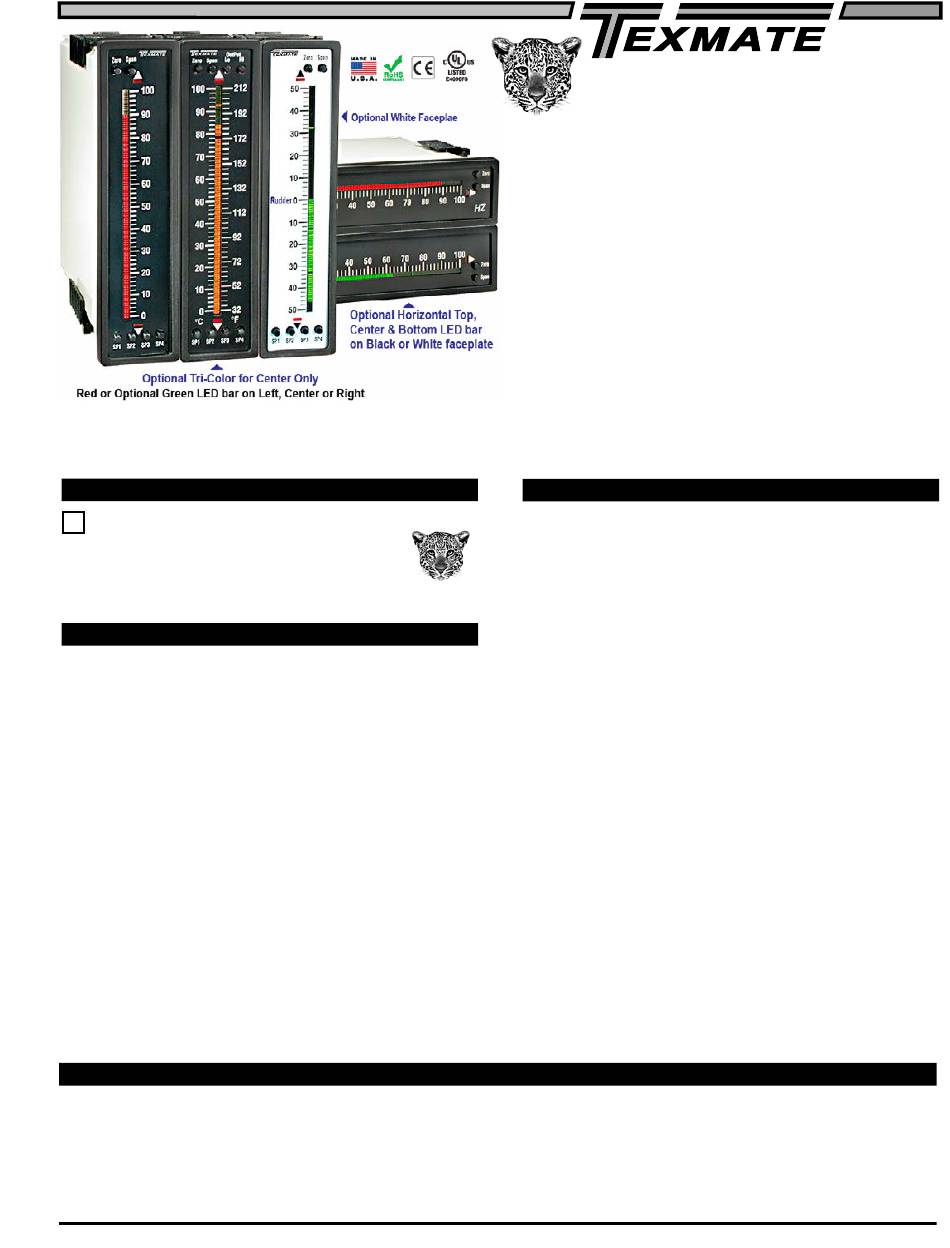

Texmate FL-B101Q-HZ Instruction Manual

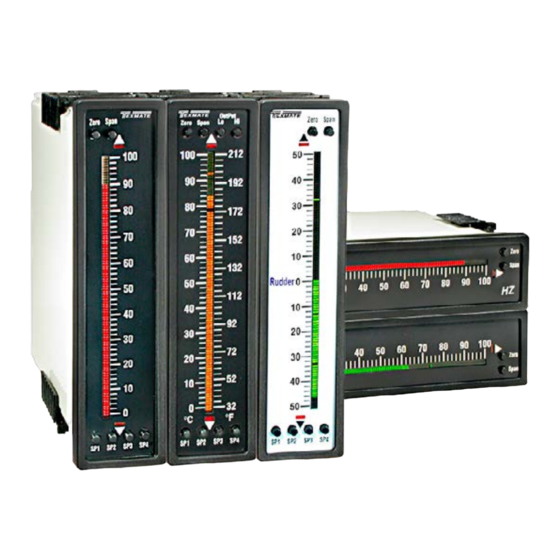

High Accuracy Programmable AC Line Frequency Bargraph Meter and Transmitter.
Input Module Compatibility
✔
LEOPARD FAMILY:
Plug-in I-Series Input Signal Conditioners are
approved for Leopard Family meters.
See www.texmate.com for an up to date listing.
General Features
• AC Line Frequency Range 45-200Hz @ 80-300VAC
• A red or optional green, Tri-color 101 segment bargraph.
• Two 9 Amp Form C, and two 4 Amp Form A relays available
• Optional isolated 16 bit analog output. User or factory
scalable to 4 to 20 mA, 0 to 20 mA or 0 to 10 V across any
desired span from ± one bar to the full scale range
• Provision to connect an external programming lockout
switch.
• Optional NEMA-4 front cover.
• Four programmable setpoints.
• Relays activation can be selected to occur above (HI) or
below (LO) each setpoint.
• Optional 6 inch adaptor to replace switch board analog
meters.
• UL Listed
Analog Output Scaling and Calibration . . . . . . . . . . . 9
Case Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Component Layout . . . . . . . . . . . . . . . . . . . . . . . . . 11
Connector Pinouts . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Connectors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Controls and Indicators . . . . . . . . . . . . . . . . . . . . . . . 2
Custom Face Plates and Scale. . . . . . . . . . . . . . . . 13
Glossary of Programming Symbols and Modes of
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
FL-B101Q-HZ_manual (d0059)
Range 45-200Hz@80-300VAC, Optional 4-20mA or 0-10VDC Output.
Suitable for Power Generators and Switchboard Analog Meter Replacement.
More than 50 different
LEOPARD
General Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Input Module Compatibility . . . . . . . . . . . . . . . . . . . . . . 1
Input Module Component Glossary. . . . . . . . . . . . . . . 11
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
One Point Quickset Rescaling and Calibration
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . 14
Opening the Case to Access Mode Select Headers . . .4
Texmate, Inc. Tel. (760) 598-9899 • www.texmate.com
LEOPARD FAMILY
FL-B101Q-HZ
Leopard Bargraph Meter
AC Line Frequency
101 Segment in a 9/64 DIN CASE
Specifications
Input Specs: ..............
Full Scale Ranges:......Factory installed range of 45Hz to 200Hz.
A/D Converter: ..........14 bit single slope
Accuracy: ..................±(0.05% of reading + 1segment)
Temp. Coeff.: .............100 ppm/°C (Typical)
Warm up time: ...........2 minutes
Conversion Rate: ......10 conversions per second (Typical)
Bargraph Display: .....101
Positive Overrange: ..Bargraph display flashes
Negative Overrange: First segment of bargraph display flashes
Relay Output: ............Two 4 Amp Form A relays and Two
Analog Output: .........Isolated 16 bit user scalable mA or V
OIC (mA out) ...........4-20 mA @ 0 to 500Ω max loop resistance
OIV (volts out) .......... 0-10 V DC @ 500 Ω or higher resistance
Power Supply: ...........AC/DC Auto sensing wide range supply
PS1 (std) ................85-265 VAC, 50-400 Hz / 95-300 VDC @ 4.2W
PS2 .........................15-48 VAC,50-400 Hz / 10-72 VDC @ 4.2W
Operating Temp.: ......0 to 50°C
Storage Temp: ...........–20°C to 70°C
Relative Humidity: ....95% (non condensing)
Case Dimensions: ....3/32 DIN, Bezel: 36x144 mm(1.42"x5.69")
Weight: .......................9.5 oz., 12 oz when packed
Index
Differential with Frequency to Voltage con-
verter. Inputs resistively isolated to 1400V
from the internal ground of meter by
1.94MΩ, so that phase to phase measure-
ments up to 300V AC can be safely made
segment 4" vertical
horizontal (optn), red (std), green (optn),
9 Amp Form C relays
Depth behind bezel: (4.64") 117.5 mm
Plus 10 mm (0.39") for Right-angled con-
nector, or plus 18.3 mm (0.72") for Straight-
thru connector, or plus 26.5 mm (1.05") for
Push-On connector.
Overview of Display Modes, Scaling Capabilities and
Operation Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Pin Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Setpoint Adjust . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Setting the Colors . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Standard Display Mode Calibration Procedure. . . . . 6
Two Point Quickset Scaling and Calibration . . . . . . . 5
(std),
Page 1
