H-KING CESSNA TTX
INSTRUCTION MANUAL
INTRODUCTION.

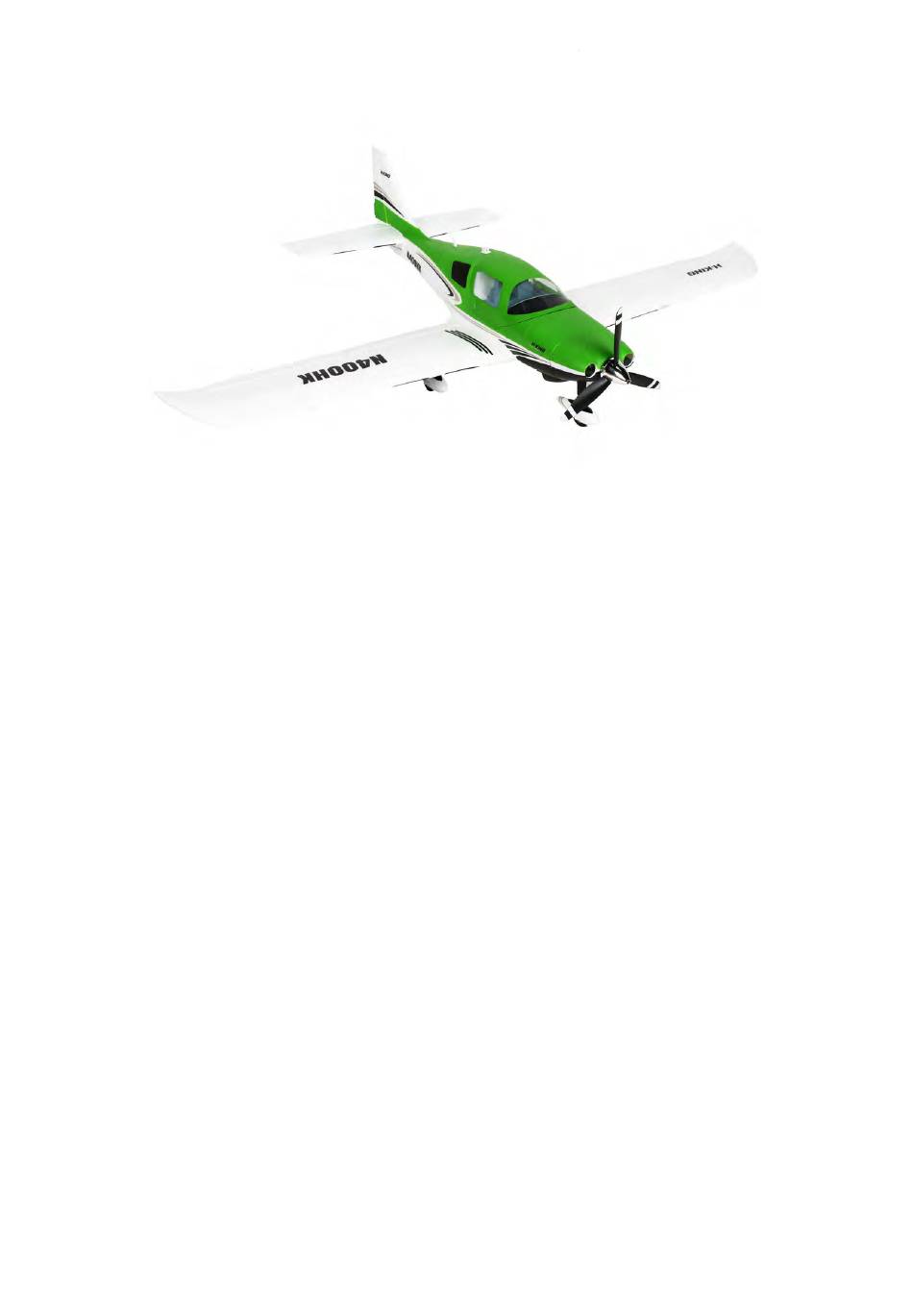

The H-King Cessna TTX is an excellent, scale rendition of the original plane
made by Cessna. It is made of tough EPO foam and is beautifully crafted with
panel lines and scale cockpit and other details. Plenty of power with the scale
3-blade propeller.
The Cessna TTX is a single-engine, low wing, general aviation plane with a
fixed tricycle undercarriage and was produced between 2004-2018 by Cessna
Aircraft. It was originally called the Cessna 400. It was designed to carry a pilot
and three passengers.
At 1100mm wingspan the TTX is small enough to transport fully assembled but
if you need to take the wings off it is extremely easy with the new wiring quick-
connectors. Take-offs and landings are a breeze thanks to the scale slotted
flaps and the super bright navigation lights will allow everyone to easily spot this
streamlined plane. With a thrust ratio of 1:1.3 there is no trouble doing some
easy rolls and loops and other maneuvers. The large hatch area makes
installing a battery so easy.
This is a beautiful, scale plane which will have you the talk of the field.
Advertisement
Related Manuals for H-KING CESSNA TTX
Summary of Contents for H-KING CESSNA TTX
- Page 1 INSTRUCTION MANUAL INTRODUCTION. The H-King Cessna TTX is an excellent, scale rendition of the original plane made by Cessna. It is made of tough EPO foam and is beautifully crafted with panel lines and scale cockpit and other details. Plenty of power with the scale 3-blade propeller.
-
Page 2: Safety Instructions
H-KING SAFETY INSTRUCTIONS 1. Please read this manual carefully and follow the instructions before you use this product. 2. This airplane is not a toy, due to it's advanced flying qualities it is only suitable for pilots with intermediate or higher experience. -
Page 3: Specifications
Recommended Battery (not supplied): 3S (11.1V 1500-1800mah 15-20C lipoly or similar Required: 2.4Ghz 6ch or more transmitter and receiver . CESSNA TTX Features: • Lightweight yet strong EPO material • Scale details like antennas, steps, cockpit, panel lines and more •... -
Page 4: Kit Contents
H-KING KIT CONTENTS... - Page 5 CESSNA TTX Step 1: Clip the undercarriage into the slot in the fuselage, squeeze the legs together slightly so that it fits into the slot. Once in place remove the pressure and it will hold in place, no retaining screws are required.
- Page 6 H-KING Step 3: Apply medium or slow setting CA glue to the rudder hinges then slide the rudder into the slots in the vertical stabilizer. Once glue has set attach the rudder clevis to the control horn. Step 4: Attach the wings using the 2 M3 x 20mm hex head screws provided.
- Page 7 CESSNA TTX Automatic wing connection of lights, aileron and flap servos. Automatic fuselage connection of lights, aileron and flap servos.
- Page 8 CESSNA TTX Step 5: Using a medium CA glue in place the scale antenna into the slot in the top of the fuselage. Step 6: Glue into place the 2 scale footrests either side of the fuselage just behind the wing...
- Page 9 H-KING Step 7: Attach the 3 bladed propeller and spinner as shown. Remove the nut and washer from the shaft, fit onto the prop shaft first the spinner backplate and then the propeller. Refit the nut and washer and tighten. Next fit the spinner cone over the propeller and hold in place with the M3 x 10mm screw provided.
- Page 10 1st stage 8mm, 2nd stage 22-24mm (measured at the root). Flying We shall not delve too much into flying the Cessna TTX as it is not a model designed for beginners but for the model pilot who has flown low wing type aircraft before.
- Page 11 H-KING Recommended Batteries.
- Page 12 CESSNA TTX...
