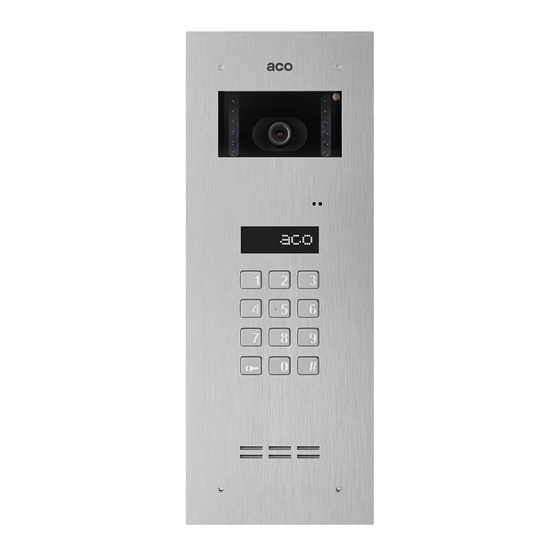

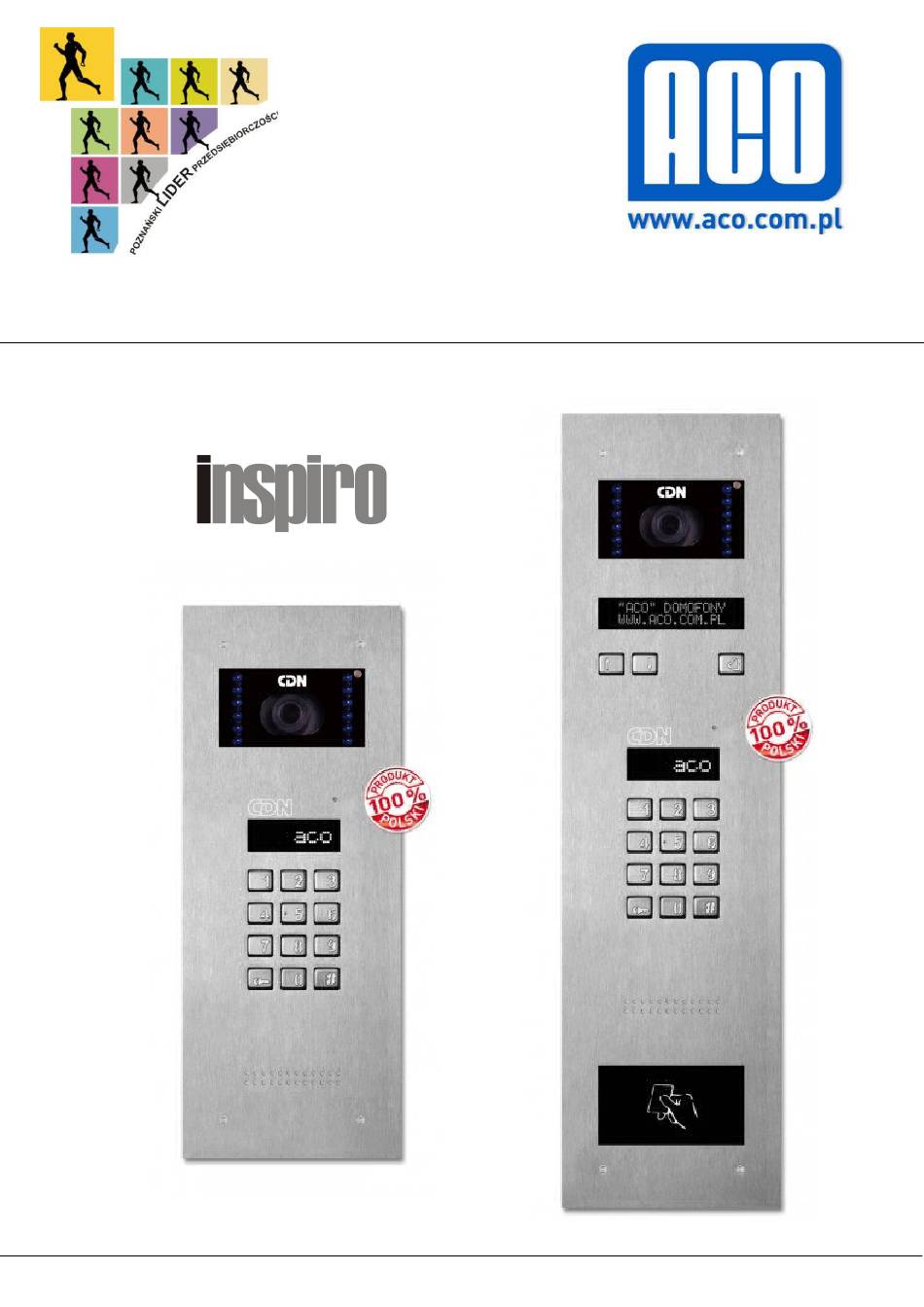

- Page 1 INSPIRO – installation manual for digital video door phone panels Software v56 Applies to INSPIRO series 4, 6, 7, 8, 11, 15, 16 60-479 Poznań, Strzeszyńska 56, Poland, tel./ fax 061-8439-371...
- Page 2 RULES FOR STORAGE OF USED ELECTRICAL EQUIPMENT The used electrical equipment may not be stored together with other waste. Store it at sites intended for this purpose. For this reason, address the responsible institutions or companies dealing with waste recycling. - Directive 2002/96/EC/ dated January 27 , 2003 MOUNTING...
- Page 3 • Power consumption max. 500mA • Max. load for the electric strike out 1A • Maximal installation length 70m – from the last power supply, total 300m – if using additional power supplies. CONNECTION DIAGRAM FOR ONE DEVICE PROGRAMMING THE PANEL In order to enter the installation programmes, press the ”key”...
- Page 4 PROGRAMS OF THE PANEL: SERVICE OPENING OF ZMIANA KODU OTWIERANIA Open OpKey THE ELECTRICAL DOOR INDYWIDUALNEGO, STRIKE ADMINISTRATORA ETTING THE NUMBER Hi-Lo Rings SETTING QUIET OR LOUD OF CALL RINGS, CALL PERMISSION TO CALL THE PREMISES SWITCHING ON –OFF THE OpInfo SfCall SERVICE CALL OF THE...
