COUGAR MARS GAMING DESK Assembly Drawing

M A R S
GAMI NG DE SK

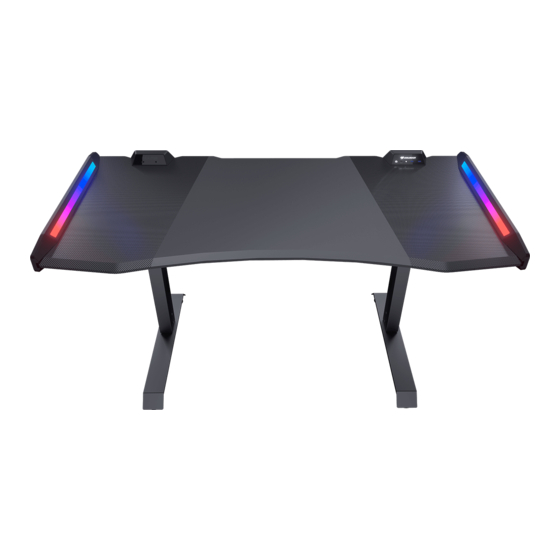

COUGAR MARS gaming desk provides ergonomic design and generous gaming space with dazzling
RGB lighting effects for enhancing your superior gaming experiences.
It's how we make your gaming dreams come true and present a unique gaming desk for you!

Enormous and Ergonomic Gaming Space

The spacious gaming surface with carbon fiber texture brings you plenty of space for your gaming
monitors, gaming keyboards, and other gaming gears. Highly ergonomic designs like curved edges
and rounded corners give you better and more comfort gaming experience.

Multifunction Designs

With control stands, you can easily control PC and connect USB/audio devices conveniently. COUGAR
Mars maximizes your gaming experience.
Dual-sided RGB Lighting Effects
In order to increase more immersive feeling in your gaming atmosphere. MARS provides various RGB
lighting effects. It is also compatible motherboards' 5V connection with Asus Aura Sync, Gigabyte RGB
Fusion, MSI Mystic Light Sync, and ASRock Polychrome Sync for system-wide lighting synchronization.

High-strength Welded Steel Frame for Maximum Stability

COUGAR Mars is made of high-strength steel frame for maximum stability. The height of the gaming
desk is manually adjustable between three levels (75/80/85 CM) for the most comfortable position.
ENGLISH
•Ergonomic curved edges design and rounded corners.
•Dual side wing: RGB backlight effects.
•Support for 5V RGB motherboard connections (ASUS,ASRock,Gigabyte or MSI).
•USB3.0 pass-through x2 & Audio Jacks.
•PC's power, reset function are easily accessible on control panel.
•Desktop height adjustment (75/80/85 CM).
•Carbonlike Surface Design.
•High-strength welded steel frame for maximum stability.
ESPAÑOL
•DesignDiseño ergonómico de bordes curvos y esquinas redondeadas.
•Wing Ala lateral doble: RGB efectos de retroiluminación.
•Soporte para conexiones de placa madre de 5V RGB (ASUS, ASRock, Gigabyte o MSI).
•USB3.0 pass-through x2 y conectores de audio.
•PowerEl poder de la PC, la función de restablecimiento son fácilmente accesibles en el panel de control.
•Adjustment Ajuste de altura de la mesa (75/80/85 CM).
•Diseño de superficie de carbono.
•Frame Bastidor de acero soldado de alta resistencia para una máxima estabilidad.
ITALIANO
•Design ergonomico dei bordi curvi e angoli arrotondati.
•Ala laterale doppia: RGB effetti di retroilluminazione.
•Supporto per connessioni della scheda madre RGB 5V (ASUS, ASRock, Gigabyte o MSI).
•USB3.0 pass-through x2 e prese audio.
•La potenza del PC, la funzione di reset sono facilmente accessibili sul pannello di controllo.
•Regolazione altezza del frontalino (75/80/85 CM).
•Carbonlike Surface Design.
•Telaio in acciaio saldato ad alta resistenza per la massima stabilità.
PORTUGUÊS
•Edges Design de bordas curvas ergonómicas e cantos arredondados.
•SideA asa lateral dupla: RGB efeitos de luz de fundo.
•Suporte para conexões de placa-mãe de 5V RGB (ASUS, ASRock, Gigabyte ou MSI).
•USB3.0 pass-through x2 e tomadas de áudio.
•PowerPC poder, função de reset são facilmente acessíveis no painel de controle.
•Adjustment Ajuste de altura do desktop (75/80/85 CM).
•Design de superfície de carbono.
•Estrutura de aço soldada de alta resistência para máxima estabilidade.
1 2
A
B
5
x4
5
4
x8
10
4
x8
Position and do not tighten
!
the screws.
Positionner et ne pas serrer
les vis.
ASSEMBLY DRAWING
DESSIN D'ASSEMBLAGE
SPECIFICATIONS

Product Name

COUGAR MARS Gaming Desk

Model No.

CGR-MARS

I/O Panel

USB 3.0 x 2 / Audio Jacks x 2 /Power button / Reset button / RGB button

Desk Dimension

153.3 (W) x 77.1 (D) mm / 60.4 (W) x 30.4 (D) inch

Desk Height

Three adjustment : 75 / 80 / 85 (H) cm ; 29.5 / 31.5 / 33.5 (H) inch
SPÉCIFICATIONS
Nom de Produit Bureau Gaming COUGAR MARS
Numéro de Modèle CGR-MARS
Panneau d ʼ E/S USB 3.0 X 2 / Prises Audio X 2 / Bouton d ʼ Alimentation / Bouton de Réinitialisation / Bouton RGB
Dimensions du Bureau 153.3 (L) x 77.1 (P) mm / 60.4 (L) x 30.4 (P) pouce
Hauteur du Bureau Trois ajustements : 75 / 80 / 85 (H) cm ; 29.5 / 31.5 / 33.5 (H) pouce
ДАТА ИЗГОТОВЛЕНИЯ ПРОДУКЦИИ
год и месяц изготовления продукции указаны в серийном номере продукта.
(существует 2 способа определения даты изготовления, оба способа описаны ниже)
A
После S/N: первые две цифры означают год, вторые две – месяц изготовления.
Например, S/N: H1702000001 означает, что товар был произведен в феврале 2017 года.
B После S/N: если указаны буквы, то две буквы представляют цифры из таблицы ниже,
и означают год, последующие две цифры – месяц изготовления.
Например, S/N: DAG02REVI000001 означает, что товар был произведен в феврале 2017 года.
БЪЛГАРИЯ
• Подробни инструкции за употреба изтеглете от: https://cougargaming.com/bg
3
C D
1
2
6
I
H
I
4
x 8
11
16 Screws
Make sure the 16 screws are positioned
!
and then lock solidly truly.
Assurez-vous que les 16 vis sont
positionnées puis verrouillez solidement.
A B C D E F G H I J
1 2 3 4 5 6 7 8 9 0
Например, AG = 17 = 2017 год
●
България QR код

• Height Adjustment:

MARS gaming desk has three adjustment options: 75cm – 80cm – 85cm
(desktop to ground).
To strengthen the stability, please fasten TWO screws on each side.
• Réglage de la Hauteur:
Le bureau Gaming MARS a trois options de réglage 75 cm - 80 cm - 85 cm
Pour renforcer la stabilité, veuillez serrer DEUX vis de chaque côté.
x 4
x 4
7
1
x 4
12
M
7
ACCESSORY KIT
CTN:2/2
A
1
x 8
2 x 4
3
x 1
B
4
x4 4
Spare parts : 1 / 4 x 2
5
x 4
4
75cm
85cm
80cm
8 9
J
4
x 8
Position and do not tighten
!
the screws.
Positionner et ne pas serrer
les vis.
13
N
6
x4
CTN:1/2
C
6
x8
7
x4
8
x1
D
9
x1
x1
10
x1
11
x1
12
1
F
G
2
E
• Please follow this step to assemble two sets.
• Veuillez suivre cette étape pour assembler deux ensembles.
4 x6
K
L
O
P
x8
When the control stands are uneven on the gaming desk,
they will be automatically corrected when locking the screws.
To avoid the screw bosses are damaged,please do not lock
!
the screws too tight.
Lorsque les supports de contrôle sont inégaux sur le bureau gaming,
ils seront automatiquement corrigé lors du verrouillage des vis.
Pour éviter que les bossages des vis ne soient endommagés,
veuillez ne pas bloquer les vis trop serrées.
