COUGAR PURE ROYAL ELECTRIC STANDING DESK Assembly Manual

ROYAL ELECTRIC STANDING DESK
PURE version
ASSEMBLY GUIDE
SPECIFICATION
Product Name Cougar ROYAL ELECTRIC STANDING DESK Pure version
Preassembled Desk Frame 2 stage columns and dual motors desk frame
Desk Dimension 59"x31"x0.8" or 47"x31"x0.8"
Height Range 27"- 47"(without desktop) / 28"- 48"(with desktop)
Travel Speed 1.57"/second
Noise Level ≦50 decibels during motion
Lifting Capacity 220 Ib
Input 100-240VAC, 50/60Hz
Quality Certifications ANSI/BIFMA X5.5-2014 Durability Certification, CE Certification
Desktop Chemical Test Meet RoHS, SGS & PROP 65 compliant
Electronic Devices Safety Certifications Lifting Column, Control Box – UL certification
CAUTION, USE & LIABILITY
CAUTION
Make sure no obstacles are in the desk's path. Make sure the desk top is not touching any walls.
Make sure all cords are of appropriate lengths to accommodate the change in desk height.
Be aware of your hands
Read and understand this manual before attempting to install or operate.
●
This product is not intended for use by young children or for those who require supervision.
●
Do not sit or stand on the desk. Do not crawl or lie under the desk.
●
Do not place any objects taller than 20" underneath the desk.
●
● Do not open any of the components – lifting columns, control box, or controller. There is a
risk of electric shock.
T he desk must b e I N IT IA L IZ E D b e fo r e f ir st u se .
●
USE & LIABILITY
This sit-to-stand adjustable desk has electric motors and is designed for use in an indoor environment
and dry work areas only. The desk height is adjustable so that it can be positioned at the most suitable
height. Any other use is at user's risk. Under no circumstances does the manufacturer accept warranty
claims or liability claims for damages caused from improper use or handling of the desk.
FEATURES
Cougar Electric Standing Desk chooses outstanding lifting columns,
control box and keypad with exceptional quality construction. With
cable management attached to preserve you the tidy desk. We
integrate all your needs into this desk.
ENGLISH
Premium Stylish Desktop
●
● Dual Motor Desk for Extra Weight Capacity, Smooth Lifting and Reliability
Superior Knob Control Memory Keypad
●
World-Class Stability Frames
●
Convenient Cable Management Tool
●
ESPAÑOL
● Escritorio elegante de primera calidad
Teclado de memoria superior controlado por perilla
●
Marcos de estabilidad de clase mundial
●
Cómodas herramientas de gestión de cableado
●
Escritorio de motor dual para una capacidad de peso extra, elevación suave,
●
segura y fiable
PORTUGUÊS
Mesa ergonômica e confortável
●
Avançados botões de controle com apenas 1 toque
●
Estrutura de mesa estável de classe mundial
●
Design conveniente de gerenciamento de cabos
●
● Elevação confiável e estável com acionamento por motor duplo
РУССКИЙ
● Стильный рабочий стол премиум-класса
Двухмоторный стол для большего веса, плавного хода и надежности
●
Первоклассная панель управления памятью высот
●
Устойчивая основа отменного качества
●
Удобный механизм укладки кабелей
●
中 文
舒适的人体工学桌版
●
● 稳定可靠的双马达驱动升降系统
高级拨杆式一键到位控制器
●
世界一流的稳定性桌架
●
便利收纳的理线设计
●

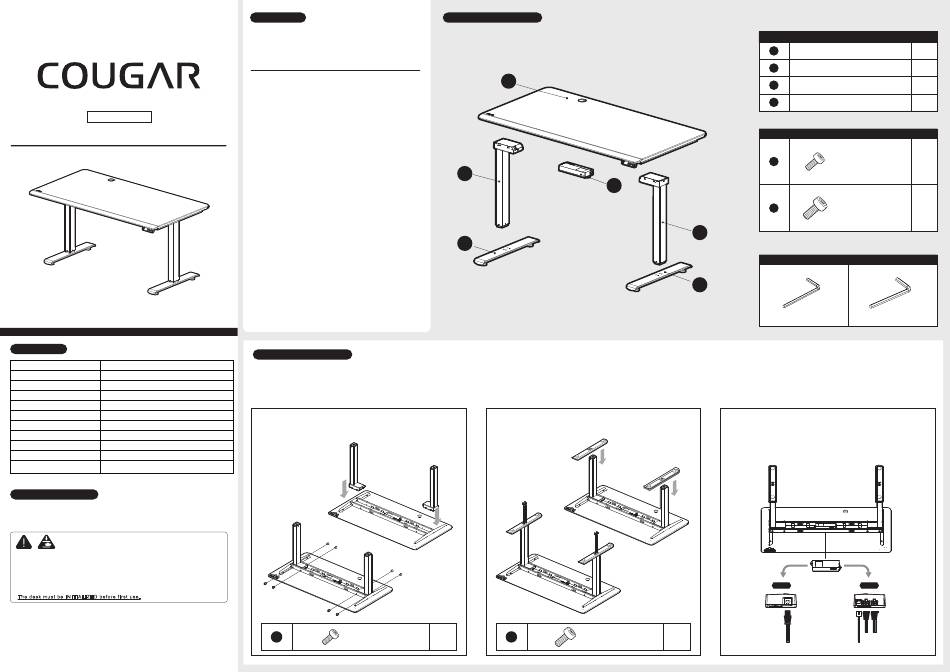

ASSEMBLY INSTRUCTIONS
BEFORE YOU BEGIN
1. Lay out all components and hardware to ensure that you have everything listed.
2. The desk weighs over 100 lbs. Two people are needed to turn or move desk top and some components.
When turning or moving the assembled desk, grab it by Lifting column (not the desk top).
3. Assemble on the soft and non-abrasive surface to avoid scratch or damage to the desk top.
STEP 1
Insert the lifting column so that the back of the lifting column and the back of the crossbar
end are flush. Use Hex wrench 5mm to tighten with 4pcs of screw A (M6x16mm) screws
on each side.
A
M6x16mm hexagon screw
PARTS & HARDWARE LIST
1
2
4
3
STEP 2
Use 8mm Hex wrench to secure foot to lifting column with four screw B (M10x15mm)
on each side.
B
x 8 M10x15mm hexagon screw
PARTS / COMPONENT LIST
1 Desk Top
2 Lifting Column
3
Foot
4
Control Box
HARDWARE LIST
A M6x16mm Hexagon Screw
B
M10x15mm Hexagon Screw
2
＊Listed qty included 2 extra screws in the package as spare parts
TOOLS REQUIRED
3
Hex Wrench 5mm
STEP 3
1. Connect height controller cable to the right plug on control box.
2. Connect motor cables to control box. Motor cables can be connected interchangeably
to either port.
3. Plug power cable to the left plug on control box.
4. Then put back the sheet metal and make sure well screwed with four screws as original
condition.
Left
x 8
Power Cable Height Controller Cable
x 1
x 2
x 2
x 1
x 1 0
x 1 0
Hex Wrench 8mm
Right
Motor Cable
