BT8374

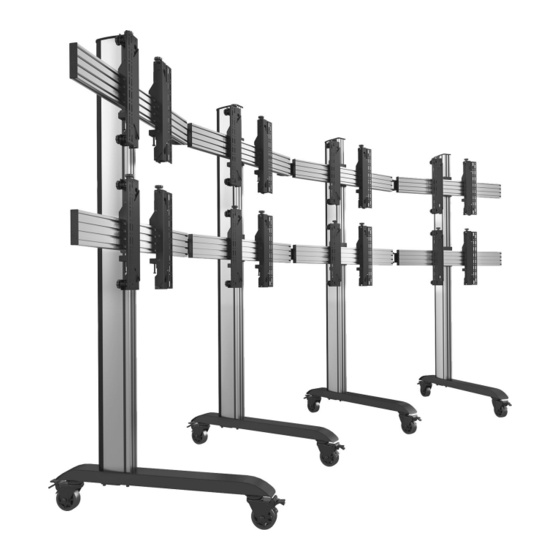

UNIVERSAL MOBILE CURVED VIDEOWALL STAND
INSTALLATION GUIDE & PARTS LIST
This Pack Contains 1 Stand
PLEASE KEEP THIS FOR FUTURE REFERENCE
Installation Safety Notes.....................................................................................................................2
Parts List.............................................................................................................................................4
Optional Accessories........................................................................................................ ..................7
Installation Instructions........................................................................................................................8
B-Tech Contact Details.....................................................................................................................24
INSTALLATION TOOLS REQUIRED
Crosshead
screwdriver
FEATURES
• Universal design suitable for all videowall screens
• Suitable for videowall screens from 39" - 70"
• Max weight per screen: 50kg (110lbs)
• Designed for screens with VESA
• Tool-less micro-adjustments for seamless
• Easy to use angle adjustment with a range up to +/-45º
• Universal screen position spacer to speed up the
• Includes non-marking 4" locking/braked castors and
• Integrated cable management
• Safety screws help prevent unauthorised removal
• All mounting hardware included
CONTENTS
10mm Spanner
B-TECH AV MOUNTS
www.btechavmounts.com
mounting patterns
screen alignment
installation process
alternative levelling feet
of screens
70"
177cm
Level
& non-VESA
®
50kg
Per Screen
Knife
TM
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for BTECH SYSTEM X BT8374
Summary of Contents for BTECH SYSTEM X BT8374
- Page 1 BT8374 UNIVERSAL MOBILE CURVED VIDEOWALL STAND INSTALLATION GUIDE & PARTS LIST This Pack Contains 1 Stand PLEASE KEEP THIS FOR FUTURE REFERENCE FEATURES • Universal design suitable for all videowall screens • Suitable for videowall screens from 39" - 70" •...
- Page 4 BT8374 Due to the multiple installations available each option below PARTS LIST is dependent on the stand ordered. PLEASE KEEP THIS FOR FUTURE REFERENCE CASTORS BASE BT8380-CASTORS BT8380-BASE ITEM PART NAME PER PACK BASE SUPPORT STEM M8 x 90mm SCREW M8 WASHER LEVELLING FOOT ITEM...
- Page 5 ANGLE ADJUSTMENT CONNECTOR BT8390-AAC ITEM PART NAME PER PACK ANGLE CONNECTOR M8 x 16mm SCREW M8 WASHER M8 x 12mm SCREW M8 SLIDING NUT 5AF HEX KEY SPACER BT8390-SP PART NAME ITEM PER PACK SPACER INTERFACE KIT Screen Interface Arms BT8390-VESA400MAP BT8390-VESA400MAF PART NAME...
- Page 6 WARNING CAN TIP OVER WHICH MAY LEAD TO SERIOUS INJURY. DO NOT ALLOW CHILDREN UNDER 16 TO MOVE TROLLEY. MOVE TROLLEY SLOWLY NEVER LEAVE TROLLEY ON ALWAYS APPLY BRAKES WHEN AN INCLINE. TROLLEY IS STATIONARY RELEASE BRAKES WHEN PUSHING ALWAYS PUSH AND PARK ON LEVEL GROUND TROLLEY.
- Page 7 INSTALLATION NOTES • Install stand on level ground • Minimum two person assembly When verifying the stability of the structure, consider the following external factors: 1. The strength of the floor. 2. Exposure to sudden and severe wind. 3. Danger arising from contact with people and / or objects. (eg installations in passageways, emergency exits).
- Page 8 OPTIONAL: EXTENDING THE COLUMNS i. Insert the items C7 halfway into the non-threaded end of item C1. The two joining bars with grub screws go in the front of the column and the 2 joining bars with hex bolts go in the back. IMPORTANT: Joining bars should be inserted into the non-threaded end of the 180cm column.
- Page 9 INSTALLATION INSTRUCTIONS Attach Joining Plate to Column i. Connect together four x item D3 with item D2 onto each item D1. ii. Lay items C1 on the floor and slide item D1 onto item C1. IMPORTANT: Make sure the end with M8 threads are at the bottom of the columns.
- Page 10 iii. Use item G1 to set the distance between items D1 on item C1 according to the screen size. Once set, tighten item D3 with item D4. ADJUSTMENT KNOB Leave at least a 5mm gap at top of column for item C2...
- Page 11 Insert Sliding Nuts into Mounting Rails Lay items E1 on the floor. For each attachment of item D1, insert 4 x item D2 into item E1. Two in the bottom slot, two in the second from top slot. To attach item F1 to item E1, insert 4 x item F5 into the end of the rail. Two in each centre slot. Angle Adjustment Connector Column / Joining Plate Assembly...
- Page 12 Connect Rails Together using the Angle Adjustment i. Assemble items F2 and F3 to item F1. Do not fully tighten the screws and washers. ii. With the rails flat on the floor, fix item F1 to 2 x item E1 using items F3, F4 and F5. Make sure all rails are fixed using the same positions on item F1*.
- Page 13 Attach Columns to Rails On the floor lay item C1 onto item E1. Attach item D1 to item E1 by fastening item D3 into the inserted items D2. To ensure straight assembly of item C1 make sure the distance of items C1 to the end of item E1 are set the same on each rail.
- Page 14 Assemble Bases to Columns i. If required, unscrew item A5 on item A1 and replace with item B1 before attaching bases to the columns. NOTE: Ensure castors are set on the braked position for assembly. ii. On the floor, attach item A1 to item C1 using items A2, A3 & A4. Once bases are fixed to columns, return stand to upright position.
- Page 15 Fix Angle Set the angle required on item F1 and fully tighten all screws with item F6.
- Page 16 Attach Interface Arms to Screen (BT8390-VESA400MAF Arms) Attach items H1 & H2 to the back of the screens using items A-F. Ensure the arms are positioned the correct way round and the same holes are used on both arms. SCREEN FIXING KIT SCREEN Use spacers for screens with recessed fixings SCREEN...
- Page 17 Attaching Pop-Out Interface Arms to Screens (BT8390-VESA400MAP arms) Attach items H1 & H2 to the back of the screens using items A-F. Ensure the arms are positioned the correct way round and the same holes are used on both arms. SCREEN FIXING KIT SCREEN ii.
- Page 18 Hook Screen onto the Stand Hook the first screen centrally onto the bottom rail. A. BT8390-VESA400MAF ARMS B. BT8390-VESA400MAP ARMS...
- Page 19 Mount and Align Screens i. Laterally adjust the screen to the desired position, ensure the screen is level and parallel to the floor using the micro-adjustment knobs on the interface arms - See Step 10. Lateral Adjustment X axis ii. Hook on the remaining flat screens. After mounting each screen use the micro-adjustment knobs on the interface arms to level and align screens.
- Page 20 Align Screens using the Micro-Adjustment i. Align the flat screen to the floor using the height adjustment knobs. ii. Use the depth adjustment knobs to ensure flat screen is perpendicular with the floor to ensure that each corner of the screen is aligned evenly. Micro-adjust top row first and work down row by row.
- Page 21 Secure Screens Once screens are aligned, tighten the safety screws on the bottom of items H1 & H2 SAFETY SCREW Servicing Screens (Pop-Out Arms only) Parts H1 & H2 Push centrally at the left and right of the screen popped-out to pop-out the mount.
- Page 22 Add End Caps & Cable Management Covers Once all the screens and power cables are connected and if possible routed down the backs of item C1, partially clip on items C3, this allows easy removal if more cables need adding. Once satisfied all cables are fitted, clip items C3 on fully.
- Page 23 PRODUCT DIMENSIONS BASE AND INTERFACE ARMS BT8380-BASE 793.5mm 950mm BT8390-VESA400MAF 8.4mm 6.4mm 30mm 49.7mm (Tolerance 1mm) +/-10mm Depth Adjustment 30mm 20mm 40.1mm BT8390-VESA400MAP 18.8mm 6.4mm 8.4mm 237.2mm (Tolerance 1mm) 100.7mm 68.7mm (Closed depth) 110.9mm +/-10mm Depth Adjustment THESE DIMENSIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION...
- Page 24 B-Tech AV Mounts is a division of B-Tech International Design & Manufacturing Ltd. B-Tech, Better By Design & System X are registered trademarks of B-Tech International Design & Manufacturing Ltd. All other brands and product names are trademarks of their respective owners. Photographs are for illustrative purposes only. E&OE. AMA-BT8374-V1.1-0619-BTECH...
