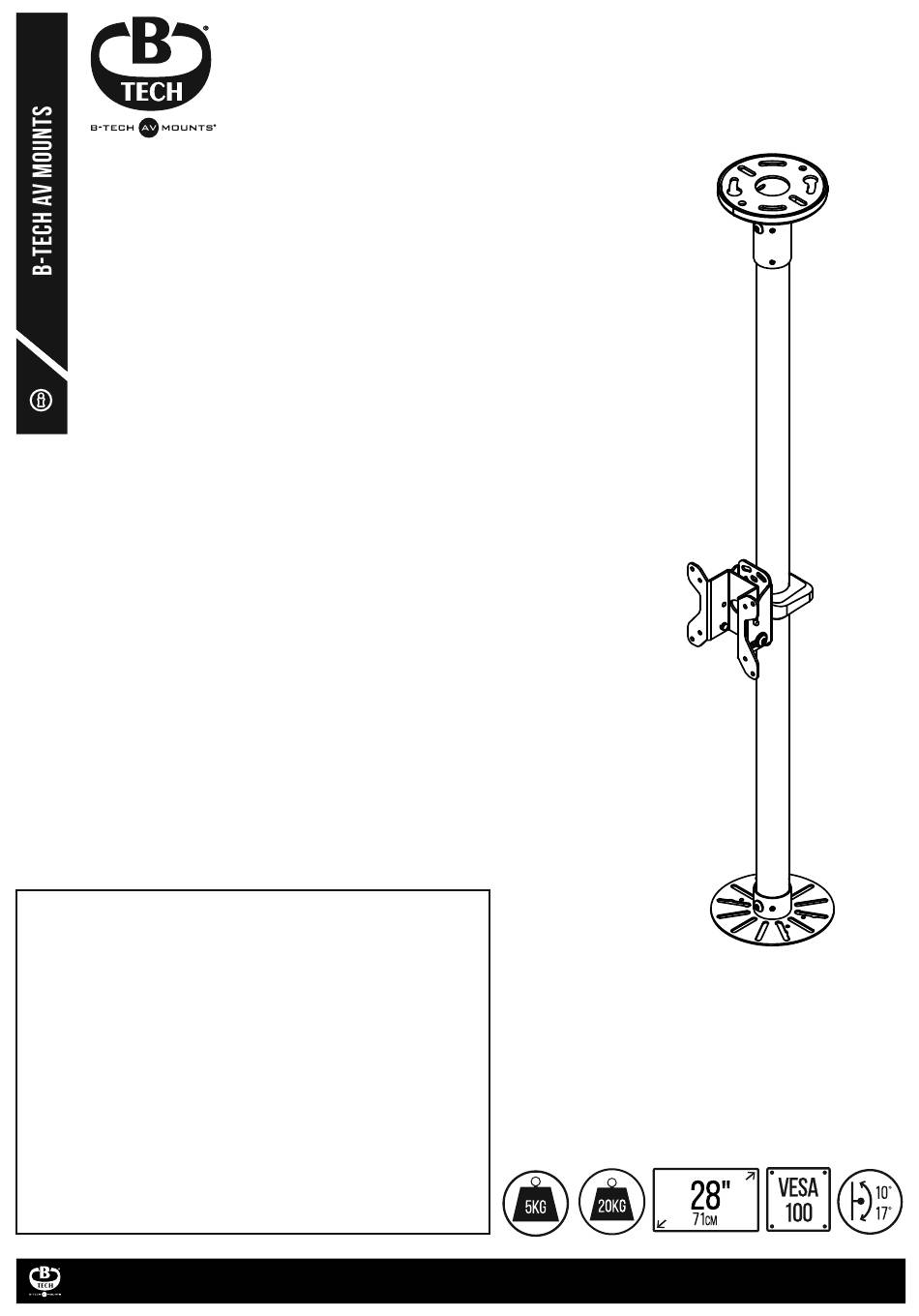

BT5963
CCTV Ceiling Mount
for a VESA 100 Tilt Screen
and Dome Surveillance Camera
INSTALLATION GUIDE
SPECIFICATIONS
• Mounts a screen and a dome camera from the ceiling
• Max load: 20kg (screen) / 5kg (camera)
• Available in two Ø38mm pole lengths:
BT5963-FD100 pole length 1000mm
BT5963-FD200 pole length 2000mm
• Recommended for screens up to 28"
• Suitable for screens with VESA® fixings:
75 x 75mm & 100 x 100mm
• Screen tilt adjustment: +17° / -10°
• Carousel suitable for cameras with fixings from
51mm up to 127.5mm apart
• Integrated cable management
CAMERA
www.btechavmounts.com
SCREEN
Advertisement
Related Manuals for BTECH BT5963
Summary of Contents for BTECH BT5963
- Page 1 • Mounts a screen and a dome camera from the ceiling • Max load: 20kg (screen) / 5kg (camera) • Available in two Ø38mm pole lengths: BT5963-FD100 pole length 1000mm BT5963-FD200 pole length 2000mm • Recommended for screens up to 28”...
-
Page 2: Installation Safety Instructions
CONTENTS Installation Safety Notes........................Parts List..............................Installation Instructions........................Product Dimensions..........................B-Tech Contact Details........................INSTALLATION SAFETY INSTRUCTIONS CAUTION: This mount is intended for use only with the maximum weights indicated. Use with equipment heavier than the maximum indicated may result in instability causing possible injury. Do not attempt to install this product until all instructions and warnings have been read and properly understood. - Page 4 BT5963 PARTS LIST PLEASE KEEP THIS FOR FUTURE REFERENCE...
-
Page 5: Installation Tools Required
ITEM DESCRIPTION CEILING PLATE M8 x 10mm HEX SCREW M6 x 5mm HEX GRUB SCREW Ø38mm POLE CEILING COVER PLATE Ø38mm COLLAR M8 x 12mm HEX SCREW M6 x 8mm HEX GRUB SCREW COLLAR COVER PLATE MOUNTING PLATE INTERFACE PLATE M8 x 12mm PIN HEX SCREW M8 WASHER CAROUSEL INTERFACE... -
Page 6: Installation Instructions
INSTALLATION INSTRUCTIONS MOUNT CEILING PLATE TO CEILING i. Pre-drill holes for ceiling fixings (not supplied). ii. Assemble two fixing screws on opposite sides, leaving a 10mm gap between the screw head and ceiling. iii. Hook item 1 onto the fixing screws and twist into position. Leave 10mm gap to hook on ceiling plate CEILING... - Page 7 FIX POLE TO CEILING PLATE i. Insert item 4 into item 1 and secure in place with item 2. ii. Tighten item 3, fixing item 4 to item 1. iii. Fit item 5 to item 1. CEILING Note: Align ceiling CEILING plate hole with the hole on the pole.
- Page 8 FIX CAROUSEL INTERFACE TO POLE i. Attach item 14 to the bottom of item 4 using item 2. ii. Tighten item 3, securing item 14 to item 4. Note: Align the hole on the carousel interface with the hole on the pole. ATTACH CAMERA TO CAROUSEL INTERFACE Fix the camera to item 14 using items 16-21.
-
Page 9: Mounting Plate
FIX INTERFACE PLATE TO SCREEN Attach item 11 to the rear of the screen using item 15. SCREEN HOOK SCREEN ONTO SECURE SCREEN MOUNTING PLATE On both sides of item 7 insert items 12 & 13 securing the screen to the mount. Hook item 11 onto item 10. - Page 10 BT5963 DIMENSIONS 101.5mm 68mm PLEASE KEEP THIS FOR FUTURE REFERENCE 120mm 92mm CEILING MOUNT 128.4mm 8.5mm 8.5mm 30° 17mm 30° 8.5mm 30° 114mm SCREEN INTERFACE 75mm 100mm 90mm CAROUSEL INTERFACE 76mm 51mm 4.3mm 33.5mm 6.5mm 30° 127.5mm 30° 60.5mm 144mm 30°...
- Page 11 BT5963 DIMENSIONS PLEASE KEEP THIS FOR FUTURE REFERENCE 128.4mm 30mm 44mm 38.1mm 101.6mm 63.5mm 54.5mm 44mm 144mm THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT.
- Page 12 B-Tech AV Mounts is a division of B-Tech International Design and Manufacturing Ltd. B-Tech AV Mounts and the B-Tech logo are registered trade marks. All other brands and product names are trademarks of their respective owners. Photographs are for illustrative purposes only. E&OE. AMA-BT5963-V1.1-0821-110 MADE IN VIETNAM For More Information Visit www.btechavmounts.com...
