UM800xLX
9'
O C
Starlux Collar Tilt
Assembly and Operation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Starlux Collar Tilt and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Treasure Garden Starlux Collar Tilt

Summary of Contents for Treasure Garden Starlux Collar Tilt

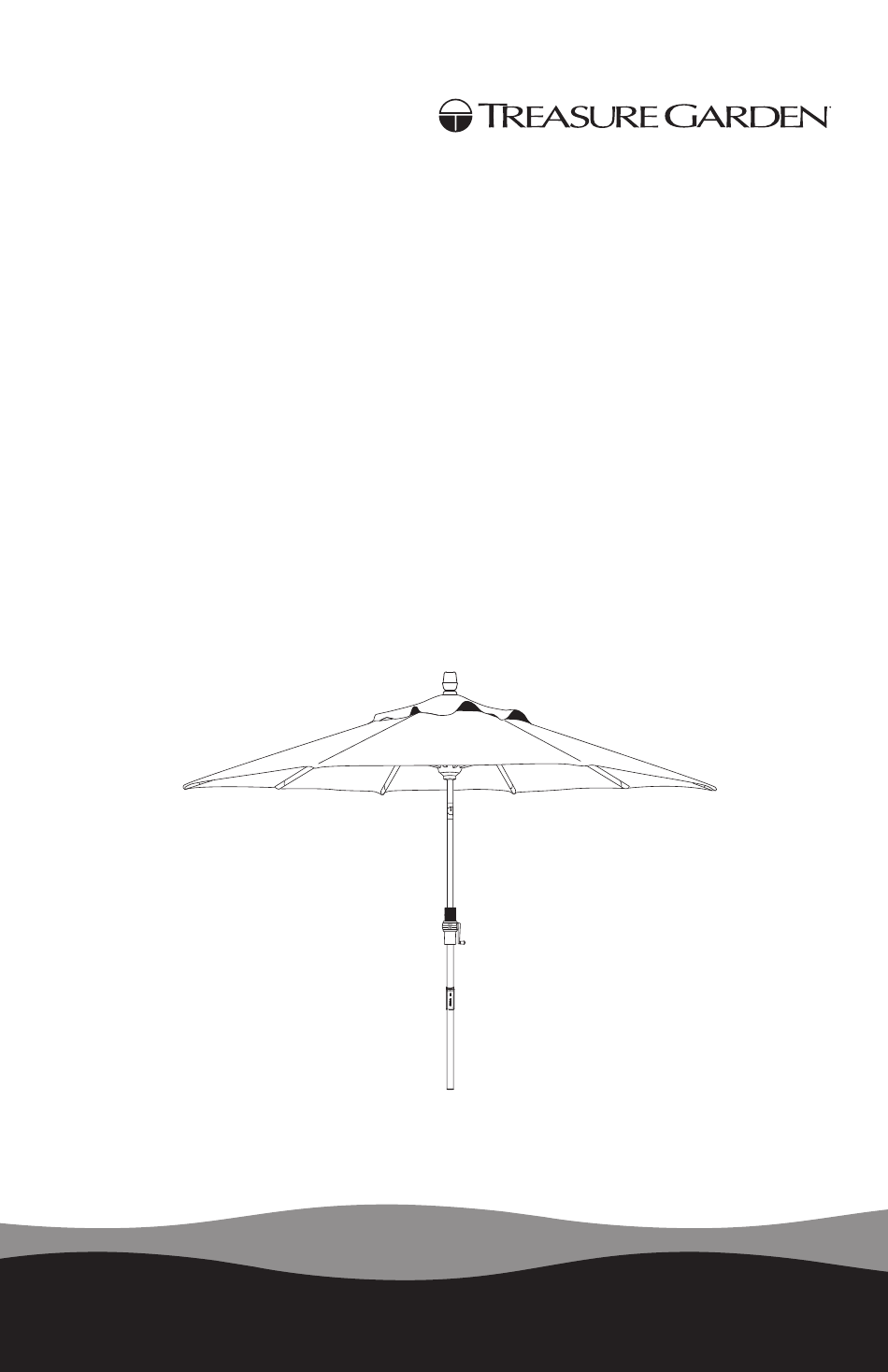

  • Page 1 UM800xLX 9’ Starlux Collar Tilt Assembly and Operation Guide...
  • Page 2 Thank you for purchasing Treasure Garden’s Starlux Collar Tilt Umbrella. Please remove all contents from the package, inspect and review checklist. STARLUX COLLAR TILT CHECKLIST - Finial B - Canopy/Mainframe C - Bottom Pole D - Rechargeable Battery Pack E - Power Cord* F - BW Base Stopper *Note: Use only the Power Cord supplied.
  • Page 3 (Fig. 3) IMPORTANT: If you are using a BW Classic Base with your Starlux Collar Tilt, you must attach Base Stopper to your BW Classic Base. If you are not using a BW Classic Base OR if you have a BW30 Add-on Weight attached to your BW Classic Base, please proceed to Step 3.
  • Page 4 S T E P 3 Rechargeable Battery Pack Turn umbrella in upright position. Insert bottom pole into free standing base (Fig. 6) or through table top. IMPORTANT: If using table application, please take note of measurements below to ensure table can accommodate battery pack (Fig. 7). TABLE UMBRELLA HOLE...
  • Page 5 S T E P 4 Operating Umbrella Crank handle clockwise to open umbrella to its fully open position (Fig. 11). (Fig. 11) To tilt, simply twist the collar in clockwise direction (Fig. 12). (Fig. 12)
  • Page 6 To turn umbrella lights on or off, press on/off switch located on collar housing (Fig. 13). WARNING: We do not recommend use of lights while raining. When lights are not in use, remove battery pack from On/Off Switch umbrella. Store battery pack, along with power supply in dry, cool area to keep from damaging.
  • Page 7 S A F E T Y P R E C A U T I O N S : • Close and store the umbrella in windy conditions or when a storm approaches. Never allow the umbrella to flap in the wind; this could damage the canopy. •...
  • Page 8 Additionally, acts of nature (including but not shipped directly to the dealer for limited to wind, hurricanes, tornadoes, and professional installation/repair. storms) are not covered by this warranty. www.treasuregarden.com ©2019 Treasure Garden, Inc. - All Rights Reserved. 9/19...
