MuxLab 500417 Quick Installation Manual

Specifications

Environment HDMI 1.3a
DVD, plasma, projectors, monitors, TV, PC, laptops, servers supporting
Devices
HDMI.
Transmission Transparent to the user
Bandwidth 225 MHz
Signals HDMI 1.3a protocol
Connectors One (1) HDMI receptacle.
Two (2) RJ45S for Cat 5e/6 unshielded or shielded twisted pair.
One (1) 3.5 mm stereo jack for IR Sensor
Note: HDMI cables not included.
Maximum Distance 480i/p:
720p, 1080i:
Based on a maximum
1080p:
length of 6.6 ft (2 m) of
1080p Deep Color:
HDMI cable per end.
Note: When installed in an electrically noisy environment, an STP cable
must be used. Also, cross-connection reduces the effective distance
depending on the grade of twisted cable used.
RJ45 Pin Configuration RJ45 A (HDMI A)
Pin 1 (R) Pin 2 (T)
Reverse Polarity
Pin 3 (R) Pin 6 (T)
Sensitive.
Pin 4 (R) Pin 5 (T)
Use EIA/TIA 568A or
Pin 7 (R) Pin 8 (T)
586B straight-through
wiring.
RJ45 B (HDMI B)
Pin 1 (R) Pin 2 (T)
Pin 3 (R) Pin 6 (T)
Pin 4 (R) Pin 5 (T)
Pin 7 (R) Pin 8 (T)
Cable Two (2) Cat 5e/6 or better twisted pair cables required
IR Remote for matrix Pushbutton, built-in IR sensor
and source control External IR sensor included
Wireless handheld remote ncluded
One (1) 110-240V/12VDC power supplies with interchangeable blades
Power Supply
Power Consumption 3.6 Watt
Temperature Operating: 0° to 40°C
Humidity: Up to 95% non-condensing
Enclosure Fire retardant plastic
Dimensions 4.50" x 3.00" x 1.25" (11.4 x 7.6 x 3.2 cm)
Weight 1.0 lb (0.45 kg)
Regulatory: FCC, CE, RoHS
Compliance
Warranty 2 years
Order Information 500417 HDMI IR/Receiver with Source Control
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: videoease@muxlab.com
© MuxLab Inc.
Cat 5e: 300 ft (91 m) Cat 6: 300 ft (91 m)
Cat 5e: 300 ft (91 m) Cat 6: 300 ft (91 m)
Cat 5e: 150 ft (46 m) Cat 6: 200 ft (61 m)
Cat 5e: 90 ft (27 m) Cat 6: 150 ft (46 m)
Storage: -20° to 85°C
Flammability: 94V0
Fax: (514) 905-0589
URL: www.muxlab.com
94-000660-A SE-000660-A

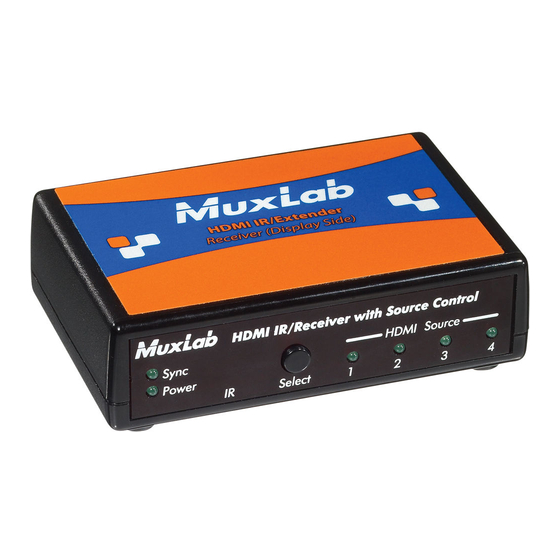

HDMI IR/Extender with Source Control
500417
Quick Installation Guide

Overview

The HDMI IR/Extender with Source Control (500417) allows HDMI equipment to be
connected up to 150 ft (46 m) @ 1080p Deep Color via two (2) Cat 6 unshielded twisted
pair cables in a point-to-point configuration. The HDMI IR/Extender with Source
Control is used with the HDMI 4X4 Matrix Switch (500415).

Applications

Applications include commercial and residential AV systems, classroom projector
systems, digital signage, boardroom systems, collaborative PC systems, and medical
information systems.

Installation

1. Identify the connectors on the Receiver as indicated on the product labels.
