MuxLab 500401 Quick Installation Manual

Specifications

Environment HDMI 1.3a
Devices DVD, plasma, projectors, monitors, TV, PC, laptops, servers
supporting HDMI. Not compatible with MuxLab p/n 500400.
Transmission Transparent to the user
Bandwidth 225MHz
Signals HDMI 1.3a protocol
Connectors HDMI receptacle.
Two (2) RJ45S for Cat5 unshielded or shielded twisted pair.
HDMI cables not included.
Max. Distance* 480i/p:
720p, 1080i:
1080p 8-bit:
*Based on a maximum
length of 6.6 ft (2m) of 1080p 12-bit Deep Color:
HDMI cable per end
When installed in an electrically noisy environment, STP cable
must be used. Also, cross-connection reduces the effective
distance depending on the grade of twisted cable used. Patch
panels are not recommended with 1080p Deep Color.
RJ45 A (Video)
RJ45 Pin Configuration
Reverse Polarity Sensitive Pin 1 (R)
Use EIA/TIA 568 A or B, Pin 3 (R)
Pin 4 (R)
straight-through wiring.
Pin 7 (R) Pin 8 (T)
RJ45 B (DDC)
Pin 1 (R)
Pin 3 (R)
Pin 4 (R)
Pin 7 (R)
Cable Two (2) Category 5e or better twisted pair cables required.
Power Supply One (1) 110-240V/12VDC power supply with interchangeable blades
Power Consumption 3W
Temperature Operating: 0º to 55º C. Storage:-20º to 85º C. Humidity: up to 95%
non-condensing.
Enclosure ABS fire retardant plastic
Dimensions 2.4" x 2.25" x 1.0" (6.1 x 5.5 x 2.5 cm)
Weight 1.6 LB/0.7 Kg
Mounting Velcro pads included.
Compliance Regulatory: FCC, CE, RoHS
Flammability: 94V0
Warranty 2 years
Order Information 500401 HDMI Extender Kit
Tel.: (514) 905-0588 Fax: (514) 905-0589
Toll Free (North America): (877) 689-5228
E-mail: videoease@muxlab.com URL:
94-000664-A
© MuxLab Inc. 2009-2013
Cat5e: 300 ft (90 m) Cat6: 300 ft (90 m)
Cat5e: 200 ft (60 m) Cat6: 250 ft (76 m)
Cat5e: 150 ft (45 m) Cat6: 200 ft (60 m)
not specified Cat6: 90 ft (27 m)
Pin 2 (T)
Pin 6 (T)
Pin 5 (T)
Pin 2 (T)
Pin 6 (T)
Pin 5 (T)
Pin 8 (T)
www.muxlab.com

Overview

The HDMI Extender Kit (500401) allows HDMI equipment to be connected up to
200 ft (60m) @ 1080i via two (2) Cat5e unshielded twisted pair cables in a point-to-
point configuration. The product also supports 1080p Deep Color up to 90 ft (27m)
via Cat6 cable. The kit comes with one (1) Transmitter and one (1) Receiver.
Applications include; commercial and residential AV systems, classroom projector
systems, digital signage, boardroom systems, collaborative PC systems, medical
information systems.

Pre-Installation Check

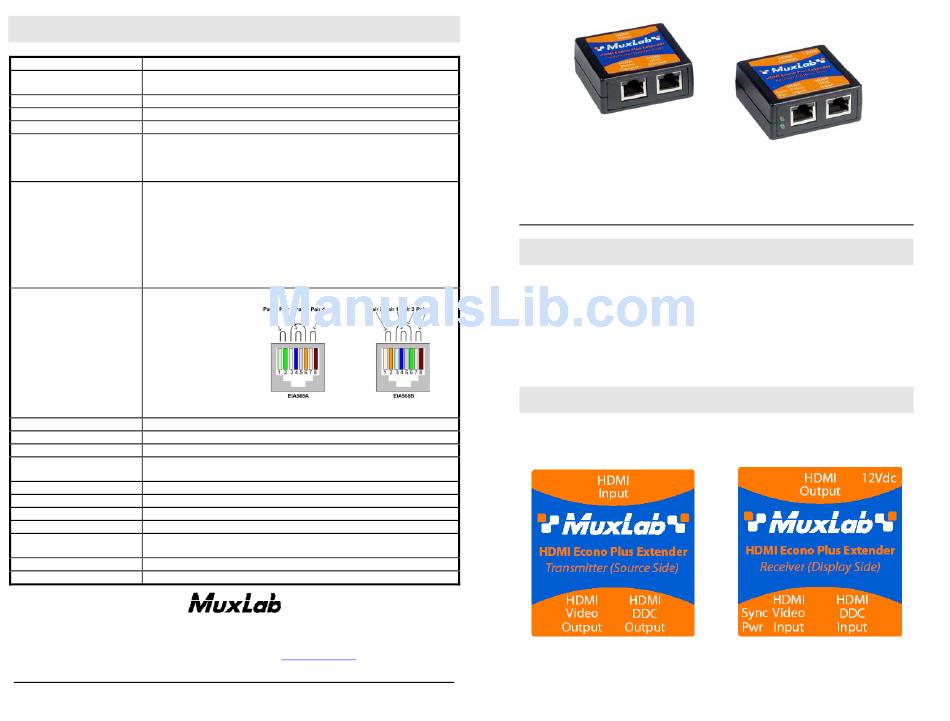

Identify the connectors on the Transmitter and Receiver as indicated on the product
labels.
SE-000664-A
HDMI Extender Kit (500401)
Quick Installation Guide
