*941901-00*
941901-00

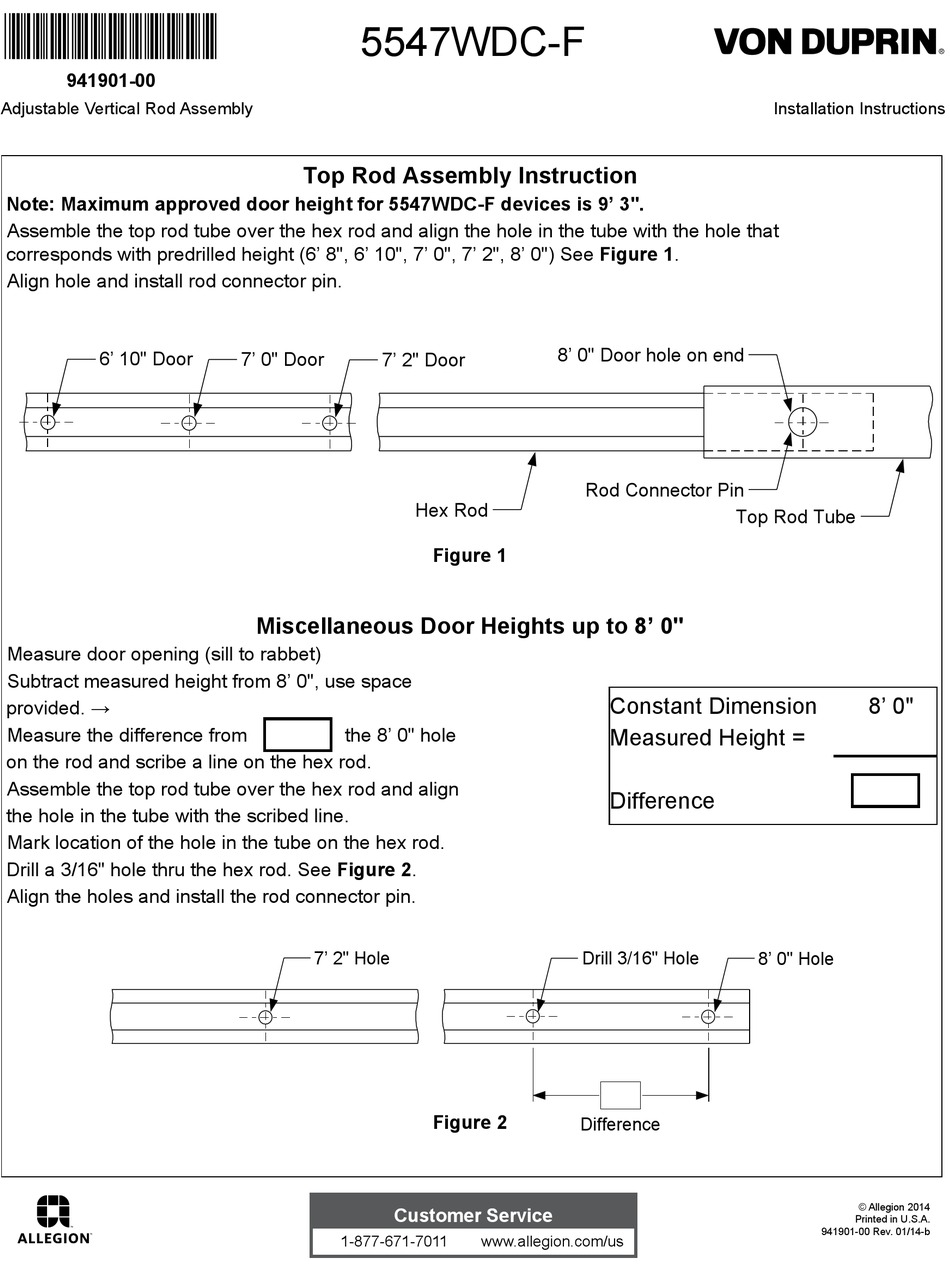

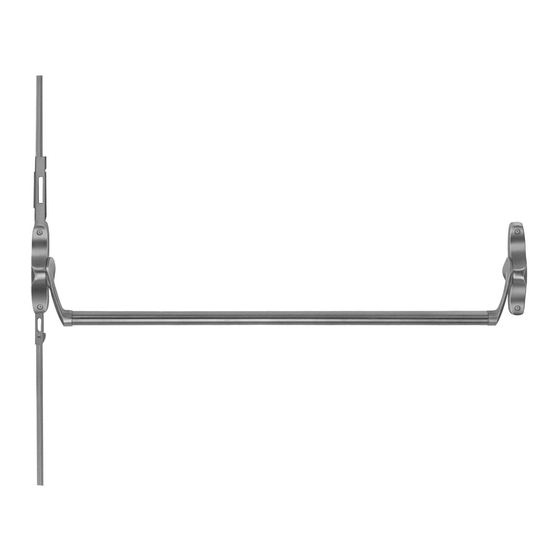

Adjustable Vertical Rod Assembly
Note: Maximum approved door height for 5547WDC-F devices is 9' 3".
1. Assemble the top rod tube over the hex rod and align the hole in the tube with the hole that
corresponds with predrilled height (6' 8", 6' 10", 7' 0", 7' 2", 8' 0") See Figure 1.
2. Align hole and install rod connector pin.
6' 10" Door
1. Measure door opening (sill to rabbet)
2. Subtract measured height from 8' 0", use space
provided. →
3. Measure the difference from
on the rod and scribe a line on the hex rod.
4. Assemble the top rod tube over the hex rod and align
the hole in the tube with the scribed line.
5. Mark location of the hole in the tube on the hex rod.
Drill a 3/16" hole thru the hex rod. See Figure 2.
6. Align the holes and install the rod connector pin.
5547WDC-F
Top Rod Assembly Instruction
7' 0" Door
7' 2" Door
Hex Rod
Miscellaneous Door Heights up to 8' 0"
the 8' 0" hole
7' 2" Hole
Customer Service
1-877-671-7011
8' 0" Door hole on end
Rod Connector Pin
Figure 1
Constant Dimension
Measured Height =
Difference
Drill 3/16" Hole
Figure 2
Difference
www.allegion.com/us
Installation Instructions
Top Rod Tube
8' 0"
8' 0" Hole
© Allegion 2014
Printed in U.S.A.
941901-00 Rev. 01/14-b
