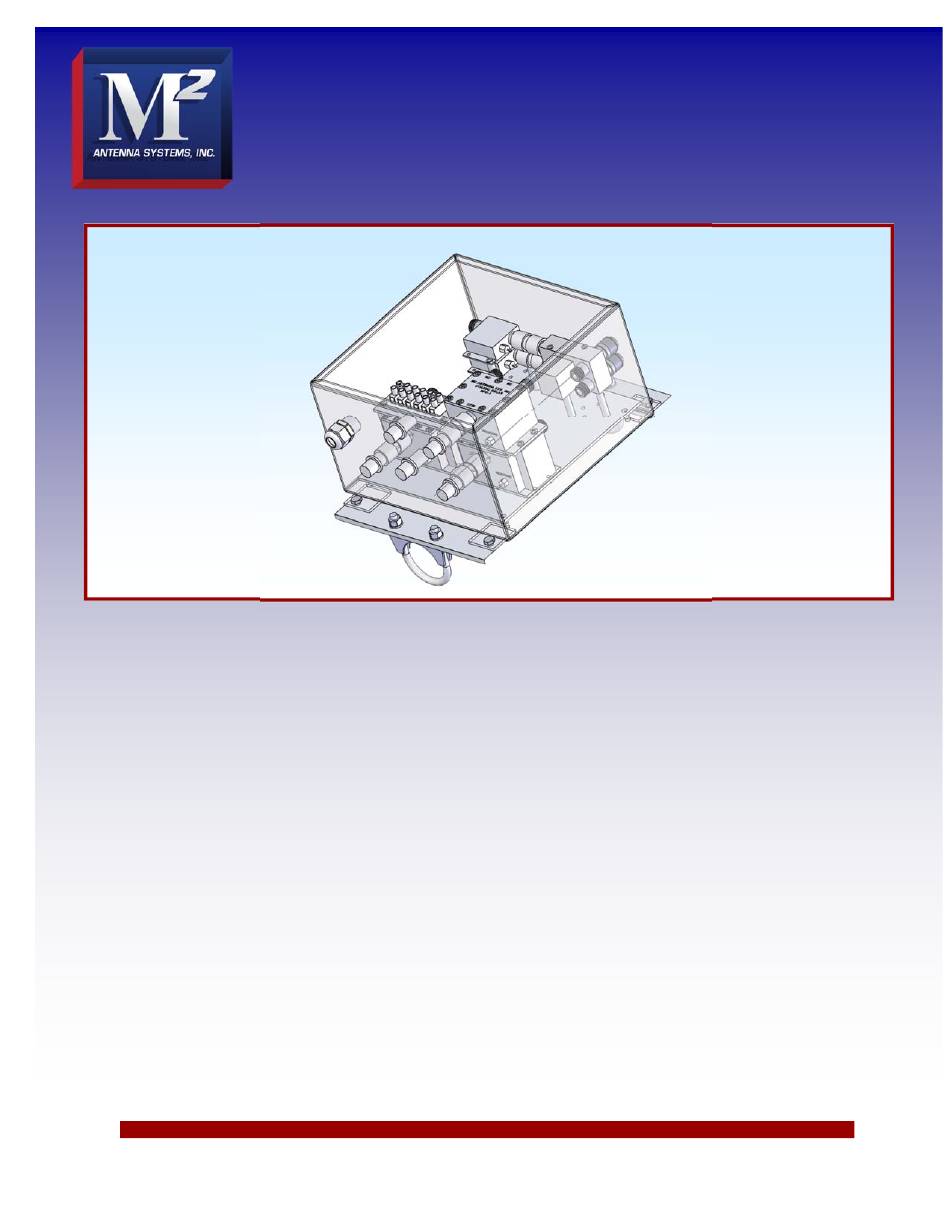

M2 Antenna Systems, Inc.
Model No: Relay/Preamp
Housing with MAP65
SPECIFICATIONS:
MODEL NUMBER ............................................. PREAMP/RELAY HOUSING
PREAMP (VHF). ............................................... 12 VDC @ 1 AMP
COAX SWITCH (M2 HPR-1) ............................. 24 VDC @ 1 AMP
ISOLATION COAX RELAY ............................... 12 VDC @ 1 AMP (>85 dB @ 144 MHz)
ENCLOSURE SIZE ........................................... W=8"/ H=6" / D=8"
COLOR ............................................................. GREY
CONTROLLER (RECOMMENDED) ................. M2 S2 SEQUENCER
CONTROL WIRE .............................................. 8 CON. # 22 GA. (MINIMUM*)
MOUNTING ....................................................... 2" U-BOLT / ADAPTABLE
*DEPENDENT ON CABLE LENGTH
M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722
Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com
11/21/19
©2019 M2 Antenna Systems Incoporated
Rev.1
Advertisement
Table of Contents
Related Manuals for M2 Antenna Systems Relay/Preamp Housing with MAP65
Summary of Contents for M2 Antenna Systems Relay/Preamp Housing with MAP65
- Page 1 CONTROL WIRE ..........8 CON. # 22 GA. (MINIMUM*) MOUNTING ............2” U-BOLT / ADAPTABLE *DEPENDENT ON CABLE LENGTH M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722 Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com 11/21/19 ©2019 M2 Antenna Systems Incoporated...

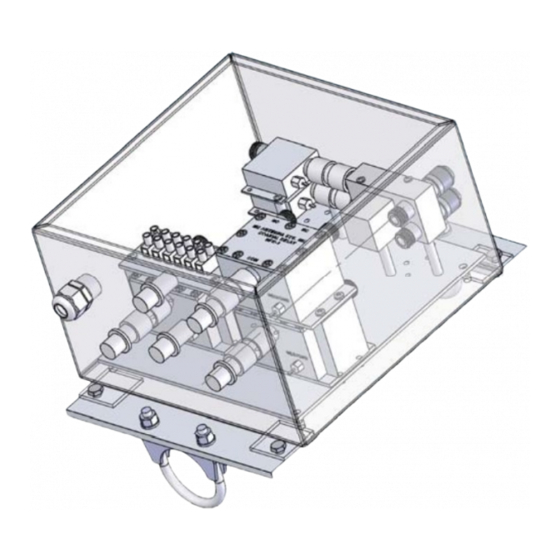

- Page 2 Componets & Input Panel Overview RECEIVER VERTICAL RECEIVER HORIZONTAL WATER RESISTANT ENCLOSURE ANTENNA IN VERTICAL RX-V ANT-V CONTROL LINE CONTROL LINE ANTENNA IN HORIZONTAL RX-H ANT-H AMP IN STANDARD 2” U-BOLT MOUNTING ADAPTER MOUNTING PLATE VERTICAL ANTENNA PREAMP HORIZONTAL ANTENNA PREAMP TERMINAL STRIP ISOLATION COAX RELAY VERTICAL ANTENNA...
- Page 3 Relay/Preamp Housing Terminal Assignments Terminal assignments are very important, so take your time when doing the wiring. Verify voltages on M2 EME S2 Sequencer before connecting to the housing. Damage can be caused to the preamp and power relays if connections are made incorrectly.
- Page 4 EME Relay/Preamp Housing (MAP65) Schematic Rev B. EME Relay/Preamp Housing (MAP65) Schematic Rev C. PREAMP COM (TOP) (TOP) N.O. (TOP) “N” FEMALE BARREL N.C. (TOP) CX800N (12VDC) +12VDC PREAMP (BTM) “N” FEMALE BARREL N.C. (BTM) N.O. (BTM) COM (BTM) +12VDC +12VDC HORIZONTAL RELAY VERTICAL RELAY...
- Page 5 EME Relay/Preamp Housing (MAP65) Parts List DESCRIPTION..........QTY RELAY / PREAMP HOUSING ......1 MOUNTING PLATE, .250 X 1.5” X 9” ....2 USER MANUAL ..........1 IN HARDWARE BAGS: U-BOLT & CRADLE, 2” ........2 NUT, 5/16-18 HEX ..........4 WASHER, 5/16 ..........
- Page 6 M2 is responsible for charges (in the United States) to return the repaired / replacement product only where warranty service is involved. M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722 (559) 432-8873 Fax (559) 432-3059 Web: www.m2inc.com...
