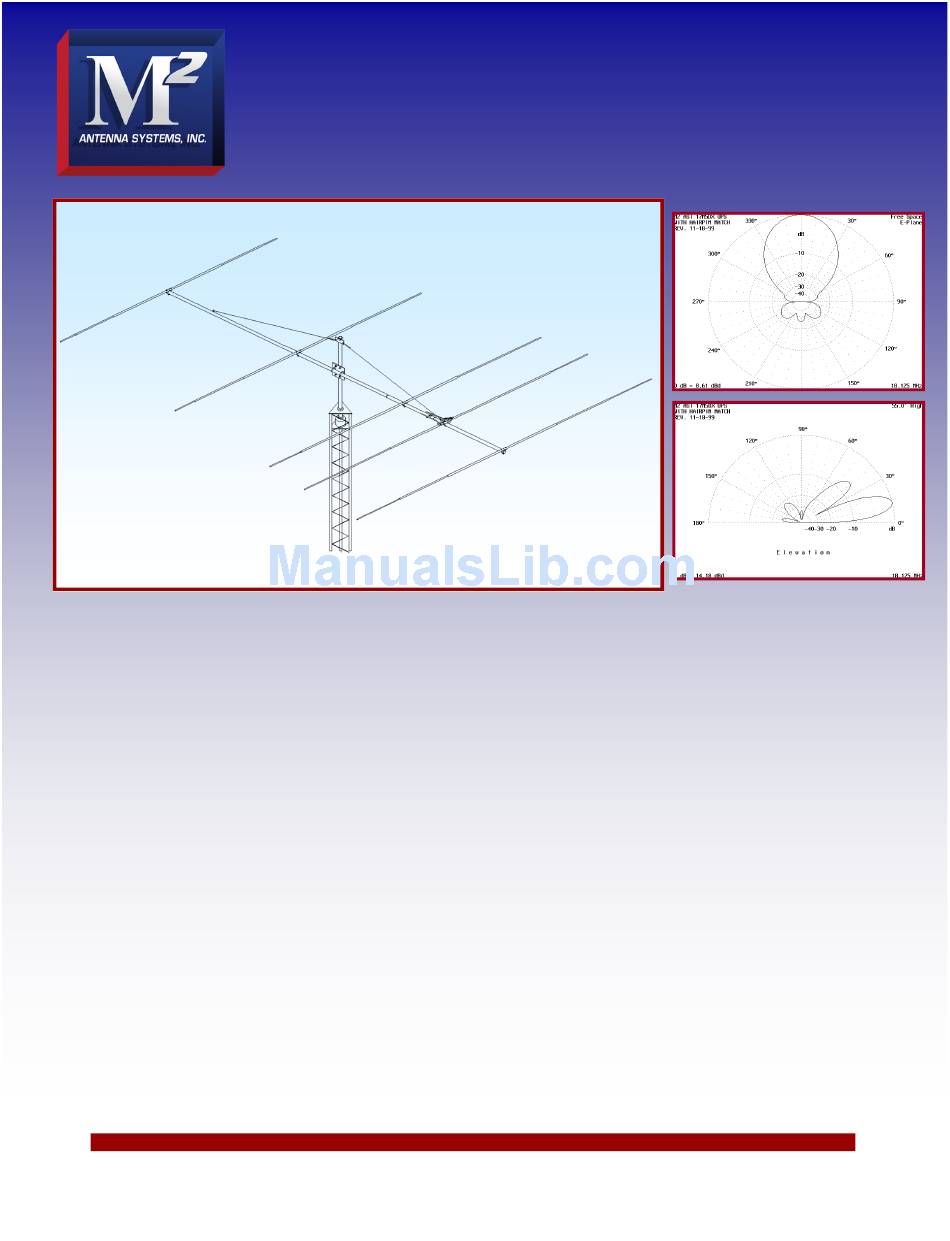

M2 Antenna Systems 17M5DX Assembly Manual

SPECIFICATIONS:

Model ........................................ 17M5DX
Frequency Range ...................... 18.080 To 18.18 MHz
*Gain, (FS) / Over gnd ............... 10.79dBi / 16.3dBi @55'
Front to back .............................. 24 dB Typical
Beamwidth ............................... E=50° / H=64°
Feed type ................................... Hair pin match
Feed Impedance........................ 50 Ohms Unbalanced
Maximum VSWR ....................... 1.2:1
Input Connector ......................... SO-239, Others avl.

FEATURES:

The 17M5DX is a great performer for its size. It was designed for low wind area but rugged and lightweight and it
will save you a bundle on shipping. IT'S UPSABLE! like all our "DX" series. The computer optimized design allows full
band coverage with good gain and front to back. Performance is excellent on both the CW and phone! Mechanically,
CNC machined aluminum (6061-T6) ring clamps ground the elements to the boom and make assembly a snap. The
central boom sections are 2-1/2" O.D. x .058" wall 6063-T832 aluminum tubing with 2" O.D. tips. An overhead guy
system is supplied. A hairpin type match couples the 3 kW 1: balun to the feed line.
The antenna is completely DC grounded. The 17M5DX is also great for stacking, providing 3 dB increased gain
not to mention the lower angle of radiation. The 17M5DX is a perfect stacking partner for our other "DX series Yagis like
the 20M4DX, 12M4DX, and 10M4DX. Put the 17M5DX to the test in any conditions and see what good design can do for
you!
M2 Antenna Systems, Inc.
Model No: 17M5DX
*Subtract 2.14 from dBi for dBd / FS = Free Space
M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722
Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com
©2014 M2 Antenna Systems Incorporated
Power Handling ......................... 3 kW, Higher avl.
Boom Length / Dia ..................... 36' / 2-1/2" To 2"
Element Length / Dia. ................ 27' 11" / 1" To 1/2"
Turning Radius: ......................... 24' 5"
Stacking Distance ...................... 43' To 54'
Mast Size ................................... 2" to 3 " Nom.
Wind area / Survival .................. 7.25 Sq. Ft. / 85 MPH
Weight / Ship Wt. ....................... 38 Lbs. / 61 Lbs.
08/9/12
Rev.02
