Item #1001010070
Model #BEF-48TSC
USE AND CARE GUIDE

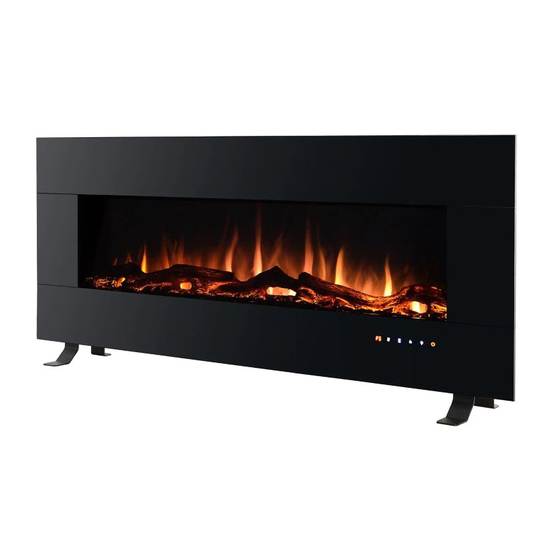

48 IN. CURVED PANEL ELECTRIC FIREPLACE
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday and 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this electric fireplace. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your
home improvement needs. Thank you for choosing Hampton Bay
Advertisement
Related Manuals for HAMPTON BAY BEF-48TSC
Summary of Contents for HAMPTON BAY BEF-48TSC
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this electric fireplace. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your...
-
Page 2: Table Of Contents
Table of Contents Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Installation . - Page 3 Safety Information (continued) 13. NEVER modify this heater. Doing so could result in personal CAUTION: A heater has hot and arcing or sparking parts injury or property damage. Modification of this fireplace inside. DO NOT use it in areas where gasoline, paint, or completely voids all warranties.
-
Page 4: Warranty
Warranty ONE-YEAR WARRANTY This product carries a one (1) year warranty against defects in workmanship and materials. The manufacturer agrees to replace a defective product, within the stated warranty period, when returned to the place of purchase with proof of purchase. This product is not guaranteed against wear or breakage due to misuse and/or abuse. -
Page 5: Pre-Installation
Pre-Installation CAUTION: This product includes a GLASS panel! Always use extreme caution when handling glass. Failure to do so could result in personal injury or property damage. TOOLS REQUIRED Phillips screwdriver Stud finder Level Electric drill Tape measure 1/4 in. wood drill bit HARDWARE INCLUDED NOTE: Remove all parts and hardware from the carton and place them on a clean, soft, dry surface. - Page 6 Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Fireplace Wall Bracket Log Insert, Pebble Stones and Crushed Glass Metal Base Plastic Tray Remote Control Fixed Part...
-
Page 7: Installation
Installation – Wall-Mount Find a safe location Preparing the installation location □ Minimum clearance on each side: 19.7 in. (50 cm). □ A. Locate the wall studs using an electronic stud-finder. Mark the hole locations with a pencil. The holes should be □... - Page 8 Installation – Wall-Mount (continued) Hanging the fireplace □ Due to the many different materials used on different walls, it is highly recommended that you consult your local builder before you install this appliance on the wall. □ A. Select a location that is not prone to moisture and is located at least 36 in.
- Page 9 Installation – Metal Base Preparing the fireplace Attaching the metal base □ Take out the fireplace and parts and place the fireplace on □ Attach the metal bases (D) to the bottom of the fireplace a flat and soft surface. using the ST4x12 metal screws.
- Page 10 Installation – Crystal / Pebble Ember □ Glass front must be removed and the appliance must be mounted in its final location before the crystal / pebble Remove the glass front embers are installed. □ A. Remove the screws on the sides of the fireplace, remove the glass front, and take out the log set.
-
Page 11: Operation
Operation WARNING: Read and understand this entire owner’s WARNING: While this appliance is operating do not manual, including all safety information, before plugging in remove the glass panel. This will cause the remote control or using this product. Failure to do so could result in electric and touch panel to disfunction. - Page 12 Operation (continued) OPERATING TOUCH DISPLAY PANEL AND REMOTE CONTROL Button Function, Action & Indication Turns the appliance ON/OFF. Power Controls the Timer. 9 Settings: (0.5h, 1h, 2h, 3h, 4h, 5h, 6h, 7h, 8h) Press button until you reach the desired setting. Timer FLAME button: Makes flame effect dimmer and brighter.
- Page 13 Operation (continued) TEMPERATURE LIMITING CONTROL WARNING: Do not move or remove the glass panel, when the appliance is plugged in and operating. This will cause This heater is equipped with a Temperature Limiting Control. Should the remote control and touch panel to no longer function. the heater reach an unsafe temperature, the heater will automatically NOTE: When the heater is first turned on, a slight odor turn OFF.
-
Page 14: Maintenance
Maintenance ELECTRICAL AND MOVING PARTS: □ The fan motors are lubricated at the factory and will not require lubrication. □ Electrical components are integrated in the fireplace and are not serviceable by the consumer. WARNING: Risk of electric shock! DO NOT OPEN any panels other than the bulb replacement plate! No user-serviceable parts inside! WARNING: ALWAYS turn the heater OFF and unplug the power cord from the outlet before cleaning, performing maintenance, or moving this fireplace. - Page 15 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. - 7 p.m., EST, Monday - Friday and 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
