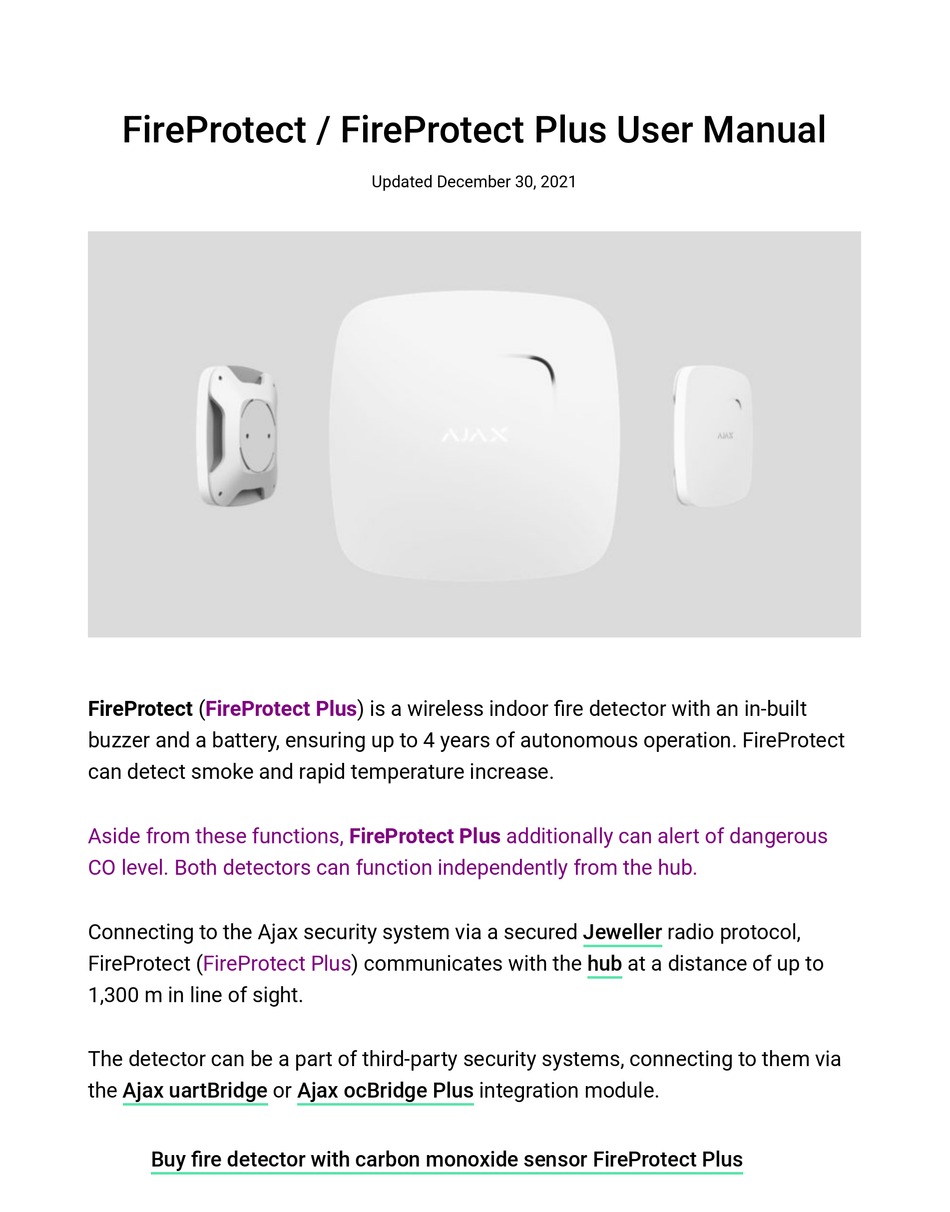

FireProtect / FireProtect Plus User Manual
FireProtect
(FireProtect
buzzer and a battery, ensuring up to 4 years of autonomous operation. FireProtect
can detect smoke and rapid temperature increase.
Aside from these functions, FireProtect Plus additionally can alert of dangerous
CO level. Both detectors can function independently from the hub.
Connecting to the Ajax security system via a secured
FireProtect
(FireProtect
1,300 m in line of sight.
The detector can be a part of third-party security systems, connecting to them via
the
Ajax uartBridge
Buy �re detector with carbon monoxide sensor FireProtect Plus
Updated December 30, 2021
Plus) is a wireless indoor �re detector with an in-built
Plus) communicates with the
or
Ajax ocBridge Plus
Jeweller
hub
at a distance of up to
integration module.
radio protocol,

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FireProtect and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AJAX FireProtect

Summary of Contents for AJAX FireProtect

  • Page 1 (FireProtect Plus) is a wireless indoor �re detector with an in-built buzzer and a battery, ensuring up to 4 years of autonomous operation. FireProtect can detect smoke and rapid temperature increase. Aside from these functions, FireProtect Plus additionally can alert of dangerous CO level.

  • Page 2: Functional Elements

    The system noti�es the user of all events through push noti�cations, SMS, and calls (if activated). The Ajax security system can be connected to a central monitoring station of a security company. Buy �re detector FireProtect Functional Elements 1. Siren hole 2.
  • Page 3 60°С), the detector registers temperature increase, which triggers a �re alarm. The life span of the FireProtect Plus detector lasts up to 7 years (up to 10 years for the FireProtect ). In the event of a detector failure, you will receive a corresponding noti�cation —...
  • Page 4 2. Through the Ajax app. In case of �re alarm, you will see a pop-up message in Ajax app suggesting to turn off the built-in sirens. 3. Using the KeyPad KeyPad Plus (if Interconnected Fire Detectors Alarm feature is enabled). To turn off the built-in sirens in case of �re alarm, press the “*”...
  • Page 5 Fire Alarm command for this button in the KeyPad/KeyPad Plus settings. If smoke and/or temperature levels do not restore to normal values, in 10 minutes, the FireProtect/FireProtect Plus turns on the siren again. Connecting the Detector to the Ajax Security System...
  • Page 6 3. Tap Add — the countdown will start. 4. Switch on the device. To make sure that the detector is on, press the on/off button — the logo will light up red for a second.
  • Page 7 The smoke detector always operates in the active mode. When connecting FireProtect to third party security systems, it is appropriate to place it in a permanently active protection zone. States 1.
  • Page 8 Shows the status of the device: active, completely disabled by the user, or only noti�cations about Temporary Deactivation triggering of the device tamper button are disabled Firmware Detector �rmware version Device ID Device identi�er Settings 1. Devices 2. FireProtect | FireProtect Plus 3. Settings...
  • Page 9 Switches the device to the signal strength test Jeweller Signal Strength Test mode Smoke Sensor Self Test Starts FireProtect selftest Allows the user to disconnect the device without removing it from the system. Two options are available: • Entirely — the device will not execute system...
  • Page 10 5. Go to the Fire detectors settings menu and activate the Interconnected Fire Detectors Alarms option Interconnected alarms are supported by FireProtect and FireProtect Plus detectors with �rmware versions 3.42 and later. Please note that when you turn on the interconnected alarms, you cannot set the hub–detector ping interval (Jeweller settings) of more than 48...
  • Page 11 Ajax app (if appropriate noti�cations are enabled). At the object, Ajax sirens are activated (if the corresponding settings are enabled). 4. An alarm con�rmation event is sent to the monitoring station and security system users, and the system starts the interconnected alarm for �re detectors if: The interconnected alarm delay time has passed, and the triggered detector is •...
  • Page 12 temperature threshold after a smoke alarm). 00:00 00:13 • During the interconnected alarm delay, another �re detector in the system raised an alarm.
  • Page 13 By pressing the KeyPad/KeyPad Plus function button (in the interconnected �re • alarm muting mode). By pressing the Button in the interconnected �re alarm muting mode. • By eliminating the cause of the alarm (�re detectors at the facility no longer •...
  • Page 14 3. If after 30 seconds the detector still detects a threat, an alarm is sent to the hub. Setting the Residential �re alarm system Residential �re alarm system is an Ajax system feature that de�nes user and device rights to mute the interconnected alarms of �re detectors.

  • Page 15: Performance Testing

    Three short sound signals per 90 sec — both batteries low Performance testing The Ajax security system allows conducting tests for checking the functionality of connected devices. The tests do not start straight away but within a period of 36 seconds when using the standard settings.

  • Page 16: Installation

    (the logo center) for a few seconds – the detector will test the smoke chamber with electronic simulation of smoke generation and then will switch on the siren for 6 seconds. You will receive the noti�cation in the Ajax app regarding the test result and detector status. Installation...

  • Page 17: Installation Procedure

    How to install FireProtect �re detector correctly Where and how to install FireProtect Plus Installation procedure Before installing the detector, make sure that you have selected the optimal location that follows the guidelines of this manual!
  • Page 18 If someone detaches the detector from the surface or takes it off the attachment panel, the security system noti�es you. Do not install the detector: 1. outside the premises (outdoors); 2. nearby any metal objects or mirrors causing attenuation or screening of the signal;...
  • Page 19 Do not use any substances containing alcohol, acetone, gasoline, and other active solvents to clean the detector. To a certain level, the detector ignores the dust in the smoke chamber. When the chamber becomes too dusty, the detector noti�es the user of the need to clean it via the app (and beeps every minute and a half).
  • Page 20 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz Depends on the region of sale. hubs Operates independently or with all Ajax radio signal range extenders ocBridge Compatibility Plus uartBridge Maximum RF output power Up to 20 mW...

  • Page 21: Complete Set

    3. Batteries CR2 (pre-installed) — 2 pcs 4. Battery CR2032 (pre-installed) — 1 pcs 5. Installation kit 6. Quick Start Guide Warranty Warranty for the “AJAX SYSTEMS MANUFACTURING” LIMITED LIABILITY COMPANY products is valid for 2 years after the purchase and does not apply to...
