AJAX FireProtect User Manual

Wireless indoor smoke detector
Hide thumbs Also See for FireProtect:
Table of Contents

Advertisement

Quick Links

Download this manual

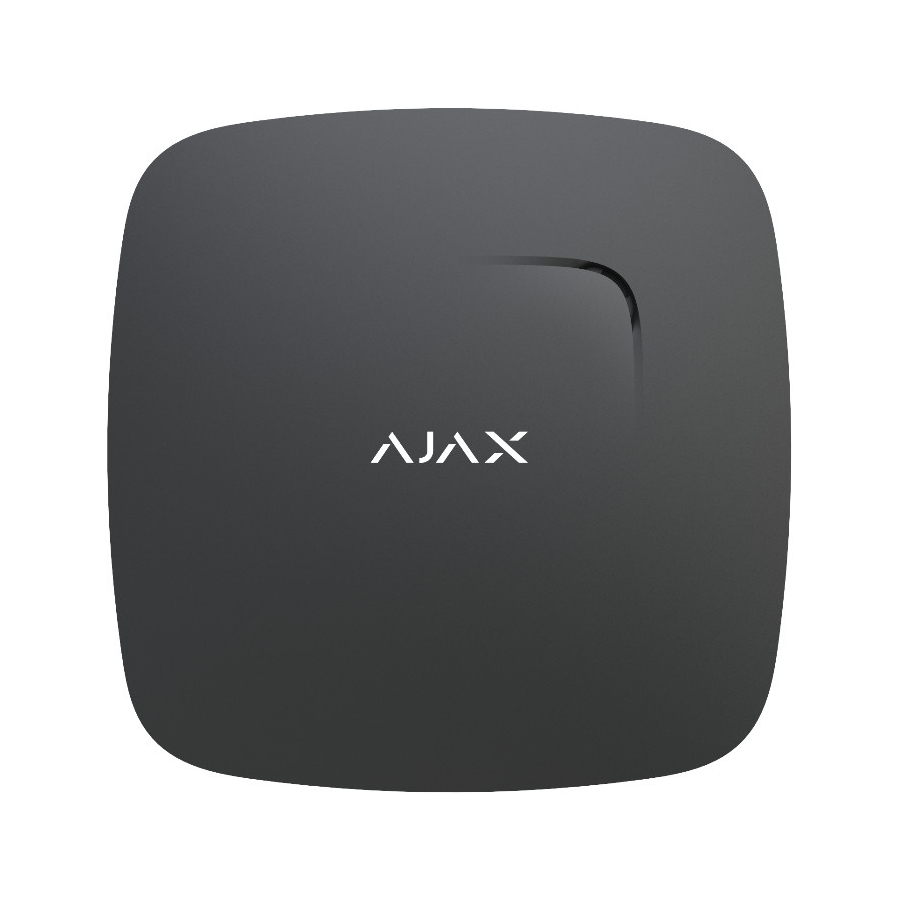

FireProtect is a wireless indoor smoke detector with an in-built buzzer and a
battery, ensuring up to 4 years of autonomous operation. FireProtect can detect
smoke and rapid temperature increase.
Connecting to the Ajax security system via a secured
FireProtect communicates with the
sight.
The detector can be a part of third-party security systems, connecting to them
via the
uartBridge
The detector is set up via the
The system noti es the user of all events through push noti cations, SMS, and
calls (if activated).
FireProtect Plus
carbon monoxide (CO) sensor.
FireProtect User Manual
Updated March 22, 2022
hub
or
ocBridge Plus
integration module.
Ajax apps
model also available for purchase. This model has an additional built-in
Jeweller
at a distance of up to 1,300 m in line of
for iOS, Android, macOS, and Windows.
radio protocol,

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FireProtect and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AJAX FireProtect

Summary of Contents for AJAX FireProtect

  • Page 1 FireProtect User Manual Updated March 22, 2022 FireProtect is a wireless indoor smoke detector with an in-built buzzer and a battery, ensuring up to 4 years of autonomous operation. FireProtect can detect smoke and rapid temperature increase. Connecting to the Ajax security system via a secured...

  • Page 2: Functional Elements

    Buy re detector FireProtect Functional Elements 1. Siren hole 2. Light indicator (acts as the sensor and Test button) 3. Smoke chamber hole with the temperature detector behind the net 4. SmartBracket attachment panel 5. Power button 6. Tamper button 7.
  • Page 3 The life span of the FireProtect detector lasts up to 10 years. In the event of a detector failure, you will receive a corresponding noti cation — it will need to be replaced or submitted for comprehensive diagnostics In case of alarm, the detector activates the built-in buzzer (the siren sound can be heard from afar) and blinks with the light indicator.
  • Page 4 Fire Alarm command for this button in the KeyPad/KeyPad Plus settings. If smoke and/or temperature levels do not restore to normal values, in 10 minutes, the FireProtect turns on the siren again. Connecting the Detector to the Ajax Security System Connecting to the hub...
  • Page 5 Only users with administrator rights can add the device to the hub Pairing the detector with hub: 1. Select Add Device in the Ajax app. 2. Name the device, scan, or type the QR Code (located on the detector body and packaging), and select the location room.
  • Page 6 The smoke detector always operates in the active mode. When connecting FireProtect to third party security systems, it is appropriate to place it in a permanently active protection zone.
  • Page 7 States 1. Devices 2. FireProtect Parameter State Temperature of the device. Measures on the Temperature device processor and changes gradually Signal strength between the hub and the Jeweller Signal Strength detector Connection status between the hub and the Connection device Battery level of the device.
  • Page 8 Switches the device to the signal strength test Jeweller Signal Strength Test mode Smoke Sensor Self Test Starts FireProtect self test Temporary Deactivation Allows the user to disconnect the device without removing it from the system. Two options are available: Entirely —...
  • Page 9 5. Go to the Fire detectors settings menu and activate the Interconnected Fire Detectors Alarms option Interconnected alarms are supported by FireProtect detectors with rmware versions 3.42 and later. Please note that when you turn on the interconnected alarms, you cannot set the hub–detector ping interval (Jeweller settings) of more than 48 seconds.
  • Page 10 The function works as follows: 1. One of the FireProtect detectors detects an alarm. 2. Delay of Interconnected Alarms starts. 3. The built-in siren of the re detector informs the alarm. Users receive noti cations in the Ajax app (if appropriate noti cations are enabled).
  • Page 11 00:00 00:14 During the delay of the interconnected alarms, the triggered detector reports a different type of alarm (for example, the detector report the exceeding of the temperature threshold after a smoke alarm). 00:00 00:13 During the interconnected alarm delay, another re detector in the system raised an alarm.
  • Page 12 To give more time to eliminate the cause of false triggering of the detector, the user can delay the propagation of the interconnected alarm for another 10 minutes: Through Ajax apps. By pressing the KeyPad/KeyPad Plus function button (in the interconnected re alarm muting mode).
  • Page 13 Setting the Residential re alarm system Residential re alarm system is an Ajax system feature that de nes user and device rights to mute the interconnected alarms of re detectors. If the feature is enabled, users can silence re alarms of triggered detectors only in the groups to which they have access.

  • Page 14: Performance Testing

    Three short sound signals per 90 sec — both batteries low Performance testing The Ajax security system allows conducting tests for checking the functionality of connected devices. The tests do not start straight away but within a period of 36 seconds when using the standard settings.

  • Page 15: Installation

    6 seconds. You will receive the noti cation in the Ajax app regarding the test result and detector status. Installation...

  • Page 16: Installation Procedure

    If there are any beams at the ceiling, protruding by 30 or more centimetres from the ceiling level, install the detector between every two beams. How to install FireProtect re detector correctly Installation procedure Before installing the detector, make sure that you have selected the optimal location that follows the guidelines of this manual! 1.
  • Page 17 If the LED doesn’t blink after xing in SmartBracket, check the status of the tamper in the Ajax app and then the xing tightness of the panel. If someone detaches the detector from the surface or takes it off the attachment panel, the security system noti es you.

  • Page 18: Maintenance And Battery Replacement

    — three short signals. Keep new and used batteries away from children. Do not ingest battery, Chemical Burn Hazard. How long Ajax devices operate on batteries, and what affects this Battery Replacement Tech Specs Smoke-sensitive element...
  • Page 19 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHzDepends on the region of sale. hubs Operates independently or with all Ajax radio signal range extenders Compatibility ocBridge Plus uartBridge Maximum RF output power Up to 20 mW...

  • Page 20: Complete Set

    5. Installation kit. 6. Quick Start Guide. Warranty Warranty for the “AJAX SYSTEMS MANUFACTURING” LIMITED LIABILITY COMPANY products is valid for 2 years after the purchase and does not apply to the pre-installed battery. If the device does not work correctly, you should rst contact the support service —...
