Technical Information
Electrohydraulic Actuators PVE-EX
Installation

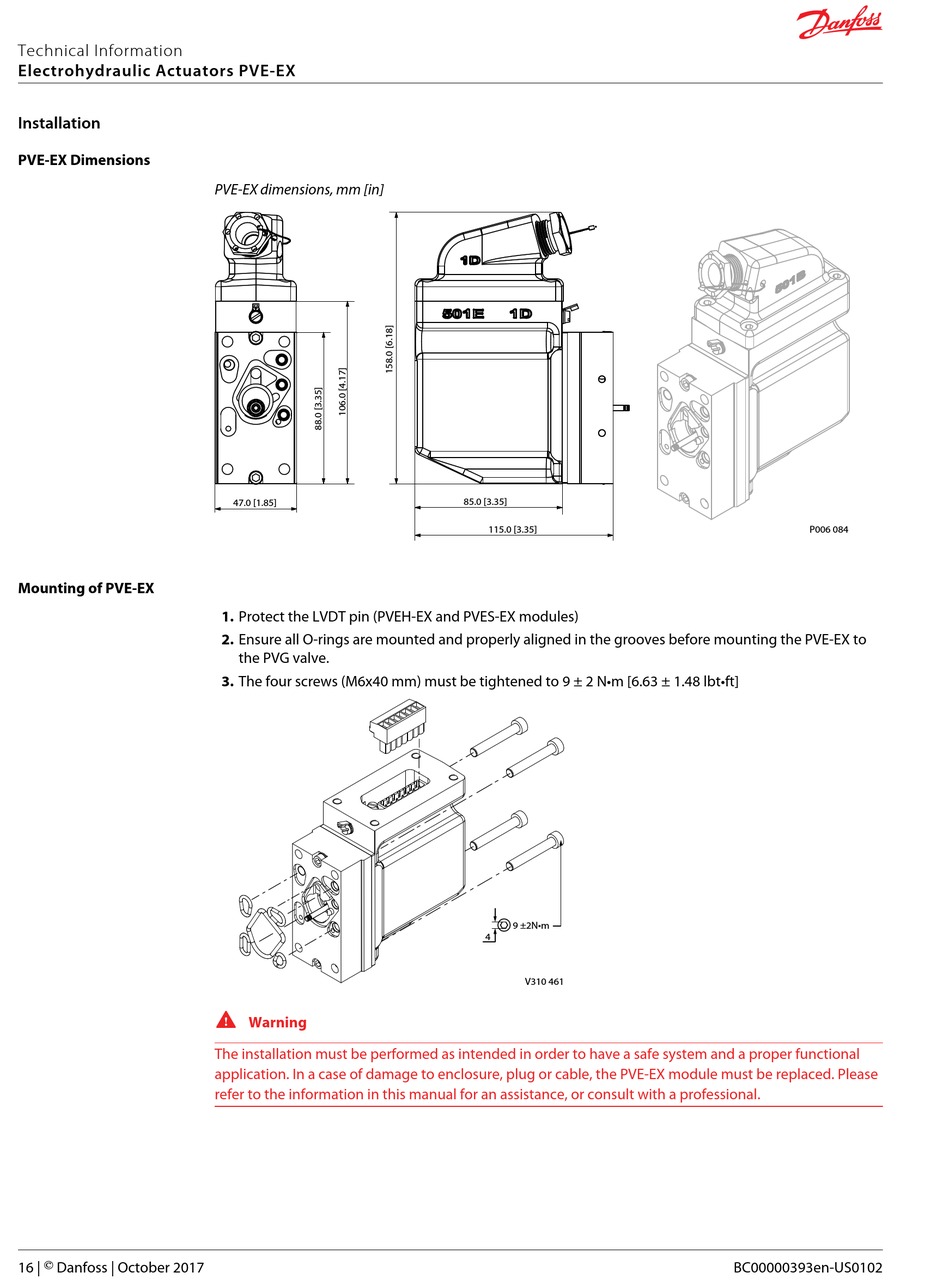

PVE-EX Dimensions
Mounting of PVE-EX
16 |
©
Danfoss | October 2017
PVE-EX dimensions, mm [in]
47.0 [1.85]
1. Protect the LVDT pin (PVEH-EX and PVES-EX modules)
2. Ensure all O-rings are mounted and properly aligned in the grooves before mounting the PVE-EX to
the PVG valve.
3. The four screws (M6x40 mm) must be tightened to 9 ± 2 N•m [6.63 ± 1.48 lbt•ft]
W
Warning
The installation must be performed as intended in order to have a safe system and a proper functional
application. In a case of damage to enclosure, plug or cable, the PVE-EX module must be replaced. Please
refer to the information in this manual for an assistance, or consult with a professional.
85.0 [3.35]
115.0 [3.35]
9 ±2N•m
4
V310 461
P006 084
BC00000393en-US0102
