Technical Information
Electrohydraulic Actuators PVE-EX
PVE-EX control

PVE-EX: PVE hysteresis

© Danfoss | October 2017

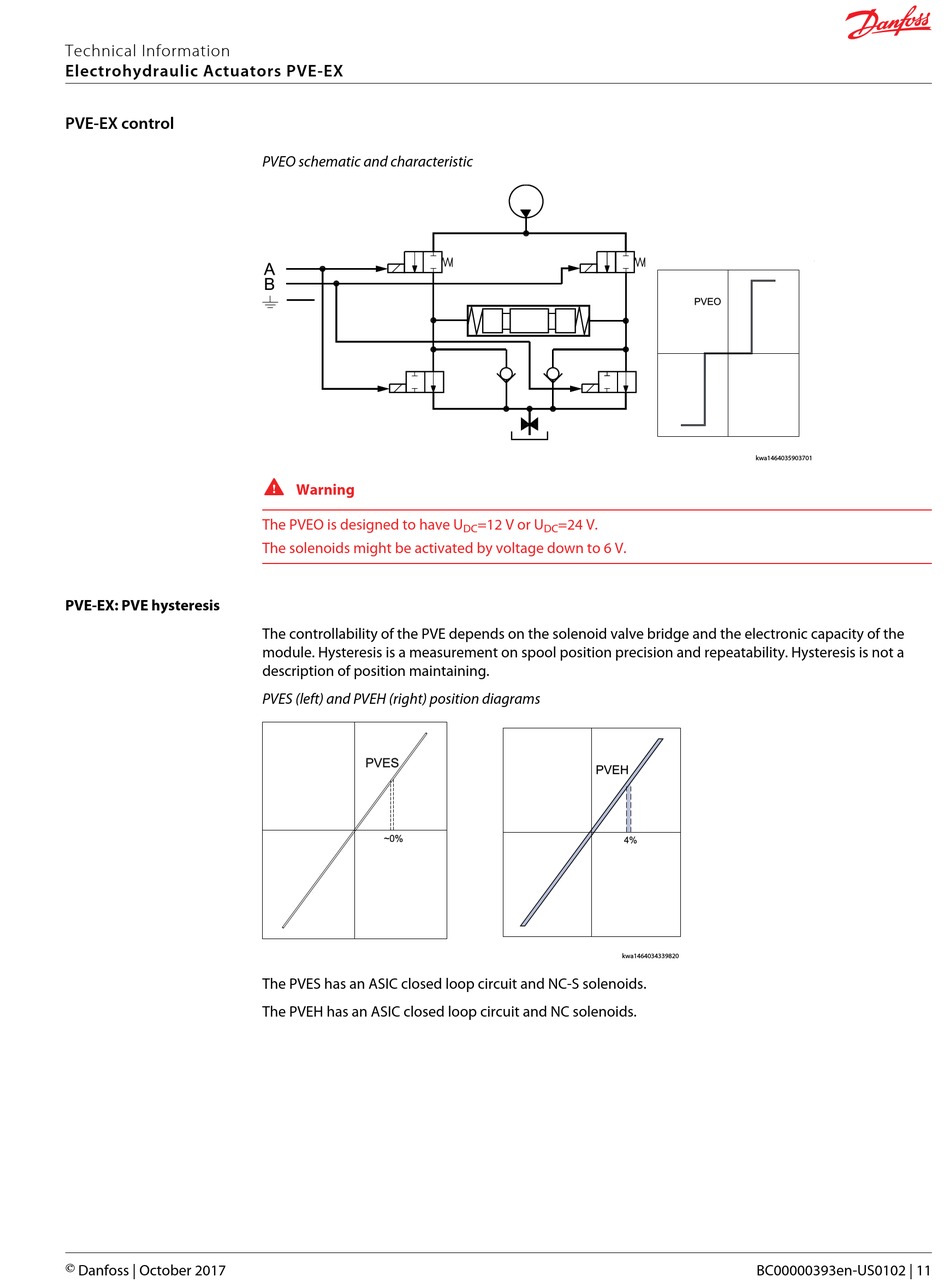

PVEO schematic and characteristic
W
Warning
The PVEO is designed to have U
The solenoids might be activated by voltage down to 6 V.
The controllability of the PVE depends on the solenoid valve bridge and the electronic capacity of the
module. Hysteresis is a measurement on spool position precision and repeatability. Hysteresis is not a
description of position maintaining.
PVES (left) and PVEH (right) position diagrams
The PVES has an ASIC closed loop circuit and NC-S solenoids.
The PVEH has an ASIC closed loop circuit and NC solenoids.
=12 V or U =24 V.
DC DC
kwa1464034339820
kwa1464035903701
BC00000393en-US0102 | 11
