Sunjoy Ashdale L-GZ137PST-1 Assembly Instruction Manual
  1. Manuals
  2. Brands
  3. Sunjoy Manuals
  4. Outdoor Furnishing
  5. Ashdale L-GZ137PST-1
  6. Assembly instruction manual
Sunjoy Ashdale L-GZ137PST-1 Assembly Instruction Manual

Sunjoy Ashdale L-GZ137PST-1 Assembly Instruction Manual

Hide thumbs

Advertisement

Available languages

Available languages

Quick Links

Download this manual
ASSEMBLY INSTRUCTION
SKU#088-0341 / Mfg Code# L-GZ137PST-1
Ashdale gazebo

Advertisement

loading
Need help?

Need help?

Do you have a question about the Ashdale L-GZ137PST-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sunjoy Ashdale L-GZ137PST-1

Summary of Contents for Sunjoy Ashdale L-GZ137PST-1

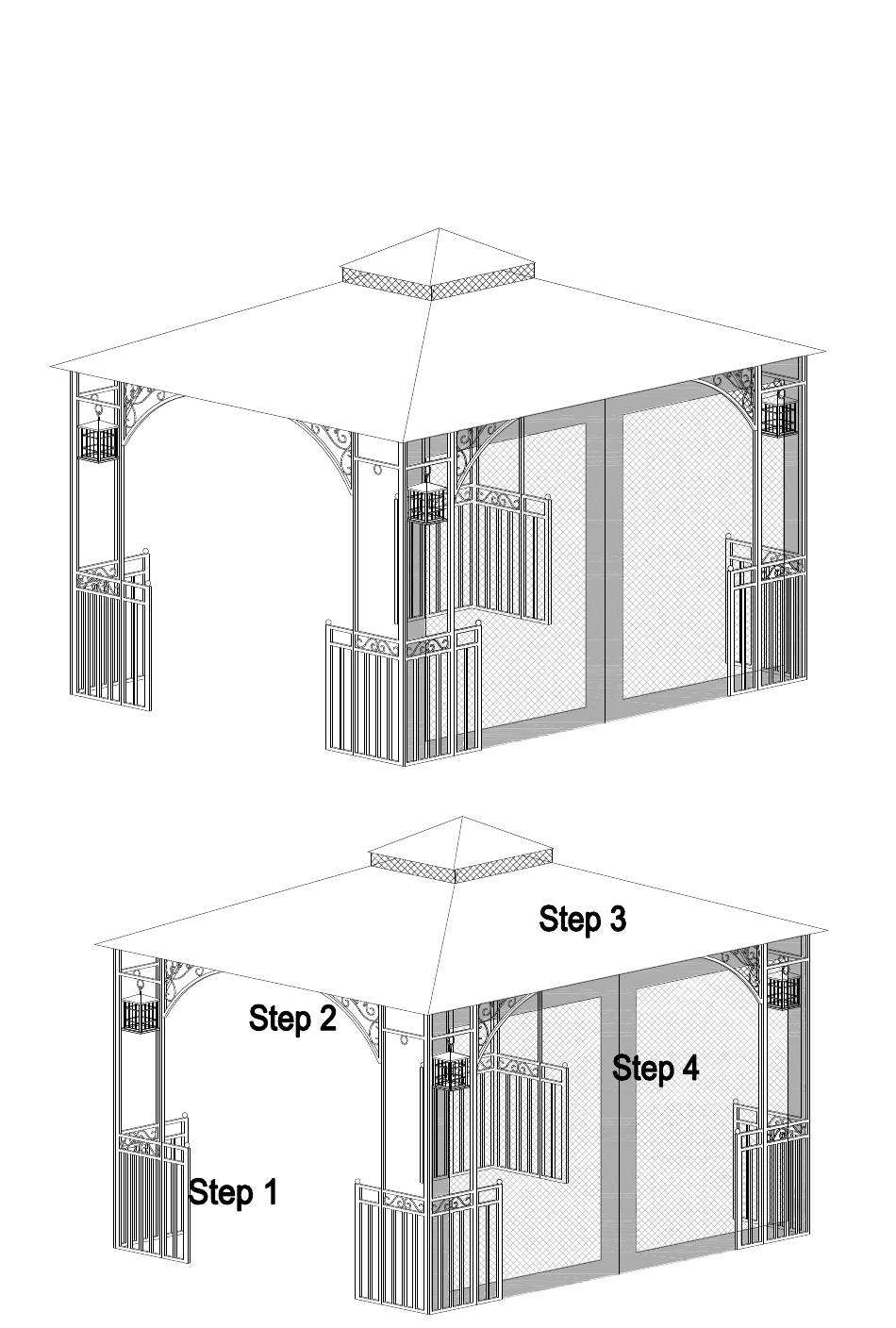

  • Page 1 ASSEMBLY INSTRUCTION SKU#088-0341 / Mfg Code# L-GZ137PST-1 Ashdale gazebo...

  • Page 2: Parts List

    Parts List screen screen small screen decor screen connector short bar long bar tilted top bar tilted top bar connector(1) tilted top bar connector(2) long top bar short top bar small top bar big top connector small top connector pothook short mosquito pipe long mosquito pipe lantern pothook...

  • Page 3: Hardware Pack

    Hardware Pack 1 M6X20(Bolt) 16 PCS TBZ00306020HQ M6 (Washer) 24 PCS TBZ10406HQ M6X35 (Bolt) 8 PCS TBZ00106035HQ M6 (wrench) 1 PC Fig.1: Attach the decor (C1) and the small screen (C). Fig.1-1: Connect the screen(C) and screen (A), (B) by using Bolt (AA) and washer (BB) Fig.2、Fig.3: Connect the screen B and screen A with Bolt (CC) and washer (BB) by using wrench (Z).
  • Page 4 Hardware Pack 2 M6 (washer) 48 PCS TBZ10406HQ M6X20 (Bolt) 16 PCS TBZ00106020HQ M6X15 (Bolt) 32 PCS TBZ00306015HQ Fig.4: Insert Screen connector (D) into long and short bar (E1),(E) separately, fasten with Bolt(DD) and washer(BB) Fig.5: Connect the screen A（B）and Screen connector (D),use Bolt (II) and washer (BB) to form a basic frame.
  • Page 5 Fig.6: Insert the tilted top bar connector F1 (F2) into the top screen corner. Fig.7、Fig.7-1: The pothook is fixed (L), insert four tilted top bar (F) into big top connector (J). Then insert the tilted top bar (F) into tilted top bar connector F1 (F2). At last, insert the long side top bar (G), short side top bar (H) into the big top connector (J) Fig.8: Use Bolt(EE), Washer(BB) and Nut (FF) to connect long side top bar(G), short side top bar(H) with short bar (E) and long bar (E1).
  • Page 6 Fig.11: Fix small canopy (R) and then spread the big canopy (Q), use plastic hang ring (HH) to connect the mosquito net(S) to mosquito pipe M (N). Fig.12: Fix the gazebo by using round nail (GG). Fig.13: Attach the lantern pothook (O) into the lantern (P), then hang the lanterns on the screens.

  • Page 7: Care And Maintenance

    WARNING 1. In order to reduce the risk of personal injury and damage to equipment, basic safety precautions should always be followed when assembling and using this product. Read all instructions carefully before assembly and use. 2. Some parts may contain sharp edges. Wear protective gloves if necessary. In order to ensure safe assembly, it is recommended that this product be assembled by at least two people.

  • Page 8: Instructions De Montage

    INSTRUCTIONS DE MONTAGE 088-0341-0 Abri de jardin Ashdale...
  • Page 9 Nomenclature Grille Grille Petite grille Boule décorative Raccord de grille Tube court Tube long Tube supérieur incliné Raccord du tube supérieur incliné (1) Raccord du tube supérieur incliné (2) Tube supérieur long Tube supérieur court Petit tube supérieur Raccord du grand toit Raccord du petit toit Crochet de suspension...
  • Page 10 Ensemble de piè ces de fixation 1 Boulon M6X20 16 pièces TBZ00306020HQ Rondelle M6 24 pièces TBZ10406HQ Boulon M6X35 8 pièces TBZ00106035HQ Clé M6 1 pièce Fig. 1 : Fixez une boule décorative (C1) à la petite grille (C). Fig. 1-1 : Fixez la grille (C) à la grille A (B) à l’aide de boulons (AA) et de rondelles (BB). Fig.
  • Page 11 Ensemble de piè ces de fixation 2 Rondelle M6 48 pièces TBZ10406HQ Boulon M6X20 16 pièces TBZ00106020HQ Boulon M6X15 32 pièces TBZ00306015HQ Fig. 4 : Insérez le raccord de grille (D) dans le tube long (E1) et le tube court (E) séparément et fixez- les à...
  • Page 12 Ensemble de piè ces de fixation 3 Rondelle M6 12 pièces TBZ10406HQ Boulon M6X35 8 pièces TBZ00306035HQ Écrou M6 8 pièces TBZ20106HQ Fig. 6 : Insérez le raccord du tube supérieur incliné F1 (F2) dans le coin supérieur de la grille. Fig.
  • Page 13 Ensemble de piè ces de fixation 4 Clou à tête bombée Φ8*180MM 16 pièces TBZ10608180HQ Anneau de plastique 44 pièces Peinture à retoucher 1 Pièce Fig. 11 : Fixez la petite toile (R) et étendez ensuite la grande toile (Q). Utilisez les anneaux de plastique (HH) pour assembler la moustiquaire (S) avec la tringle de moustiquaire M (N).
  • Page 14 ( ! ) AVERTISSEMENT 1. Afin d’éviter le risque de blessures et de dommage matériel, des mesures de sécurité élémentaires doivent être prises lors du montage et de l’utilisation de cet article. Lisez toutes les instructions attentivement avant le montage et l’utilisation. 2.
