- Page 1 TANDOOR - CE Speciality Ovens Gas-Fired, Round, Square and Barrel European Models TANDOOR 31" WS-GFT-31-CE TANDOOR 35" WS-GFT-35-CE BARREL TANDOOR WS-GFT-35-CUS-CE WOOD STONE CORPORATION 1801 W. Bakerview Rd. Tel 360.650.1111 Bellingham, WA 98226 USA Fax 360.650.1166 www.woodstone-corp.com DOC NO M0054.07...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Gas-Fired Tandoor CE Installation and Operation Manual TABLE OF CONTENTS � � � � � � � � � � � � � � � � � Tandoor CE � � � � � � � � � � � Cautions &... -
Page 3: Tandoor Ce

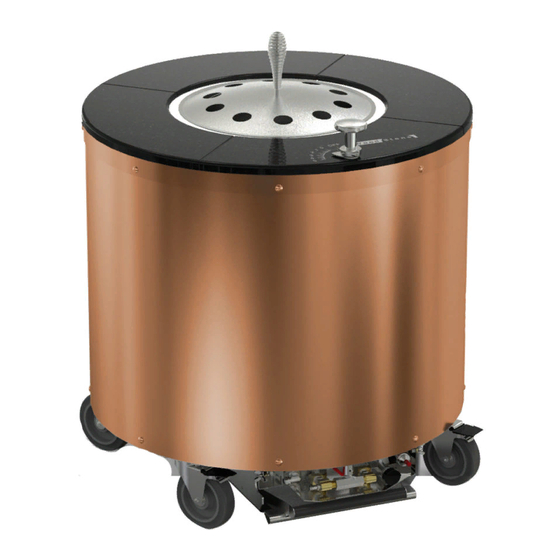

TANDOOR CE Gas-Fired Tandoor CE Installation and Operation Manual INSTALLATION AND OPERATION MANUAL FOR THE WOOD STONE TANDOOR ORIGINAL INSTRUCTIONS GAS-FIRED TANDOOR WS-GFT-31 (ROUND, SQUARE) WS-GFT-35 (ROUND, SQUARE) WS-GFT-35-CUS (BARREL) CE MODELS ADDITIONAL COPIES AVAILABLE UPON REQUEST Round model Barrel model... -
Page 4: Cautions & Warnings
CAUTIONS & WARNINGS Gas-Fired Tandoor CE Installation and Operation Manual INSTALLATION AND OPERATING INSTRUCTIONS FOR THE WOOD STONE TANDOOR GFT-31-(RND, SQR)-CE-(NG, LP), GFT-35-(RND, SQR, CUS)-CE-(NG, LP) RETAIN THIS MANUAL FOR FUTURE REFERENCE Additional copies of this manual at woodstone-corp�com� For prompt responses to service/maintenance questions, call your local distributor�... -
Page 5: Specifications
300mm Opening Opening ANY REPRODUCTION OR USE IN PART OR AS A WHOLE GAS INLET: 1/2" NPT 40,000 BTU, NG WITHOUT THE WRITTEN PERMISSION OF WOOD STONE IS 40,000 BTU, LP PROHIBITED \\woodstone.net\dfs\CAD\0 Pn\WS Top Level\WS-GFT-31_General_Arrangement-1.dft 21" 530mm UTILITY SPECIFICATIONS... -
Page 6: Gft-35-Ce
Opening 6 1/4" 160mm GAS INLET: 1/2" NPT ANY REPRODUCTION OR USE IN PART OR AS A WHOLE 40,000 BTU, NG WITHOUT THE WRITTEN PERMISSION OF WOOD STONE IS 40,000 BTU, LP PROHIBITED 24 3/4" \\woodstone.net\dfs\CAD\0 Pn\WS Top Level\WS-GFT-35_General_Arrangement-1.dft 630mm... -
Page 7: Gft-35-Cus-Ce (Barrel)
WITHOUT NOTICE. WITHOUT NOTICE. to the authority have jurisdiction� See Venting section GAS INLET: 3/4" NPT WITHOUT THE WRITTEN PERMISSION OF WOOD STONE IS GAS INLET: 3/4" NPT THE INFORMATION CONTAINED IN THIS DRAWING IS THE 40,000 BTU, NG 40,000 BTU, NG... -
Page 8: Clearances & Restraints
When non-combustible building materials contact the body of the Tandoor, the clearances to combustibles are transferred to those non-combustibles. INSTALLATION CLEARANCES The Wood Stone Square and Round Gas-Fired Tandoor must be Combustible construction overhanging installed with at least 25mm (1") side clearance to combustible the appliance should be protected in construction�... -
Page 9: Venting
The above statement taking precedence, Wood Stone Corporation recommends the following options: • This Wood Stone Tandoor must be vented as a Type A appliance (with no flue connection), designed to be installed under an exhaust hood (canopy)� The hood must be connected to a grease-rated duct system� The venting system must be designed and installed in accordance with all relevant codes pertaining to grease and smoke producing commercial cooking appliances�... -
Page 10: Gas Specifications
The Wood Stone gas-fired Tandoor is equipped with a 12�7mm (1/2") FBSPT female gas connection, located on the underside of the rear of the unit� Anchor points for the restraining means are provided on the underside of the Tandoor; these are holes punched in the rear portion of the drip/debris pan rails�... - Page 11 GAS SPECIFICATIONS Gas-Fired Tandoor CE Installation and Operation Manual NATURAL GAS (NG) Gas Supply and Pressure WS-GFT-CE-NG MODELS EN 437 Gas Group 2ELL Declared Input (kW) 11�7 11�7 11�7 11�7 10�5 Inlet Pressure (mbar) 20/25 Declared Pressure at Gas Valve Outlet (mbar) SCOPE OF APPROVALS G20 @ 20 mbar - I...
-
Page 12: Lower Flashing Install (Barrel)
LOWER FLASHING INSTALL (BARREL) Tandoor CE Installation and Operation Manual DO NOT LOWER STRIP FLASHING UNTIL TANDOOR IS LOCATED IN ITS FINAL INSTALLED POSITION DO NOT REMOVE PROTECTIVE TAPE FROM BOTTOM OF TANDOOR UNTIL STRIP FLASHING IS LOWERED Leveling the Tandoor Position Tandoor in its final installed position�... -
Page 13: Lighting Instructions
LIGHTING INSTRUCTIONS Gas-Fired Tandoor CE Installation and Operation Manual Plan view Rear view Temperature Control Knob Spark Control Igniter Knob Button Pilot PILOT Temperature Remove Control Knob Deflector Plate Grease/ before lighting. Debris Pan Gas Control Knob Spark Igniter Button (Red) PILOT LIGHTING PROCEDURE Tip: It is helpful to have a second person available to look into chamber to verify pilot has lit�... -
Page 14: Operation
Once the chamber is at the desired temperature, typically 620 °F–650 °F, remove the Lid completely for the cooking day� Temperature can be determined using the optional Fluke Hand Held IR Thermometer (see the Tools and Accessories section of the Wood Stone website)� Cooking Set the Temperature Control Knob to the cooking temperature range: 1.3–1.5�... -
Page 15: Cleaning & Maintenance
To remove debris from the chamber walls, first brush the walls with the optional In-Line Floor Brush (see the Tools and Accessories section of the Wood Stone website)� Use a moist towel (water only) to swirl around the chamber� Any debris which falls to the bottom of the chamber can be removed as described above�... - Page 16 Blank page M0054.07 JULY 2019...
-
Page 17: Limited Warranty
In the event of warranty claim or otherwise, the sole obligation of Wood Stone shall be the repair and/or replacement, at the option of Wood Stone, of the appliance or component or part thereof� Such repair or replacement shall be at the expense of Wood Stone with the exception of travel over 100 miles or two hours, overtime, and holiday charges which shall be at the expense of the purchaser�... - Page 18 Blank page M0054.07 JULY 2019...
- Page 19 Blank page M0054.07 JULY 2019...
- Page 20 WOOD STONE CORPORATION 1801 W. Bakerview Rd. Tel +1.360.650.1111 Bellingham, WA 98226 USA Fax +1.360.650.1166 www.woodstone-corp.com An ongoing program of product improvement may require us to change specifications without notice. M0054.07 JULY 2019...
