ASSEMBLY
11 11

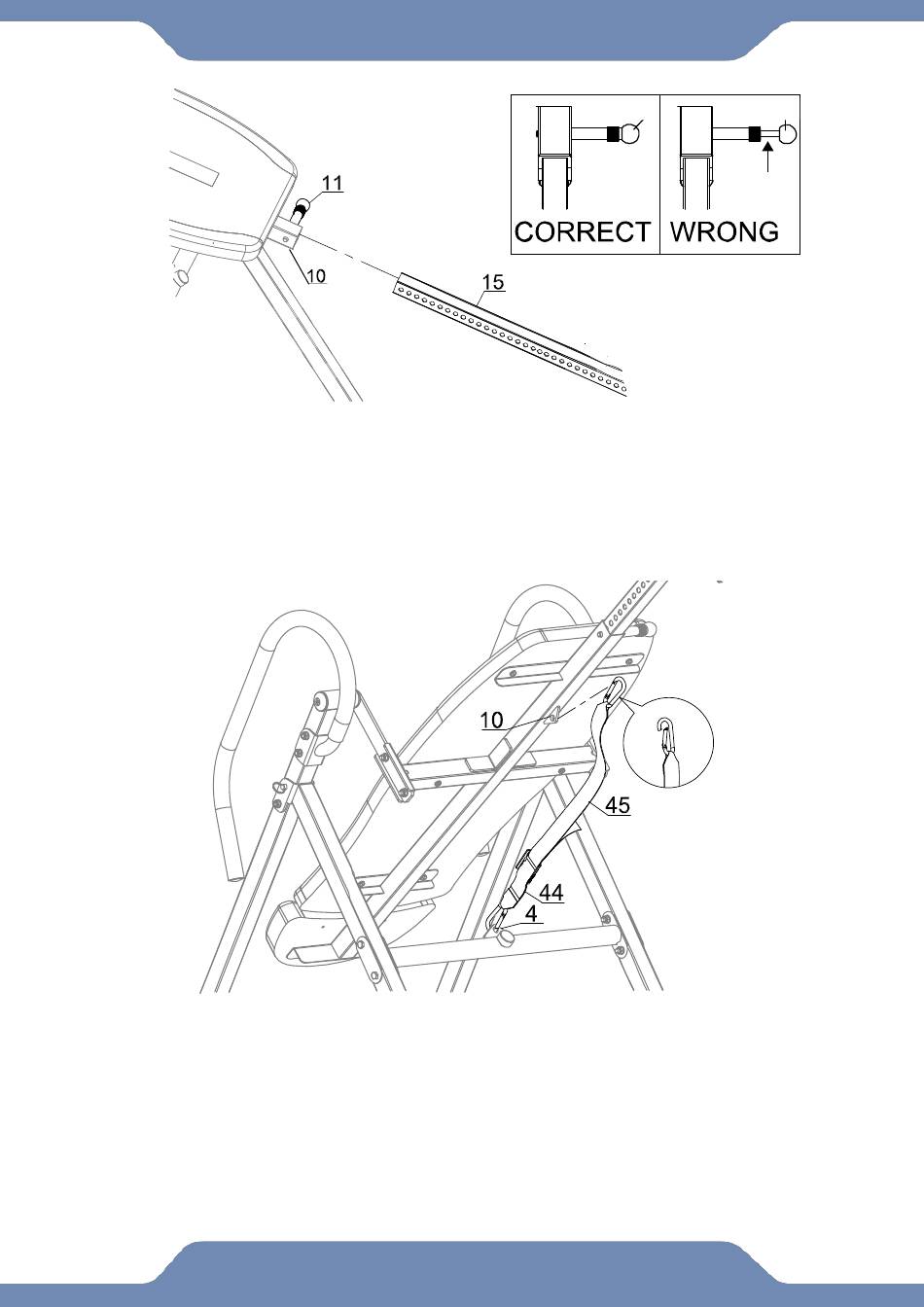

Fig. E
Step 9
9A. Installing the Adjustable Boom to the Backrest Frame:
Pull out and hold the Adjustable Boom Knob (11), and slide the Adjustable Boom (15) into the
bottom of the Backrest Frame (10). Slide the Adjustable Boom (15) upwards until the desired
height is visible below the Backrest Frame (10). To lock the Adjustable Boom (15) in place
release the Adjustable Boom Knob (11). Shift the Adjustable Boom (15) inwards until the
Adjustable Boom Knob (11) "POPS" down into the locked position. Make sure the Adjustable
Boom Knob (11) is fully inserted. See Fig. E.
Step 10
10A. Attaching the Nylon Straps
Attach the combined Long Nylon Strap (45) & Short Loop Strap (44) to the Backrest Frame
(10). This is done by hooking one end of the Safety Hooks on the Long Nylon Strap (45) to the
triangular tab on the underside of the Backrest Frame (10). Then hook the other end of the
Safety Hooks on the Short Nylon Strap (44) to the triangular tab on the Front Support Post
(4).
18
