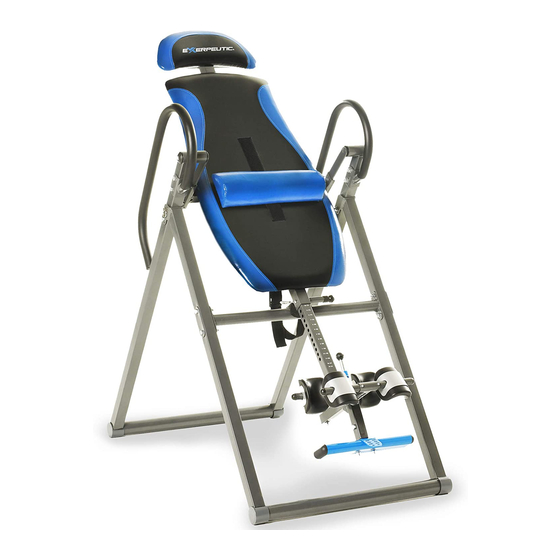

Exerpeutic Triple SureLock Inversion Table Owner's Manual
  1. Manuals
  2. Brands
  3. Exerpeutic Manuals
  4. Fitness Equipment
  5. Triple SureLock Inversion Table
  6. Owner's manual

Exerpeutic Triple SureLock Inversion Table Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

®
Triple SureLock
Inversion Table
OWNER'S MANUAL
4503.2-100319

Advertisement

Table of Contents
loading

Related Manuals for Exerpeutic Triple SureLock Inversion Table

Summary of Contents for Exerpeutic Triple SureLock Inversion Table

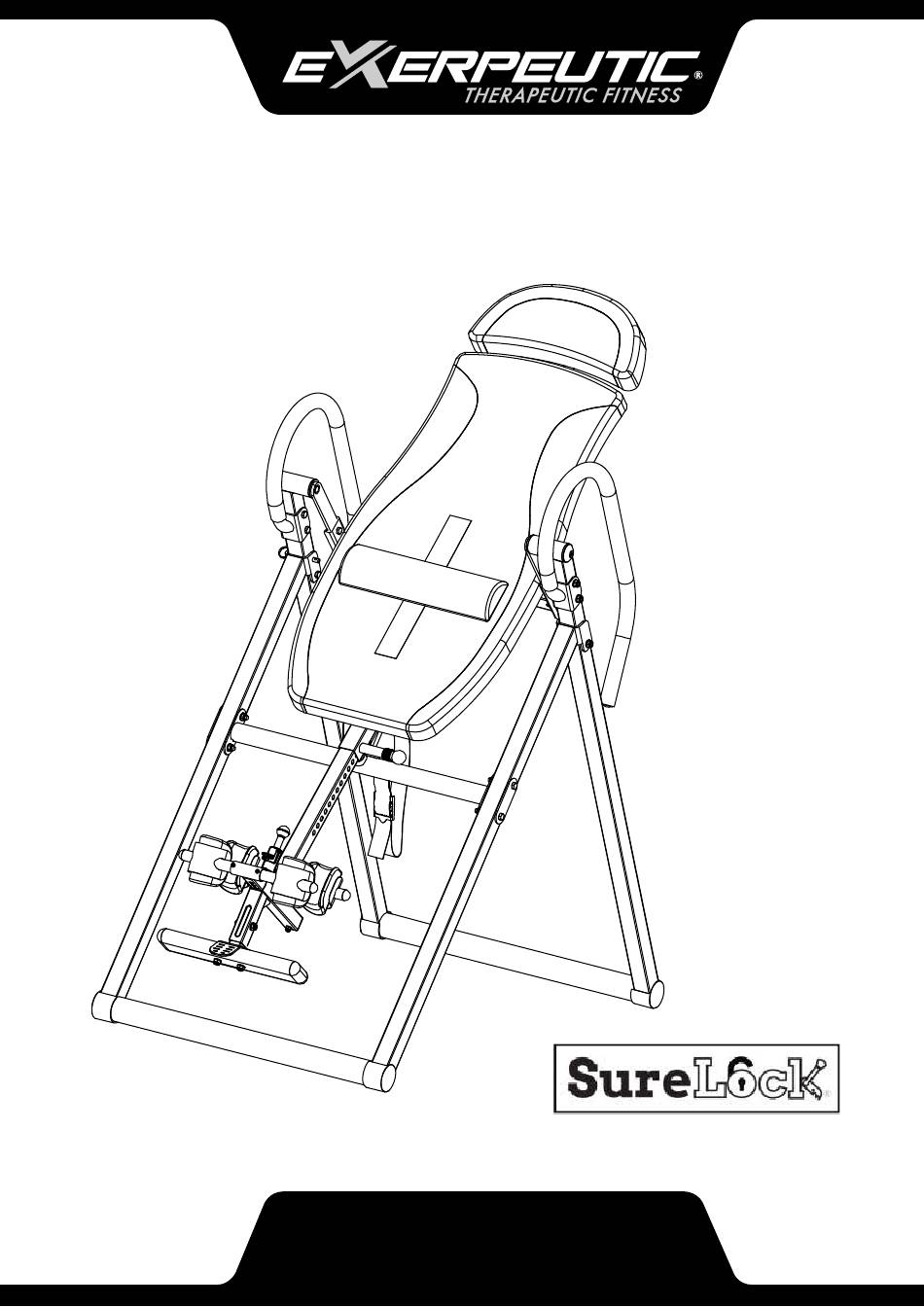

  • Page 1 ® Triple SureLock Inversion Table OWNER’S MANUAL 4503.2-100319...
  • Page 2 PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE. STOP and contact customer service if you have any questions regarding assembly or proper operation of the machine. Email us at: Service@paradigmhw.com Or call us at: 1-844-641-7921 Hours: 8:00 am to 5:00 pm (PST) Monday thru Friday...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SERVICE----------------------------------------------------------- 2 IMPORTANT SAFETY GUIDELINES------------------------ 3 LABEL PLACEMENT-------------------------------------------- 6 OVERVIEW DRAWING----------------------------------------- 7 HARDWARE & TOOLS PACK--------------------------------- 8 PARTS LIST-------------------------------------------------------- 9 ASSEMBLY--------------------------------------------------------- 10 OPERATION AND ADJUSTMENTS------------------------- 20 STORAGE---------------------------------------------------------- 28 WARRANTY-------------------------------------------------------- 29 PARTS REQUEST FORM-------------------------------------- 30...

  • Page 4: Service

    SERVICE IMPORTANT: FOR NORTH AMERICA ONLY For damaged or defective product, questions, replacement parts or any other service support, please contact our customer service department by the below methods: For The Best Service, please Email: service@paradigmhw.com Response Time: 1-2 Business Days Emailing us with the information above will be the best method to receive a response during peak business hours Website:...

  • Page 5: Important Safety Guidelines

    IMPORTANT SAFETY GUIDELINES Always check to make sure the ankle locking pin is fully engaged before each use. Make sure that the front and rear ankle clamps are secured tightly against your ankles to prevent from falling when the table inverts. WARNING: Failure to fully engage the locking pin could result in serious injury or possible death.
  • Page 6 IMPORTANT SAFETY GUIDELINES Read all instructions before using the Inversion Table. When using an Inversion table, basic precautions should always be followed, including the following WARNING - To reduce the risk of injury to persons: Make sure your equipment is correctly assembled before you use it. Be sure all screws, nuts, and bolts are tightened prior to use.
  • Page 7 IMPORTANT SAFETY GUIDELINES WARNING: - Risk of Personal Injury - Keep children under the age of 13 away from the machine while in use. WARNING: - Risk of Personal Injury – Keep body parts, hair, loose clothing, and jewelry clear of all moving parts. WARNING: - Risk of Personal Injury - Tilt-back slowly when inverting.

  • Page 8: Label Placement

    LABEL PLACEMENTS...

  • Page 9: Overview Drawing

    OVERVIEW DRAWING...

  • Page 10: Hardware & Tools Pack

    HARDWARE & TOOLS PACK...

  • Page 11: Parts List

    PARTS LIST Description Description Foot Bar 33 Rubber Heal Holder Right Front Post 34 Square Bushing Left Front Post 35 Rod Cap Front Support Post 36 Oval End Cap Metal Plate 37 Handlebar Right Rear Post 38 Foam Grip Left Rear Post 39 Round End Cap Plastic Spacer 40 Hex Bolt M4*8...

  • Page 12: Assembly

    ASSEMBLY Facing each other Tools: 13, 17mm Wrench 2PCS Step 1 Note: The parts are labeled with R and L decals to indicate the left and right sides. The left and right side are labeled as if you are on the inversion table. 1A.
  • Page 13 ASSEMBLY Facing each other Fig. A Step 2 2A. Installing the Foot Bar: Make sure the indented holes on the Foot Bar (1) are facing downward. See Fig. A. Attach a Foot Bar (1) onto both Left & Right Rear Post (7) & (6) with two Socket Hex Bolts (46). Attach the second Foot Bar (1) to the Left &...
  • Page 14 ASSEMBLY Tools: 13,17mm Wrench 6mm Allen Wrench 2PCS Step 3 Note: The parts are labeled with R and L decals to indicate the left and right sides. The left and right side are labeled as if you are on the inversion table. 3A.
  • Page 15 ASSEMBLY Tools: 13,17mm Wrench 2PCS These parts must be on same side when installing the backrest. Step 4 Fig. B Note: We recommend two people work together to install the Backrest Frame (10). Note: The Hex Bolts (51) should be installed from the inside as shown in the illustration above.
  • Page 16 ASSEMBLY Tools: 13,17mm Wrench 2PCS Step 5 Installing the Handle Bars: 5A. Attach the Handlebars (37) onto the Right and Left Rear Post (6 & 7) with two Hex Bolts (47), two Flat Washers (59), and two Nylon Nuts (61). Tighten the hardware with the two 13, 17mm Wrenches provided.
  • Page 17 ASSEMBLY Tool: 13,17mm Wrench 1 PCS Step 6 6A. Installing the Foot Bar: Align and secure the Foot Bar (18) into the bottom of the Lock Release (17) with two Carriage Bolts (54), two Flat Washers (59), and two Nylon Nuts (61). Tighten the hardware with the 13, 17mm Wrench provided.
  • Page 18 ASSEMBLY Tool: 13,17mm Wrench 2 PCS Step 7 7A. Installing the Rod for the Heel Holders: With both slots facing the Adjustable Instep Frame Knob (27), slide the Rear Ankle Rod (19) through the large round hole on the side of the Adjustable Boom (15). Secure the Rear Rod (19) on the Adjustable Boom (15) with one Hex Bolt (56), one Metal Bushing (20), one Nylon Nut (61), one Flat Washer (59).
  • Page 19 ASSEMBLY Tool: 3mm Allen Wrench Step 8 8A. Installing the Front Rod With both the slots facing the Adjustable Instep Frame Knob (27), slide the Front Ankle Rod (21) through the Adjustable Instep Frame (16). Secure the Front Ankle Rod (21) to the Adjustable Instep Frame (16) with two Hex Bolts (40).
  • Page 20 ASSEMBLY Fig. E Step 9 9A. Installing the Adjustable Boom to the Backrest Frame: Pull out and hold the Adjustable Boom Knob (11), and slide the Adjustable Boom (15) into the bottom of the Backrest Frame (10). Slide the Adjustable Boom (15) upwards until the desired height is visible below the Backrest Frame (10).
  • Page 21 ASSEMBLY Step 11 Install the Lumbar pad (14) on the Velcro strip on the Backrest (12). The Lumbar pad (14) can be used in a vertical or horizontal orientation along the Velcro strip. CORRECT: Assembly Completed 1. Review the image above to make sure you have correctly assembled the Inversion Table before using.
  • Page 22 ASSEMBLY Assembly Error Review WARNING : If your Inversion Table looks like either of these images, your inversion table has been misassembled and is unfit for use. Improper assembly could result in serious injury or death! WRONG: Demonstrates that the Table Bed has Demonstrates that the Pivot Arm have been assembled into the A-Frame been assembled upside down into the...

  • Page 23: Operation And Adjustments

    OPERATION AND ADJUSTMENTS ASSEMBLING THE INVERSION ANGLE CONTROL STRAP Attach the Long Nylon Strap (45) to the strap lock on the Short Loop Strap (44) by inserting the end of the strap up through the bottom of the strap lock. Then loop the Long Nylon Strap (45) over the Pre-assembled Short Loop Strap (44) and down through the strap lock on the Short Loop Strap (44).
  • Page 24 OPERATION AND ADJUSTMENTS GENERAL PRECAUTIONS 1. It is recommended that someone be with you while you are using this inversion table for the first few times. 2. Always wear shoes when using the inversion table. 3. Make sure that the Rubber Heel Holders (33) are both holding your feet securely. 4.
  • Page 25 OPERATION AND ADJUSTMENTS 6mm Allen Wrench HEADREST ADJUSTMENTS There are 2 installation options for the head rest. Choose the position that fits you best. Use the included 6mm Allen Wrench to adjust the hardware. Fig. E ADJUSTING THE BOOM The Adjustable Boom (15) can be moved to a variety of different positions in order to accommodate the height of the person using the inversion table.
  • Page 26 OPERATION AND ADJUSTMENTS HOW TO LOCK LEGS INTO ANKLE HOLDERS 1) Turn the Locking Pin Knob (27) 2) The locking bolt should be aligned with the counter-clockwise to unlock. vertical slot. 3) Step down on the Lock Release (17) and 4) Stand on the Foot Bar (18) with your ankles pull up on the Locking Pin Knob (27) at the between the Rubber Heel Holders (33).
  • Page 27 OPERATION AND ADJUSTMENTS NOTE: When stepping onto the Foot Bar (18) it will shift downward less than an inch. This is NORMAL; this is the auto locking system disengaging. Your body weight disengages the auto lock when standing on the Foot Bar (18). When inverting, your body weight will no longer be pressing down on the Foot Bar (18) and the auto lock will engage as you begin to dip below the horizontal angle.
  • Page 28 OPERATION AND ADJUSTMENTS BALANCING THE INVERSION TABLE The inversion table is like a very sensitively balanced fulcrum. It responds to very slight changes in weight distribution. So it is very important to make sure that the height is adjusted properly. To do this, mount the inversion table, lock your ankles into the heel holders, and lie back straight with your hands on the handlebars.
  • Page 29 OPERATION AND ADJUSTMENTS SUGGESTIONS FOR USE 1. Begin slowly: invert only 15~20 degrees to begin with. Stay inverted only as long as you are comfortable. Return upright slowly if you feel uncomfortable. 2. Make gradual changes: increase the angle only if it is comfortable. Increase the angles only a few degrees at a time.

  • Page 30: Storage

    STORAGE FOLDING THE INVERSION TABLE For your storage convenience, the inversion table can be folded down to place against a wall, under a bed, or in a storage area. Pull out the Ring Pin (49) from the holes on the Front Left Post (2) and Rear Left Post (6);...

  • Page 31: Warranty

    WARRANTY MANUFACTURER’S LIMITED WARRANTY Paradigm Health & Wellness warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with Paradigm’s Owner’s Manual.

  • Page 32: Parts Request Form

    PARTS REQUEST FORM Paradigm Health & Wellness, Inc. EMAIL THIS FORM WITH YOUR RECEIPT OF PURCHASE TO Service@paradigmhw.com * NAME:_____________________________________________________________________________________ ADDRESS:__________________________________________________________________________________ CITY:________________________ STATE:_____________ ZIP:_______________________________________ TELEPHONE: (Day)________________________________________________________________________ (Night)_______________________________________________________________________ SERIAL#:___________________________________________________________________________________ MODEL#:___________________________________________________________________________________ PURCHASE DATE:___________________________________________________________________________ PLACE OF PURCHASE:_______________________________________________________________________ PART # DESCRIPTION “YOUR ORDER WILL BE PROCESSED WITHIN 3 BUSINESS DAYS” This form can also be faxed to #: 626-810-2166...
