Harmony IP I/O8 Network Monitoring & Control User Manual
SYSTEM TAB
NOTE: This tab is not available in the NR model
In order for the IP I/O8 to communicate with other HARMONY devices on a particular network, a system needs
to be created. During this step, the HARMONY devices that are communicating are added in.
During the system setup, the schedule number that is to be used per device is to be added in during the
creation of the system.

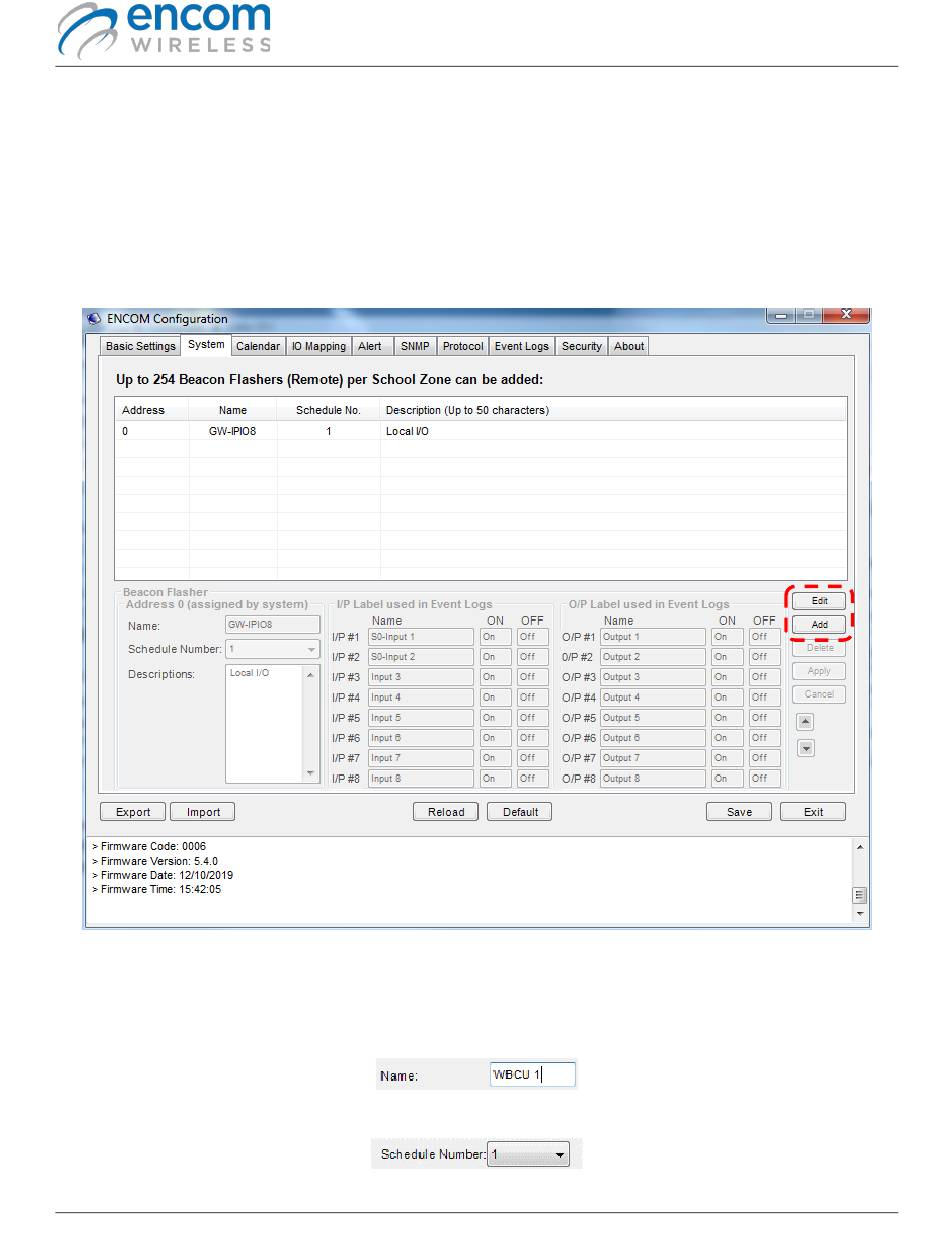

Refer to the image above. From the Beacon Flasher section of the System tab panel, click the Add button. This
will enable the section to be active allowing you to enter the details for a HARMONY device.
Type a name for the HARMONY device in the Name field.
Select the Schedule Number that is to be associated with the HARMONY device being entered.
18
