2. Using Relays as Input Connections with the I/O8 Radio

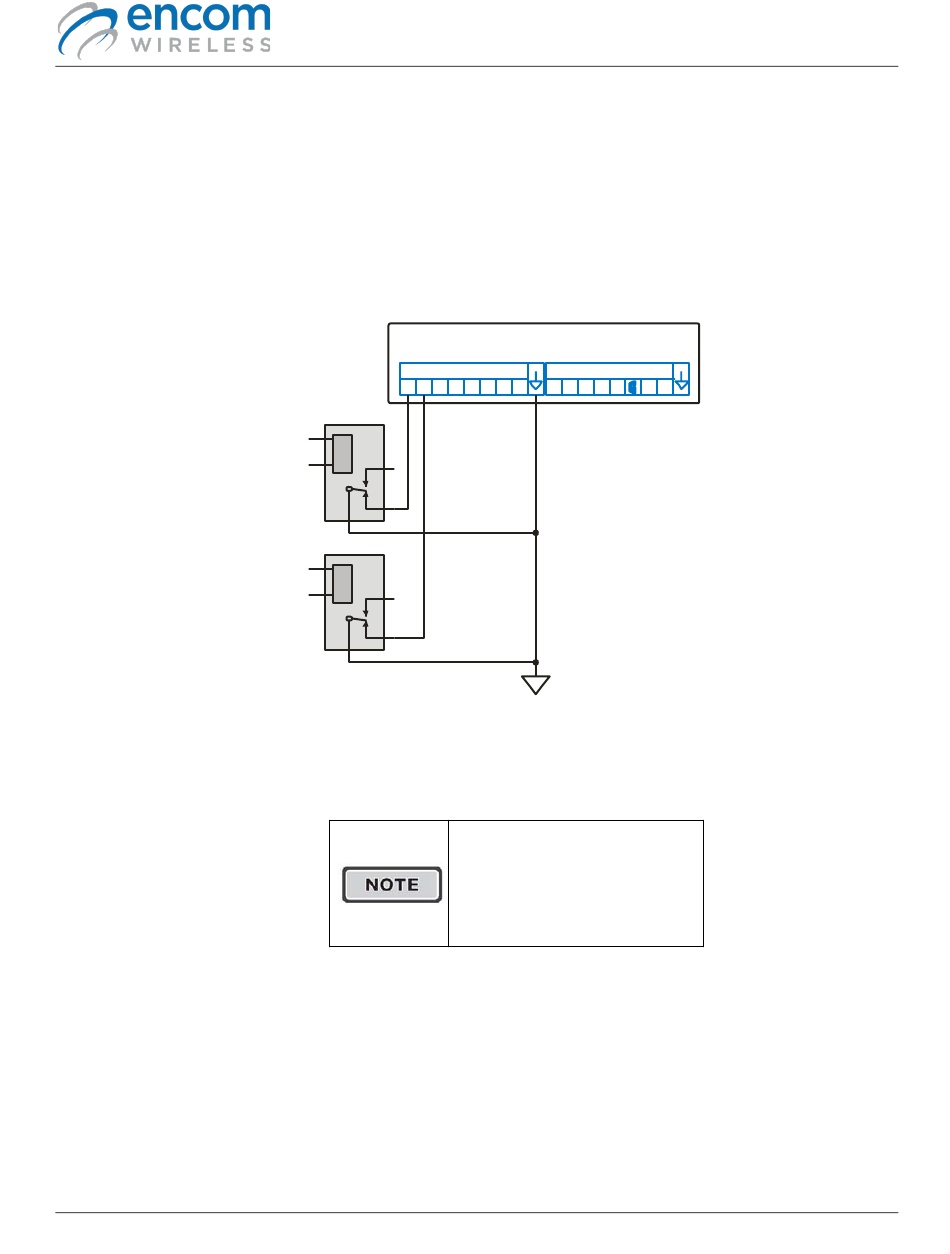

The following application outlines the connection of 2 relays to the HARMONY IP I/O8 Inputs.
When a relay is activated, the Open contacts of the relay close which connects the HARMONY IP I/O8 Input
to ground. This will activate the corresponding input.
The following diagram shows 120 VAC relays but any type of relay with dry contacts (no voltage applied
to the contacts) may be used.
HARMONY IP I/O8
INPUTS
1 2 3 4 5 6 7 8
120VAC
120VAC
Harmony IP I/O8 Network Monitoring & Control User Manual
OUTPUTS
1 2 3 4 5 7 8
Common Ground
for all equipment
inside cabinet
ONLY the relay dry contacts are
connected to the HARMONY IP
I/O8 inputs. The relay operating
voltage is not a concern.
