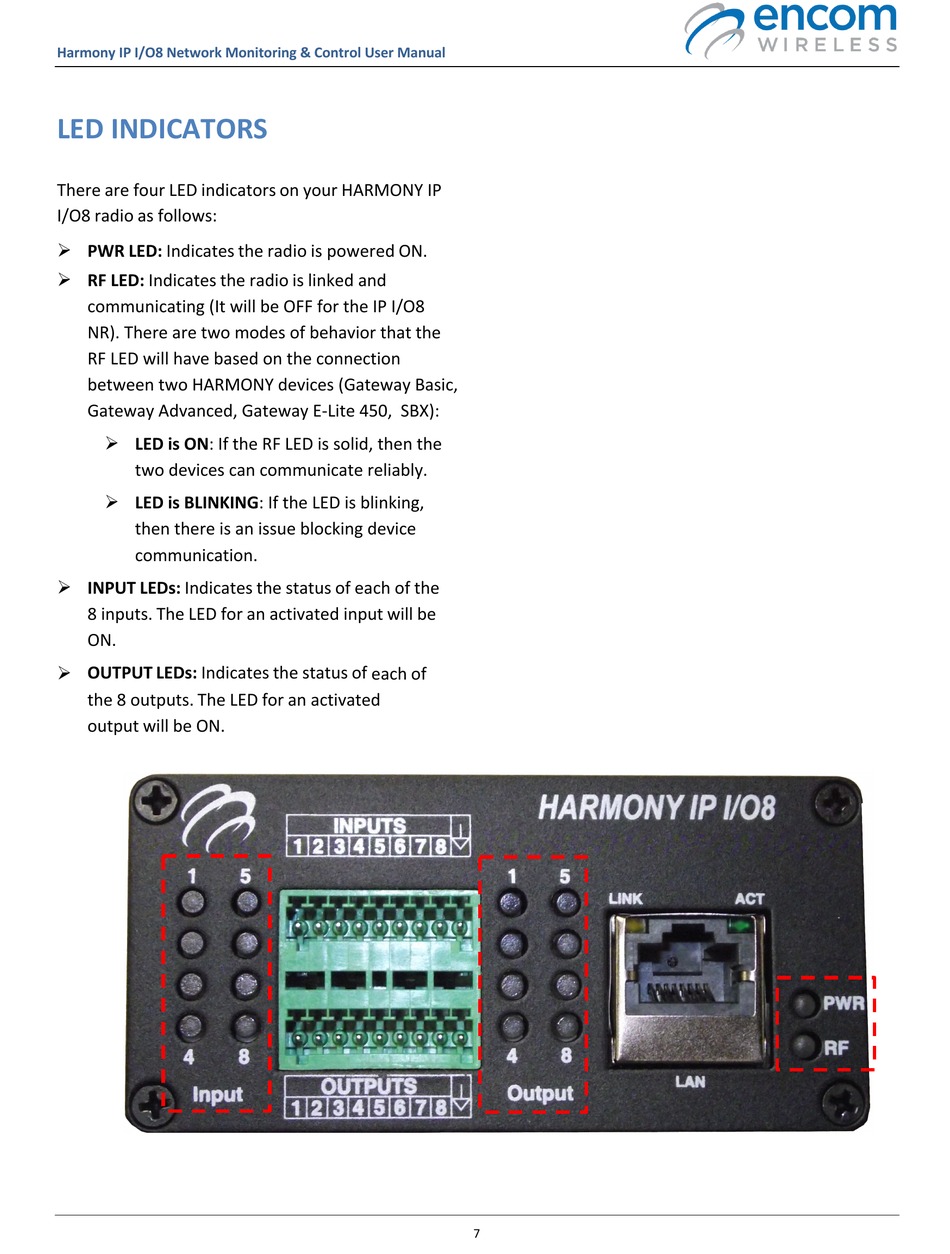

LED INDICATORS

There are four LED indicators on your HARMONY IP
I/O8 radio as follows:
Ø PWR LED: Indicates the radio is powered ON.
Ø RF LED: Indicates the radio is linked and
communicating (It will be OFF for the IP I/O8
NR). There are two modes of behavior that the
RF LED will have based on the connection
between two HARMONY devices (Gateway Basic,
Gateway Advanced, Gateway E-Lite 450, SBX):
Ø LED is ON: If the RF LED is solid, then the
two devices can communicate reliably.
Ø LED is BLINKING: If the LED is blinking,
then there is an issue blocking device
communication.
Ø INPUT LEDs: Indicates the status of each of the
8 inputs. The LED for an activated input will be
ON.
Ø OUTPUT LEDs: Indicates the status of each of
the 8 outputs. The LED for an activated
output will be ON.
