Harmony IP I/O8 Network Monitoring & Control User Manual

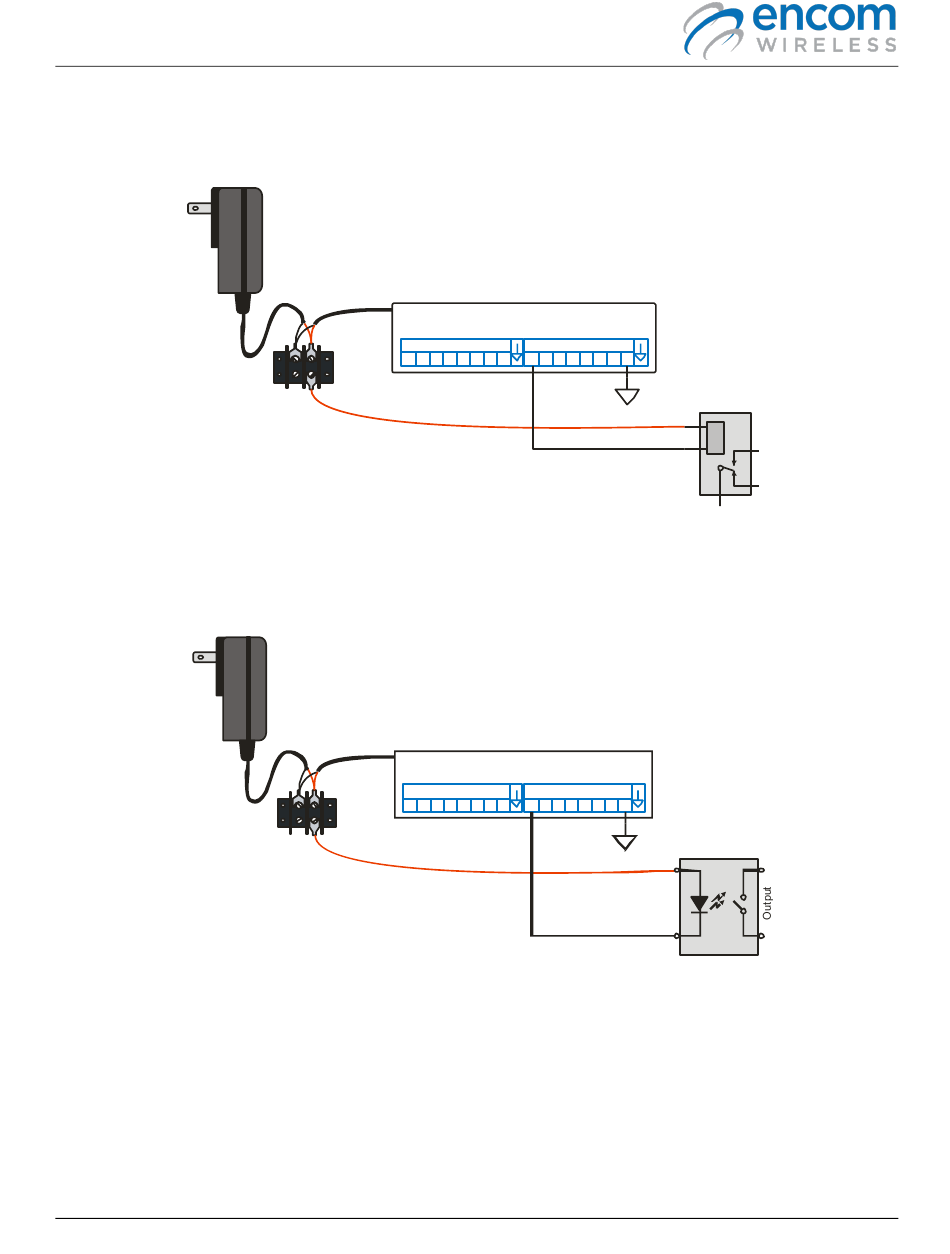

2. Using a Standard Coil Relay as an Output Connection with HARMONY IP I/O8
The following application shows how to connect a relay to your HARMONY IP I/O8 Output.
3. Using a Solid-State Relay (SSR) as an Output Connection with a HARMONY IP I/O8
The following application shows how to connect a Solid-State Relay to your HARMONY IP I/O8 Output.
Wall cube come
with the radio
HARMONY IP I/O8
INPUTS
1 2 3 4 5 6 7 8
Wall cube come
with the radio
HARMONY IP I/O8
INPUTS
1 2 3 4 5 6 7 8
OUTPUTS
1 2 3 4 5 6 7 8
OUTPUTS
1 2 3 4 5 6 7 8
31
Common Ground
for all equipment
inside cabinet
Common Ground
for all equipment
inside cabinet
SSR
