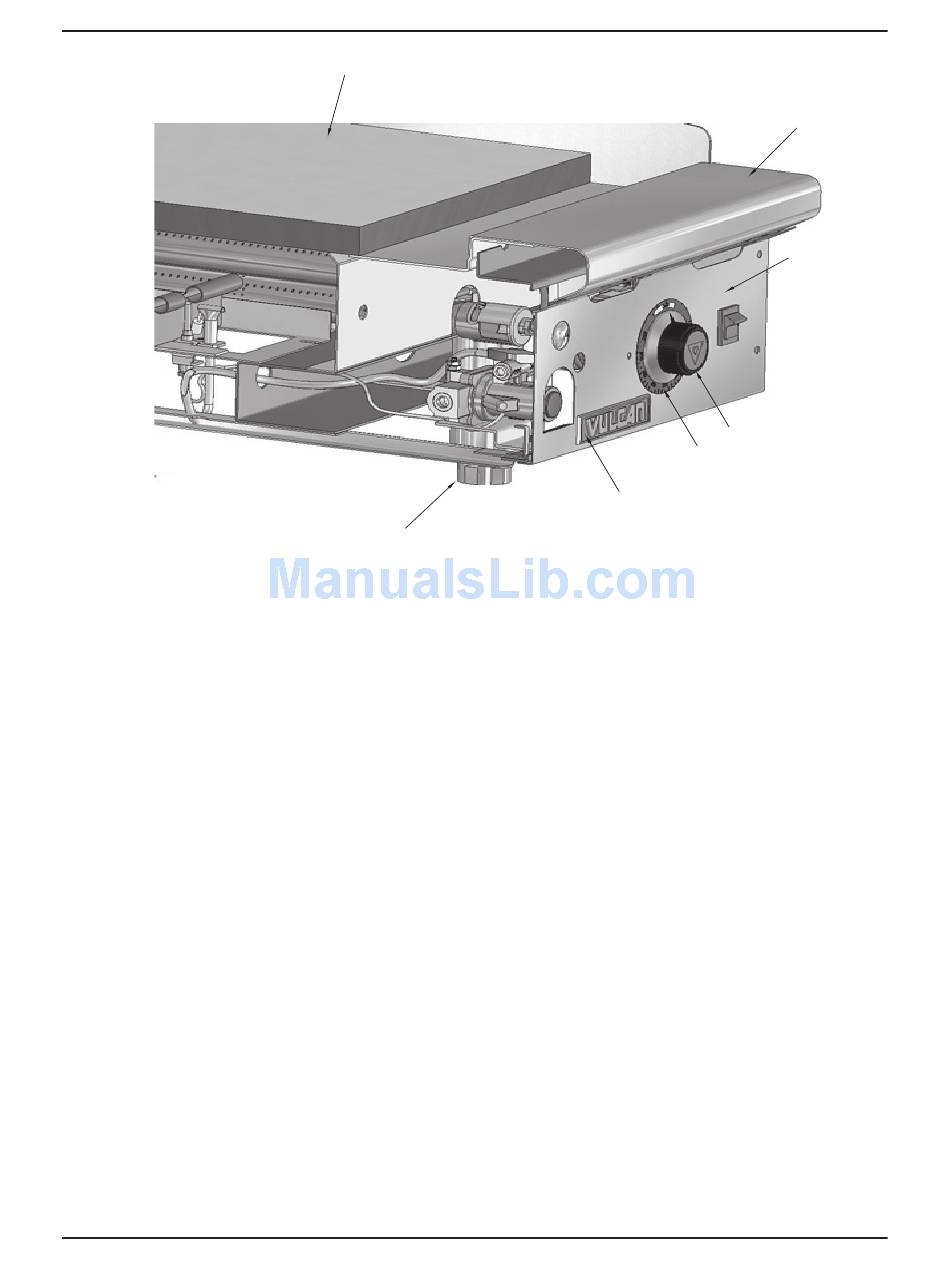

900RX AND MSA SERIES HEAVY DUTY GAS GRIDDLE REPLACEMENT PARTS
ILLUS.
PART NO.
1
00-788808-0000A Griddle Plate Weldment (24") ........................................ 1 ..............................................................
00-788828-000A2 Griddle Plate Weldment (36") ......................................................... 1 .............................................
00-788828-000A3 Griddle Plate Weldment (48") ......................................................................... 1 .............................
00-788828-000A4 Griddle Plate Weldment (60") ......................................................................................... 1 .............
00-788828-000A5 Griddle Plate Weldment (72") ......................................................................................................... 1
2
00-498058-0024A Bullnose (24") ................................................................ 1 ..............................................................
00-498058-0036A Bullnose (36") ................................................................................. 1 .............................................
00-498058-0048A Bullnose (48") ................................................................................................. 1 .............................
00-498058-0060A Bullnose (60") ................................................................................................................. 1 .............
00-498058-0072A Bullnose (72") ................................................................................................................................. 1
3
00-498060-00024 Front Panel (MSA) ......................................................... 1 ..............................................................
00-498056-00024 Front Panel (924RX) ...................................................... 1 ..............................................................
00-498060-00036 Front Panel (MSA) .......................................................................... 1 .............................................
00-498056-00036 Front Panel (924RX) ....................................................................... 1 .............................................
00-498060-00048 Front Panel (MSA) .......................................................................................... 1 .............................
00-498056-00048 Front Panel (924RX) ....................................................................................... 1 .............................
00-498060-00060 Front Panel (MSA) .......................................................................................................... 1 .............
00-498056-00060 Front Panel (924RX) ....................................................................................................... 1 .............
00-498060-00072 Front Panel (MSA) .......................................................................................................................... 1
00-498056-00072 Front Panel (924RX) ....................................................................................................................... 1
4
00-498041
5
00-498037-0000A Temperature Dial, Griddle (MSA/900RX) ...................... 2 ............. 3 ............ 4 ............ 5 ............ 6
6
00-417700-00003 Vulcan Logo .................................................................. 1 ............. 1 ............ 1 ............ 1 ............ 1
7
00-723532
1
7
GRIDDLES & PANELS
NAME OF PART
Knob (Vulcan) ............................................................... 2 ............. 3 ............ 4 ............ 5 ............ 6
6" Legs .......................................................................... 4 ............. 4 ............ 4 ............ 4 ............ 4
6
24"
- 2 -
2
3
4
5
AMT.
36"
48"
60"
72"
