INSTALLATION & OPERATION MANUAL

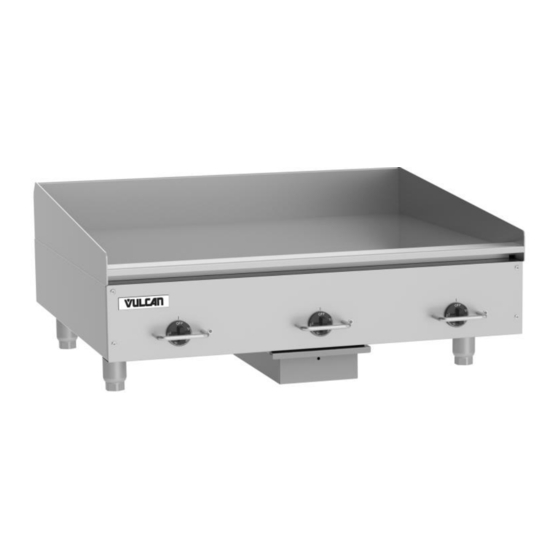

HEAVY DUTY ELECTRIC GRIDDLES
For additional information on Vulcan or to locate an authorized parts and
service provider in your area, visit our website at www.vulcanequipment.com
©ITW Food Equipment Group, LLC
3600 North Point Blvd.
Baltimore, MD 21222
RRE36E
MODELS
RRE24E
RRE36E
RRE48E
RETAIN THIS MANUAL FOR FUTURE USE
FORM F-47656 (10-15)
Advertisement
Table of Contents
Related Manuals for Vulcan-Hart RRE24E
Summary of Contents for Vulcan-Hart RRE24E
- Page 1 INSTALLATION & OPERATION MANUAL HEAVY DUTY ELECTRIC GRIDDLES MODELS RRE24E RRE36E RRE48E RRE36E For additional information on Vulcan or to locate an authorized parts and service provider in your area, visit our website at www.vulcanequipment.com RETAIN THIS MANUAL FOR FUTURE USE ©ITW Food Equipment Group, LLC...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INSTALLATION……………………………………………………………………………………… Installation Codes And Standards…………………………………………………………… Unpacking………………………………………………………………………………………… Leg Assembly……………………………………………………………………………………. Leveling…………………………………………………………………………………………… Location…………………………………………………………………………………………… Electrical Connections…………………………………………………………………………. Phase Wiring Connections……………………………………………………………………. Electrical Data…………………………………………………………………………………… OPERATION………………………………………………………………………………………….. Before First Use…………………………………………………………………………………. Seasoning The Griddle………………………………………………………… ……………… Controls…………………………………………………………………………………………… Using The Griddle………………………………………………………………………………. Zone Cooking……..……………………………………………………………………………. Cleaning The Griddle…………………………………………………………………………... Rapid Recovery™ Griddle Plate…..…………………………………………………………. SHUTDOW N ………………..……………………………………………..…………………………... -
Page 3: Installation
INSTALLATION, OPERATION AND CARE OF HEAVY DUTY ELECTRIC GRIDDLES GENERAL Heavy Duty Electric Griddles are produced with quality workmanship and materials. Proper installation, usage and maintenance of your griddle will result in many years of satisfactory performance. Thoroughly read this entire manual and carefully follow all of the instructions provided. -
Page 4: Leg Assembly
LEG ASSEMBLY Attach the legs to the body by threading the exposed leg stud into the threaded holes located on the underside of the unit. Tighten each leg so that the top face of the leg is pressed firmly against the body bottom . Do not operate griddle without legs or integrated stand as damage will occur. -
Page 5: Phase Wiring Connections
Phase Wiring Connections RRE24E 208,240 & 480 VAC 3-PHASE WIRING CONNECTIONS: 1. CONNECT WIRE #5 TO “L1” 2. CONNECT WIRE #6 & #11 TO “L2” 3. CONNECT WIRE #10 TO “L3” 208 & 240 VAC 1-PHASE WIRING CONNECTIONS: 1. CONNECT WIRE #5 & #10 TO “L1”... -
Page 6: Electrical Data
NOMINAL AMPS PER LINE WIRE CONN. MODEL NUMBER CONN. KW PER PHASE 3 PHASE 1 PHASE PER CONN.* 208 VOLT 240 VOLT 480 VOLT CONN VOLT VOLT RRE24E 10.8 10.8 22.5 45.0 22.5 19.5 39.0 19.5 19.5 51.9 45.0 RRE36E 16.2... -
Page 7: Controls
CONTROLS Each thermostat independently controls a 12” wide griddle section. When each thermostat is turned ON, the corresponding red indicator light will illuminate to indicate that the elements are on for that section. When the griddle plate reaches the desired temperature set point, the elements will be turned off for that section and the indicator light will go off. -
Page 8: Cleaning The Griddle
RRE48E ZONE 1 ZONE 2 ZONE 3 ZONE 4 (300°F) (350°F) (350°F) (400°F) PRODUCT PRODUCT PRODUCT Sausage Steak (Rare) Pancakes Omelet Eggs (Hard Fried) Stir Fry French Toast Hash Browns Eggs (Scrambled) Vegetables Bacon Canadian Bacon Burger (W ell Done) Salmon Eggs (Sunny Side Up) Steak (W ell Done) -
Page 9: Rapid Recovery™ Griddle Plate
Do not use a water-jet to clean the griddle as this can cause damage to internal electrical components. The Rapid Recovery™ griddle plate is a composite material which is engineered to provide a high heat transfer rate to the food. The top surface is stainless steel and can be scored or dented by careless use of a spatula or scraper. -
Page 10: Shutdow N
SHUTDOWN OF GRIDDLE 1. Turn all thermostats to the OFF position. This will shut down the griddle completely. EXTENDED SHUTDOWN 1. Turn all thermostats to the OFF position. 2. Shut off the main electrical supply. 3. Apply a heavy coat of vegetable oil over the griddle plate to inhibit rust. MAINTENANCE The griddle and its parts are hot. -
Page 11: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSES Heat does not come on 1. Problem with thermostats. (Call for service) when the temperature 2. Problem with heating elements. (Call for service) controller is turned on 3. Main power supply disconnected. (Call for service) Fat appears to smoke 1. -
Page 12: Accessory Installation
ACCESSORY INSTALLATION The griddle and its parts are hot. Use care when operating, cleaning or servicing the griddle. SIDE VIEW... - Page 13 SIDE VIEW FRONT VIEW...
- Page 14 NOTES...
